25408 E - Toro 36" Boom, Trencher for Pro Sneak 360 and 365 Vibratory Plow BOOM ASSEMBLY Parts Diagram

36" Boom, Trencher for Pro Sneak 360 and 365 Vibratory Plow

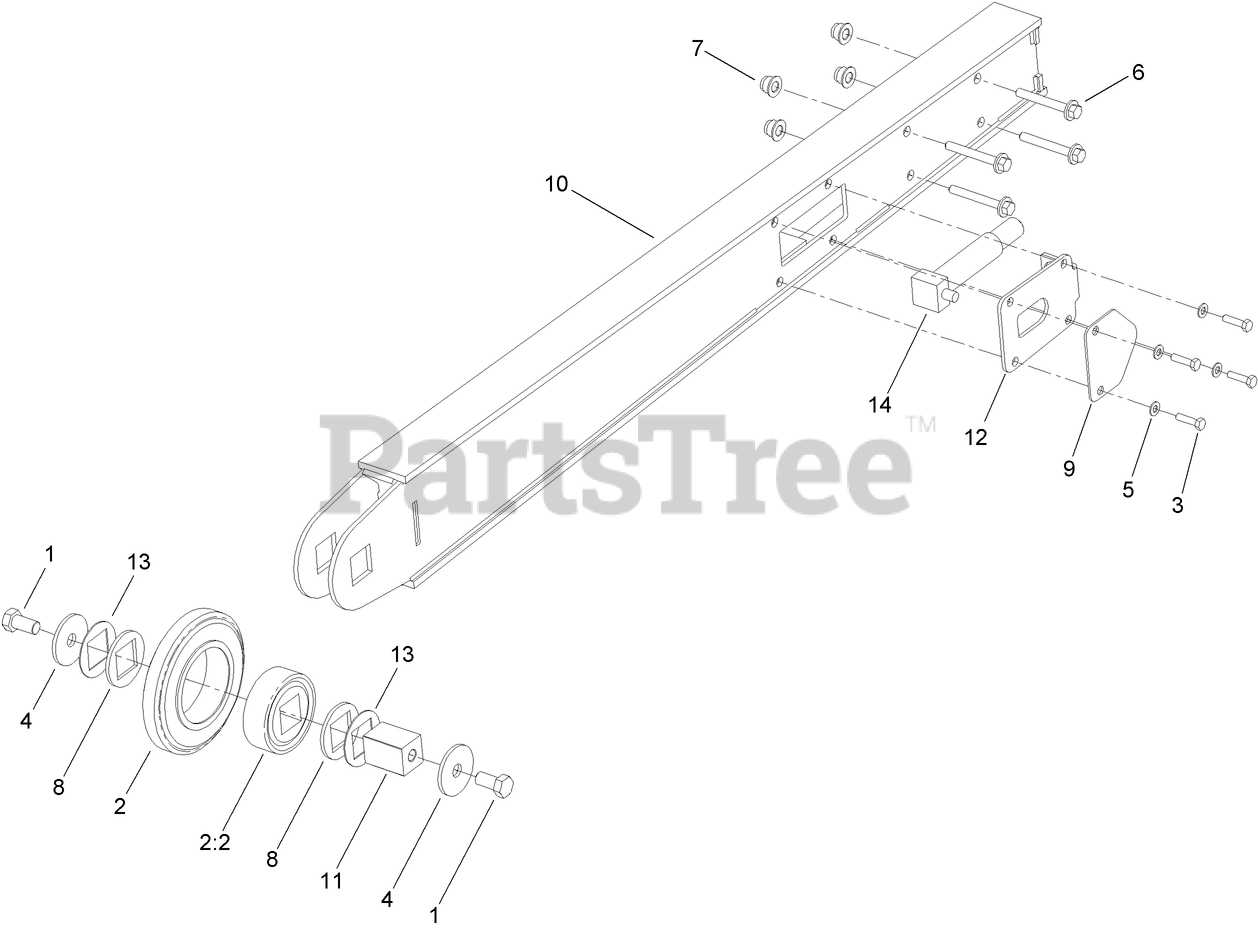

BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1658

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

2

Toro 127-1070

IDLER ASM (BOOM END)

$1282.99

$

Usually ships in 3-6 days

0

2:2

Toro AUH747444

BEARING

$104.99

$

Usually ships in 3-6 days

0

3

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

4

Toro AU496-81025

WASHER

$27.99

$

Usually ships in 3-6 days

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 33106-080

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

7

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

8

Toro AU100700

WASHER

$14.99

$

Usually ships in 3-6 days

0

9

Toro AU103950-03

PLATE-COVER

$64.99

$

Usually ships in 3-6 days

0

10

Toro AU104412-03

BOOM

$1488.99

$

Usually ships in 3-6 days

0

11

Toro AU107321-03

MOUNT-SHAFT, IDLER

$310.99

$

Usually ships in 3-6 days

0

12

Toro AU107322-03

PLATE-PISTON KEEPER

$307.99

$

Usually ships in 3-6 days

0

13

Toro AUH117598

WASHER

$28.99

$

Usually ships in 3-6 days

0

14

Toro AUH563254

PISTON-ADJ
(Superseded to AUH563254-03)

$175.99

$

Usually ships in 3-6 days

0
