25418 E - Toro Hydra Borer, Pro Sneak 360 Vibratory Plow MOUNT AND DRIVE ASSEMBLY Parts Diagram

Hydra Borer, Pro Sneak 360 Vibratory Plow

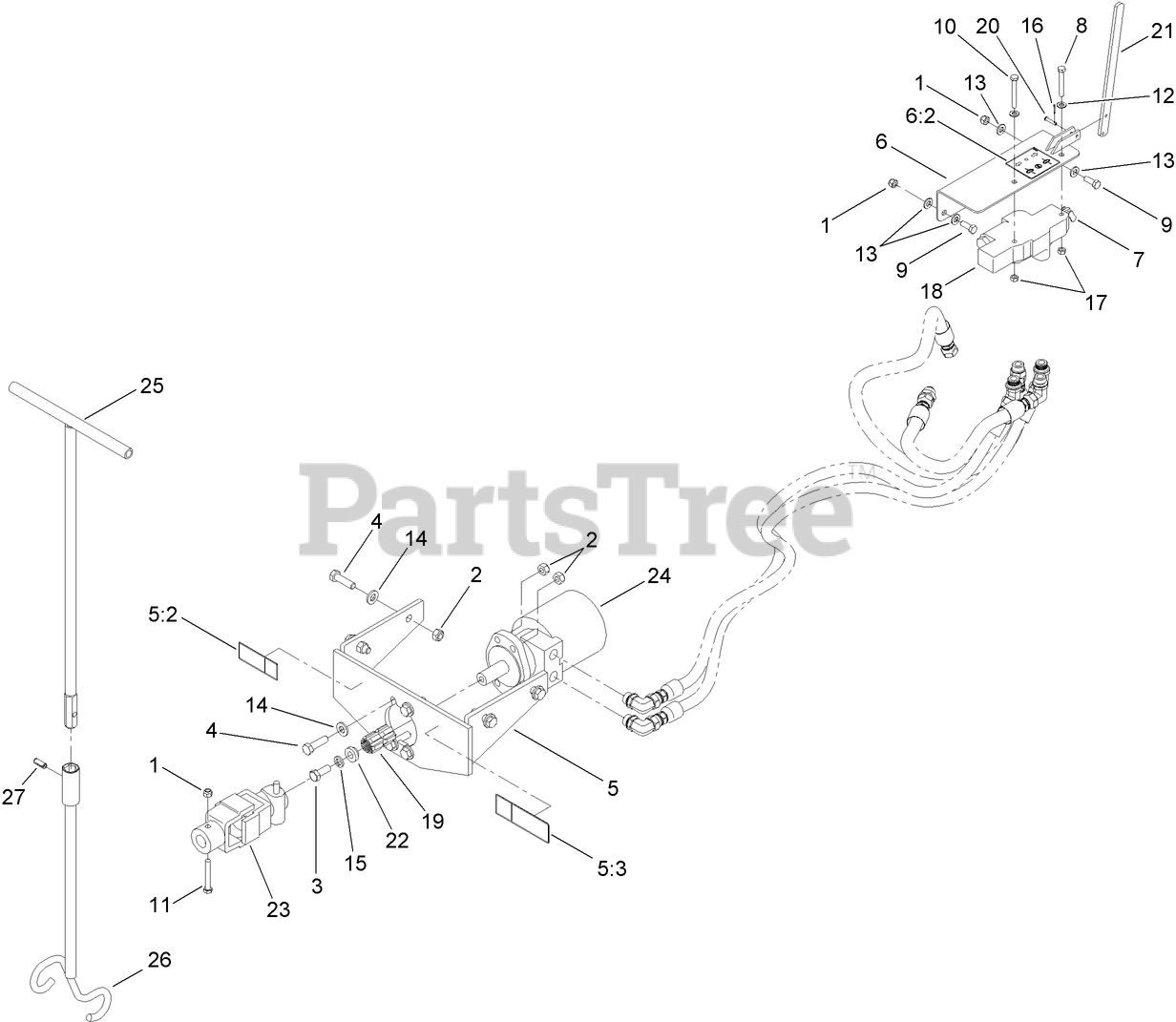

MOUNT AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

2

Toro 97-1206

LOCKNUT

$1.49

$

Usually ships in 3-6 days

0

3

Toro 106-0378

SCREW-HH

$4.99

$

In Stock, Qty 5

0

4

Toro 121-1524

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

5

Toro 127-1042

MOUNT ASM

$291.99

$

Usually ships in 3-6 days

0

5:2

Toro 125-6671

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

5:3

Toro 125-6681

DECAL-DANGER, ENTANGLEMENT

$

$

Currently unavailable

6

Toro 127-1043

BRACKET ASM

$157.99

$

Usually ships in 3-6 days

0

6:2

Toro 125-8488

DECAL-HYDRABORE DIRECTION

$30.99

$

Usually ships in 3-6 days

0

7

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$7.99

$

Usually ships in 3-6 days

0

8

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU426-640

SCREW-HH
(Superseded to 323-47)

$5.49

$

In Stock, only 2 left!

0

12

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

18

Toro AU107110A1

SINGLE SPOOL VALVE ASM

$1807.99

$

Usually ships in 3-6 days

0

19

Toro AUH312314

ADAPTER

$279.99

$

Usually ships in 3-6 days

0

20

Toro AUH35279

PIN-CLEVIS

$49.99

$

Usually ships in 3-6 days

0

21

Toro AUH377325

LEVER-VALVE
(Superseded to AUH377325-03)

$78.99

$

Usually ships in 3-6 days

0

22

Toro AUH435886

RETAINER-ADAPTER

$69.99

$

Usually ships in 3-6 days

0

23

Toro AUH511113

U-JOINT ASM
(Superseded to AUH511113-03)

$357.99

$

Usually ships in 3-6 days

0

24

Toro AUH673156

HYD MOTOR ASM

$1957.99

$

Usually ships in 3-6 days

0

25

Toro 106-7740-03

HANDLE-TOOL, GUIDE

$370.99

$

Usually ships in 3-6 days

0

26

Toro 104-5988-03

TOOL-GUIDE, ROD

$355.99

$

Usually ships in 3-6 days

0

27

Toro 32121-41

PIN-ROLL

$7.99

$

Usually ships in 3-6 days

0
