25430 C (RT 600) - Toro Trencher (SN: 315000501 - 315999999) (2015) GROUND DRIVE CONTROL ASSEMBLY Parts Diagram

Trencher

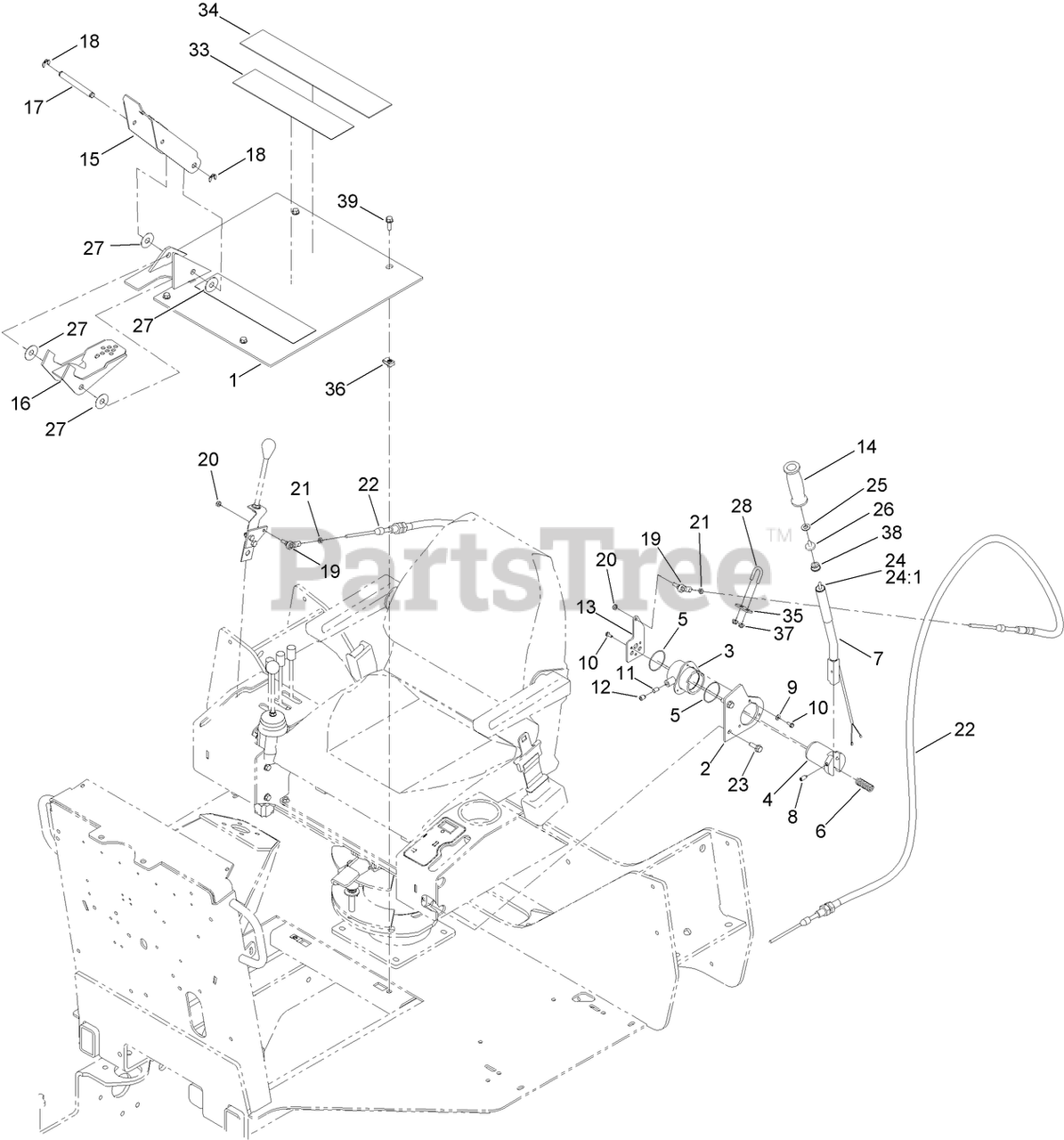

GROUND DRIVE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro AU125532-03

PLATE-FLOOR

$

$

Currently unavailable

2

Toro AU125349-03

PLATE-GUSSET

$

$

Currently unavailable

3

Toro AUH674569

MOUNT

$

$

Currently unavailable

4

Toro AU136779A1

SHAFT

$456.99

$

Usually ships in 3-6 days

0

5

Toro AUS5625

O-RING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH438122

SPRING-Locking

$53.99

$

Usually ships in 3-6 days

0

7

Toro AU125311

HANDLE

$

$

Currently unavailable

8

Toro AUH438152

SCREW-Set

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

11

Toro AUH438119

PLUG-FRICTION

$28.99

$

Usually ships in 3-6 days

0

12

Toro AUH438151

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

13

Toro AU125310-03

PLATE-CONTROL

$

$

Currently unavailable

14

Toro AUD128268

GRIP-Handle

$8.49

$

Usually ships in 3-6 days

0

15

Toro AU107152A1-03

PEDAL-TOE

$

$

Currently unavailable

16

Toro AU107153A1-03

PEDAL-HEEL

$

$

Currently unavailable

17

Toro AU107156A1

PIN-Pedal

$99.99

$

Usually ships in 3-6 days

0

18

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

19

Toro AUH358374

ROD END-FEMALE

$24.99

$

Usually ships in 3-6 days

0

20

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 18

0

21

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

22

Toro AU102691A1

GROUND DRIVE CONTROL CABLE ASM

$142.99

$

Usually ships in 3-6 days

0

23

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

24

Toro AUH675066

ON/OFF TOGGLE SWITCH ASM

$

$

Currently unavailable

24:1

Toro AUH438667

SWITCH-TOGGLE

$

$

Currently unavailable

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro AU116400A1

BOOT-SWITCH, TOGGLE

$17.99

$

Usually ships in 3-6 days

0

27

Toro AU126572

WASHER

$

$

Currently unavailable

28

Toro AUH166421

BOLT-U

$10.99

$

Usually ships in 3-6 days

0

33

Toro 127-1297

STRIP-ANTI SKID

$

$

Currently unavailable

34

Toro 127-1298

STRIP-ANTI SKID

$

$

Currently unavailable

35

Toro AUH373779

SPACER

$9.99

$

Usually ships in 3-6 days

0

36

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

37

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

38

Toro AUH439229

BUSHING

$

$

Currently unavailable

39

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0
