25430 C (RT 600) - Toro Trencher (SN: 315000501 - 315999999) (2015) GROUND DRIVE LINKAGE ASSEMBLY Parts Diagram

Trencher

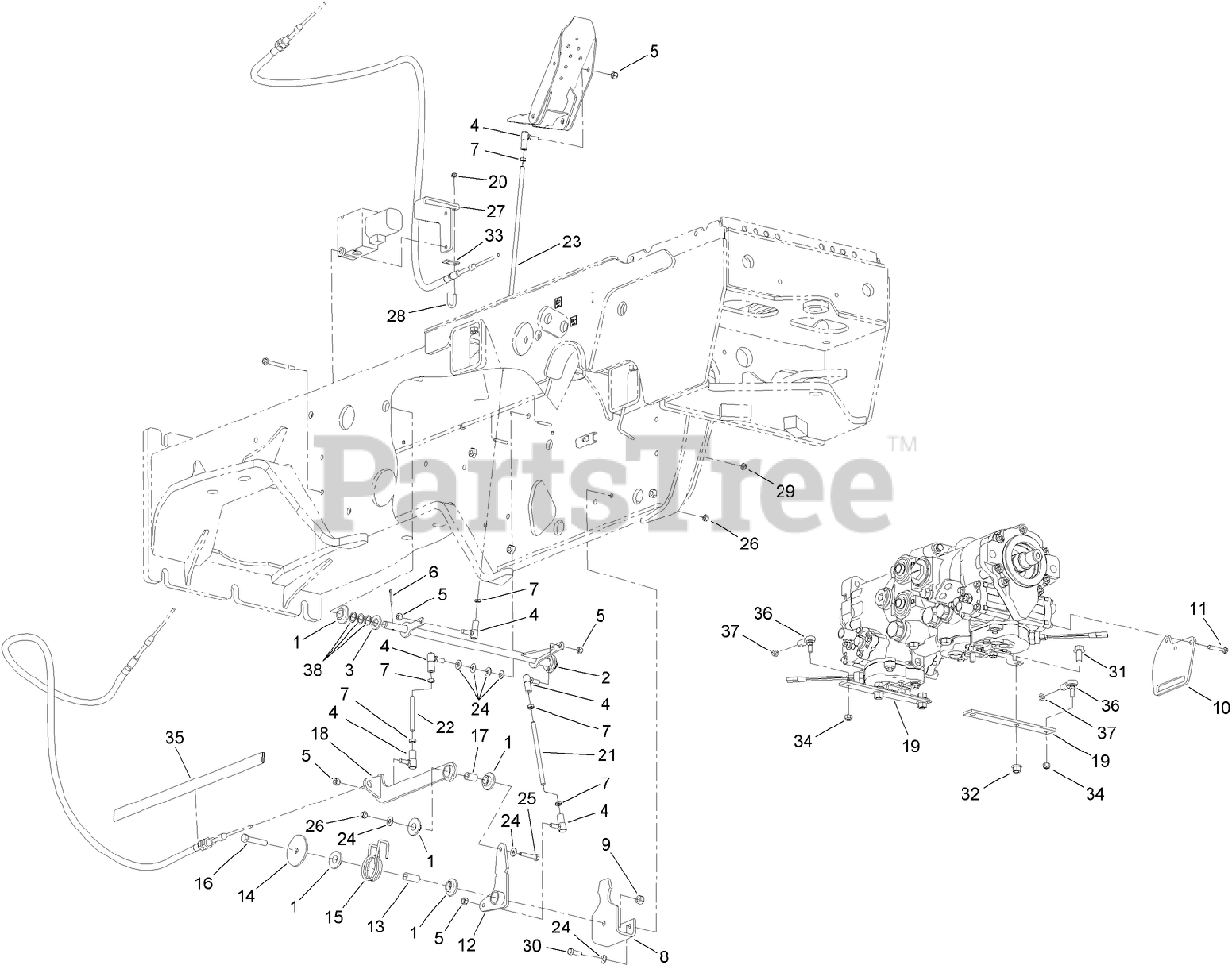

GROUND DRIVE LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro AUD128616

BUSHING-INSERT, PLASTIC

$29.99

$

Usually ships in 3-6 days

0

2

Toro AU125307-03

SHAFT-CONTROL

$

$

Currently unavailable

3

Toro AU495-11081

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AUD38296

JOINT-BALL
(Superseded to 94-7572)

$36.99

$

In Stock, only 4 left!

0

5

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

7

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

8

Toro AU106411A1-03

CHANNEL-MOUNTING, BELLCRANK

$

$

Currently unavailable

9

Toro 97-1206

LOCKNUT

$1.99

$

Usually ships in 3-6 days

0

10

Toro AU126576-03

STOP-LEVER, PUMP

$

$

Currently unavailable

11

Toro AU326-424

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU125320

PIVOT-BELLCRANK

$

$

Currently unavailable

13

Toro AUH435694

SPACER

$48.99

$

Usually ships in 3-6 days

0

14

Toro AUH436215

WASHER-Special

$14.99

$

Usually ships in 3-6 days

0

15

Toro AUH436303

SPRING

$86.99

$

Usually ships in 3-6 days

0

16

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

17

Toro AUH439075

SPACER-PIVOT, BELLCRANK

$32.99

$

Usually ships in 3-6 days

0

18

Toro AU125318

LINK-MOUNTING, CABLE

$

$

Currently unavailable

19

Toro AUH437601-03

LEVER-CONTROL, PUMP

$

$

Currently unavailable

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro AU125576

ROD-Linkage

$

$

Currently unavailable

22

Toro AUH436588

ROD-Linkage

$22.99

$

Usually ships in 3-6 days

0

23

Toro AU125321

ROD-Control

$

$

Currently unavailable

24

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-32

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

26

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

27

Toro AU125908-03

PLATE-MOUNT

$

$

Currently unavailable

28

Toro AUH166421

BOLT-U

$10.99

$

Usually ships in 3-6 days

0

29

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

31

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

32

Toro 32128-36

NUT-HF

$2.49

$

Usually ships in 3-6 days

0

33

Toro AUH373779

SPACER

$9.99

$

Usually ships in 3-6 days

0

34

Toro 3296-3

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

35

Toro 127-1226

SLEEVE-PROTECTIVE

$

$

Currently unavailable

36

Toro AUH358374

ROD END-FEMALE

$24.99

$

Usually ships in 3-6 days

0

37

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

38

Toro 115-7210

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0
