25430 (RT 600) - Toro Trencher (SN: 314000001 - 314999999) (2014) INSTRUMENT PANEL ELECTRICAL ASSEMBLY Parts Diagram

Trencher

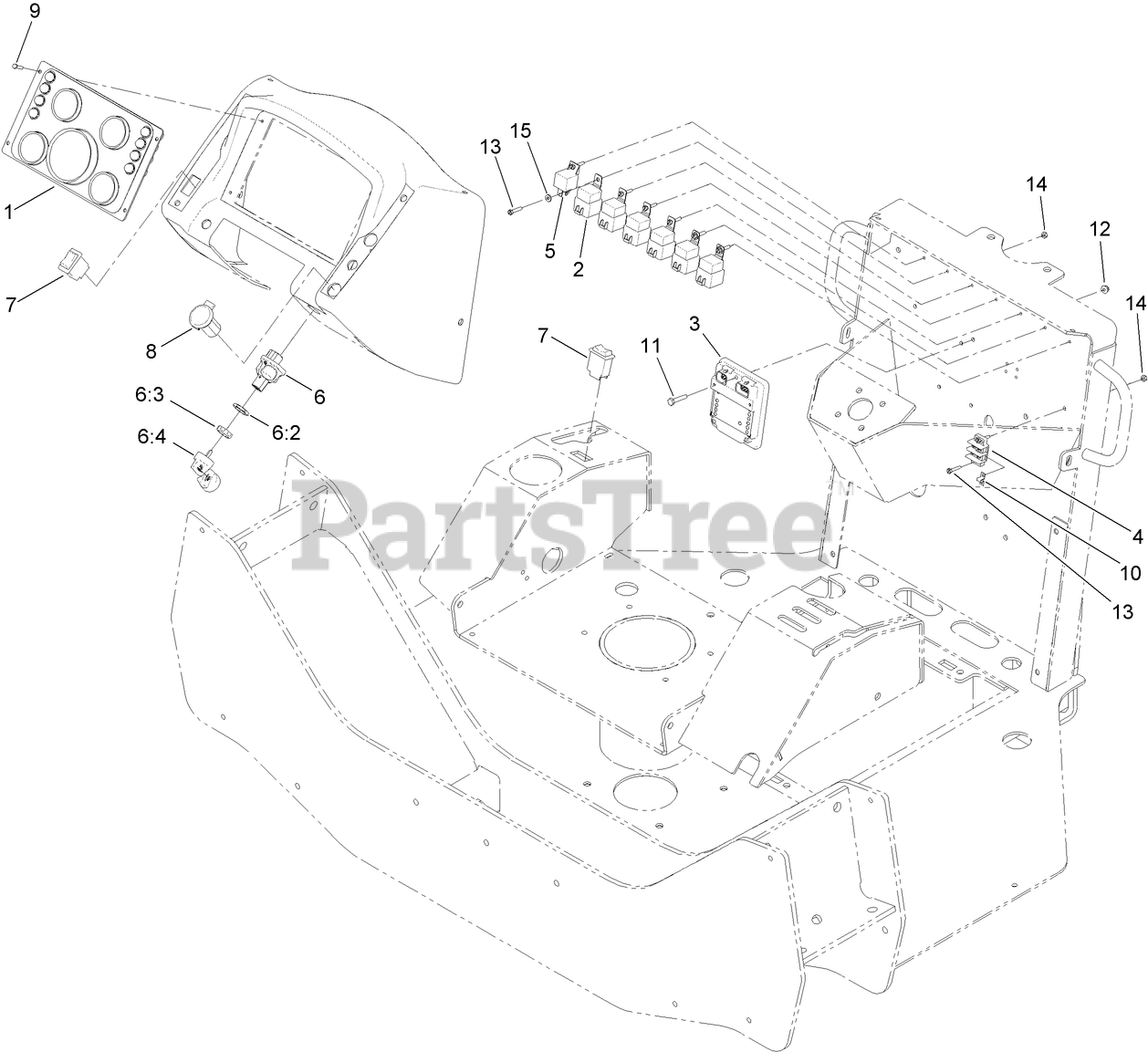

INSTRUMENT PANEL ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro AU125255

INSTRUMENT PANEL ASM

$

$

Currently unavailable

2

Toro 99-7430

RELAY

$26.99

$

In Stock, only 2 left!

0

3

Toro 106-9277

MODULE-CONTROL, STANDARD

$730.99

$

Usually ships in 3-6 days

0

4

Toro 42862

BLOCK-TERMINAL, GROUND

$33.99

$

Usually ships in 3-6 days

0

5

Toro 99-7435

RELAY-POWER

$49.99

$

In Stock, only 2 left!

0

6

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 1 left!

0

6:2

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

6:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.49

$

Usually ships in 0 days

0

6:4

Toro 121-5162

IGNITION KEY SET

$36.99

$

In Stock, only 2 left!

0

7

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

$

$

Currently unavailable

8

Toro AU22000121

RECEPTICAL-12V DC
(Superseded to 109-9376)

$54.99

$

Usually ships in 3-6 days

0

9

Toro AU463-11012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 42863

STRIP-JUMPER

$4.49

$

Usually ships in 3-6 days

0

11

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
