25430 (RT 600) - Toro Trencher (SN: 314000001 - 314999999) (2014) ROPS AND PLATFORM ASSEMBLY Parts Diagram

Trencher

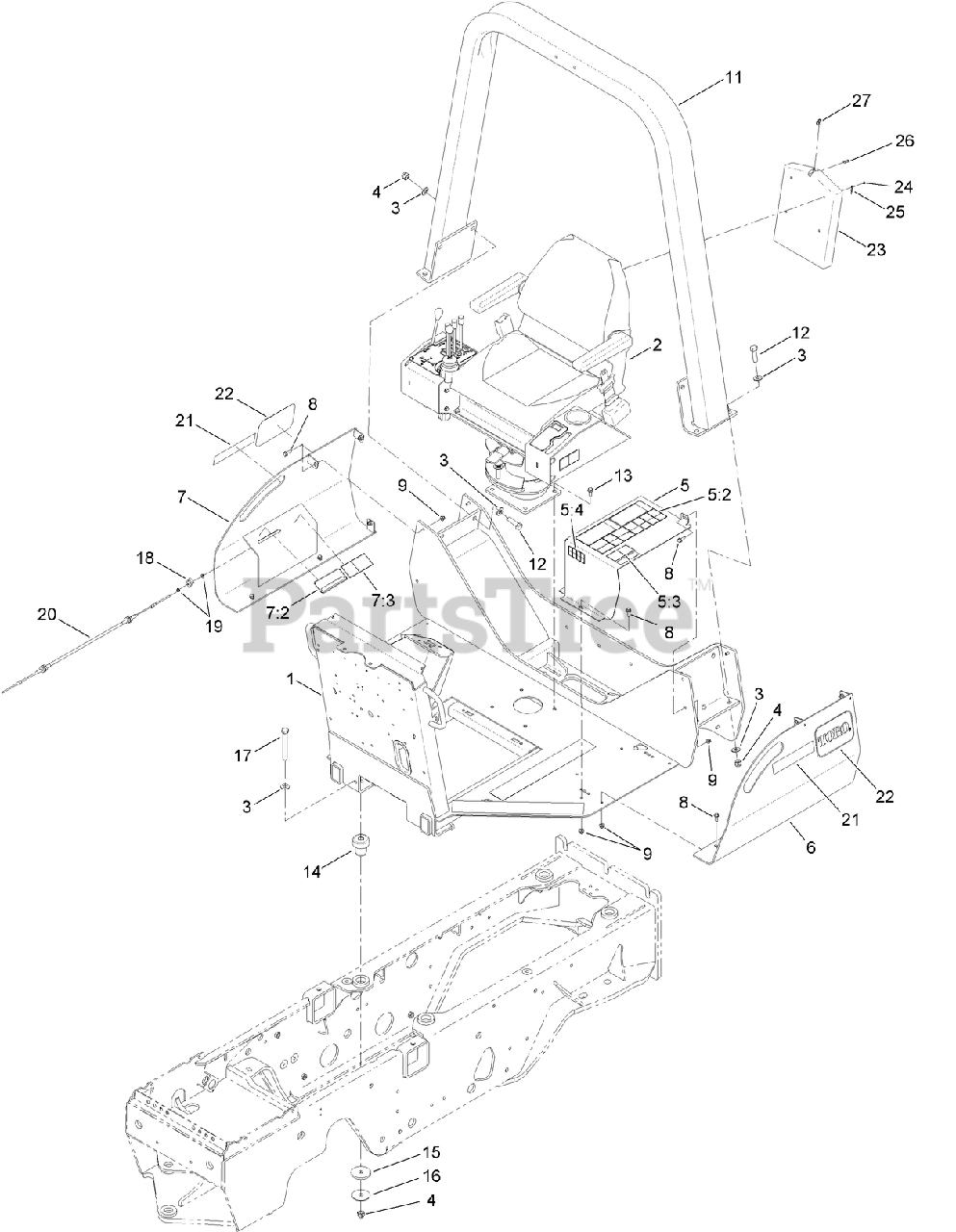

ROPS AND PLATFORM ASSEMBLY Parts Diagram

  • Title

1

Toro 125-6730-03

PLATFORM-OPERATOR

$

$

Currently unavailable

2

Toro 125-6737

SEAT ASM

$

$

Currently unavailable

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

4

Toro AU232-41110

NUT-LOCK, HEX

$1.99

$

Usually ships in 3-6 days

0

5

Toro 127-1235

BATTERY COVER ASM

$

$

Not available

5:2

Toro 125-6699

DECAL-SAFETY

$

$

Currently unavailable

5:3

Toro 125-6691

DECAL-SAFETY

$

$

Currently unavailable

5:4

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

6

Toro AU125419-01

FENDER-LH

$

$

Currently unavailable

7

Toro 127-1237

RH FENDER ASM

$

$

Currently unavailable

7:2

Toro 125-6697

DECAL-REAR STEERING INDICATOR

$

$

Currently unavailable

7:3

Toro 125-8471

DECAL-WARNING, STEERING

$

$

Currently unavailable

8

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

9

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 127-1884

ROPS ASM

$

$

Currently unavailable

12

Toro 327-26

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

13

Toro 108-1531

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

14

Toro AUA141451

MOUNT-REAR

$111.99

$

Usually ships in 3-6 days

0

15

Toro AUA141470

WASHER-SNUBBING

$

$

Currently unavailable

16

Toro AUD89007

WASHER

$29.99

$

Usually ships in 3-6 days

0

17

Toro AU113-2649

SCREW-HH

$

$

Currently unavailable

18

Toro AUH437165

POINTER-INDICATOR, POSITION

$66.99

$

Usually ships in 3-6 days

0

19

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

20

Toro AUH673996

POSITION INDICATOR CABLE ASM

$184.99

$

Usually ships in 3-6 days

0

21

Toro 125-6692

DECAL

$

$

Currently unavailable

22

Toro 62-7400

DECAL

$27.99

$

Usually ships in 3-6 days

0

23

Toro AU103216

HOLDER-MANUAL, OPERATOR

$83.99

$

Usually ships in 3-6 days

0

24

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

25

Toro AUR46465

LANYARD

$21.99

$

Usually ships in 3-6 days

0

26

Toro AUR46463

POST-MANUAL

$2.49

$

Usually ships in 3-6 days

0

27

Toro AUR40745

STRAP-TIE, NYLON

$0.99

$

Usually ships in 3-6 days

0
