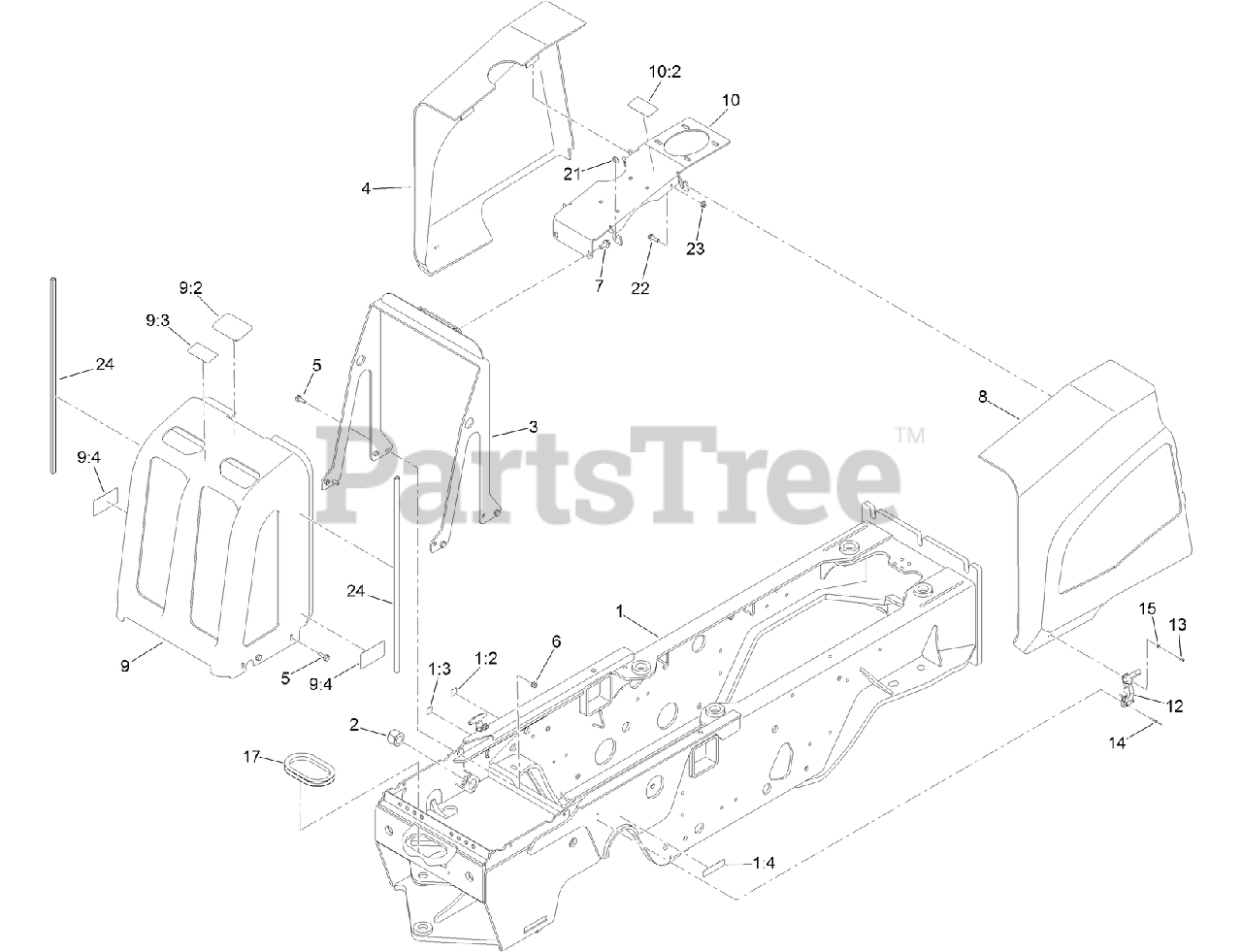

25430 W (RT 600) - Toro Trencher (SN: 315000501 - 315999999) (2015) Frame Assembly Parts Diagram

Trencher

Frame Assembly Parts Diagram

  • Title

1

Toro 127-1240

CHASSIS FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-8481

DECAL-FLUID, HYDRAULIC (OUT)

$

$

Currently unavailable

1:3

Toro 125-8482

DECAL-FLUID, HYDRAULIC (IN)

$

$

Currently unavailable

1:4

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 2 left!

0

2

Toro AU232-41120

NUT-HEX

$17.99

$

Usually ships in 3-6 days

0

3

Toro AU125441-03

SUPPORT-HOOD

$

$

Currently unavailable

4

Toro 136-3994

RT600 RIGHT HOOD

$

$

Currently unavailable

5

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

6

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 3 left!

0

7

Toro 33106-030

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

8

Toro 136-3995

RT600 LEFT HOOD

$

$

Currently unavailable

9

Toro 136-5451

NOSE-CLIP W/DECALS

$

$

Currently unavailable

9:2

Toro 67-1300

DECAL

$34.99

$

In Stock, only 1 left!

0

9:3

Toro 125-8479

DECAL-WARNING, RADIATOR

$

$

Currently unavailable

9:4

Toro 125-6689

DECAL-WARNING, FAN

$

$

Currently unavailable

10

Toro 125-6749

HOOD SUPPORT ASM

$

$

Currently unavailable

10:2

Toro 125-4963

DECAL-SURFACE, HOT

$6.99

$

Usually ships in 3-6 days

0

12

Toro AUH672204

LATCH-DRAW, FLEXIBLE

$65.99

$

Usually ships in 3-6 days

0

13

Toro 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 10

0

14

Toro 107-0386

RIVET-BLIND

$5.49

$

Usually ships in 3-6 days

0

15

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

17

Toro 127-1284

TRIM-EDGE

$

$

Currently unavailable

21

Toro 130-8858

TRIM-BUMPER

$

$

Currently unavailable

22

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

23

Toro 32128-36

NUT-HF

$2.49

$

Usually ships in 3-6 days

0

24

Toro 115-0423

SEAL-BULB

$31.99

$

Usually ships in 3-6 days

0
