25438 E - Toro 60" Heavy-Duty Rock Boom with Restraint Bar, RT600 Traction Unit 60 INCH ROCK BOOM ASSEMBLY Parts Diagram

60" Heavy-Duty Rock Boom with Restraint Bar, RT600 Traction Unit

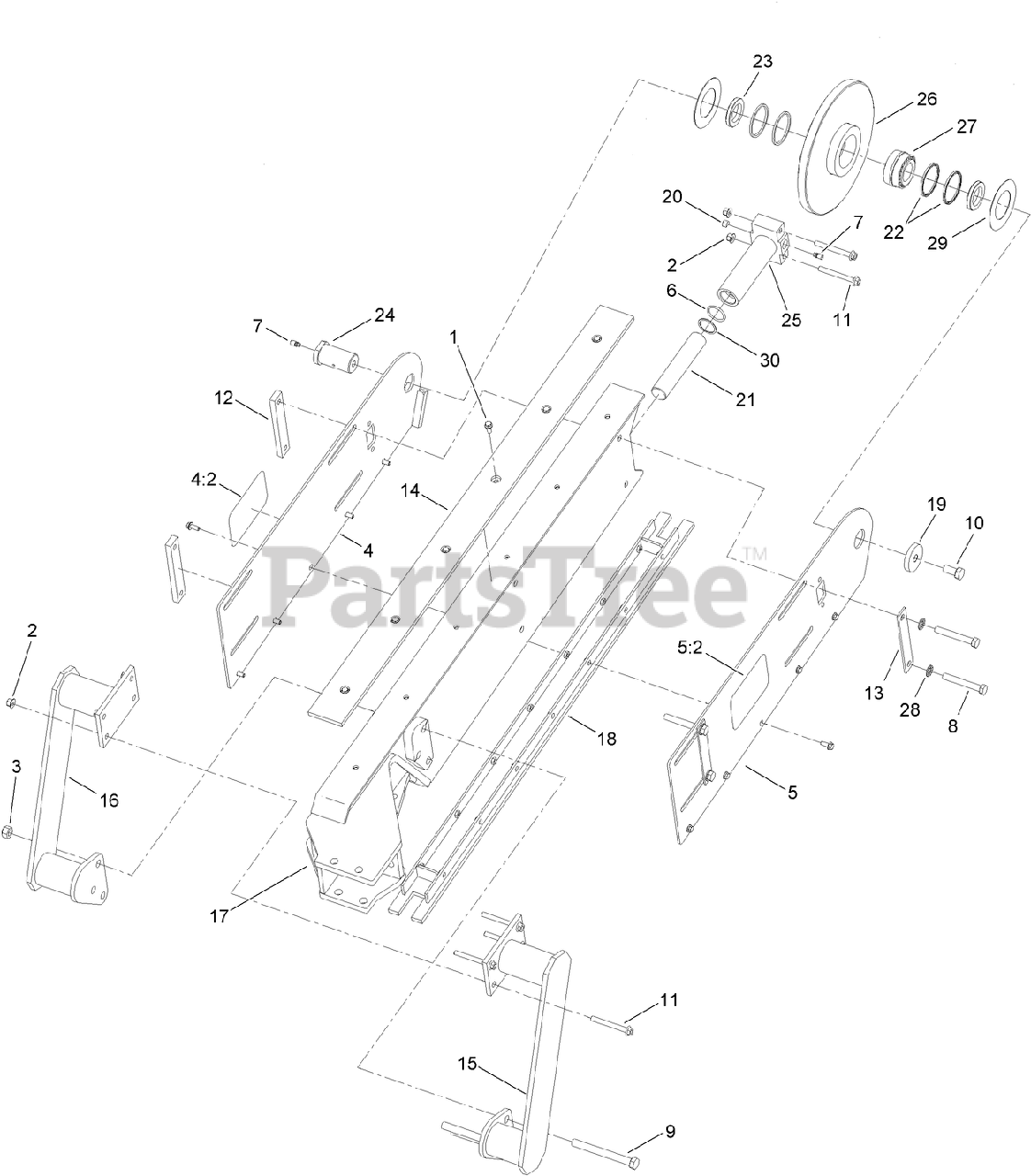

60 INCH ROCK BOOM ASSEMBLY Parts Diagram

  • Title
1

Toro 108-1531

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

2

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

3

Toro 120-7252

NUT-LOCK

$3.49

$

Usually ships in 3-6 days

0

4

Toro 127-1209

RH BOOM END PLATE ASM

$

$

Not available

4:2

$31.99

$

Usually ships in 3-6 days

0

5

Toro 127-1210

LH BOOM END PLATE ASM

$

$

Not available

5:2

$31.99

$

Usually ships in 3-6 days

0

6

$10.99

$

Usually ships in 3-6 days

0

7

Toro AU219-66

FITTING-LUBE, STRAIGHT

$14.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

$

$

Not available

10

$

$

Not available

11

Toro AU100356

BOLT-HHF

$

$

Currently unavailable

12

Toro AU101562A1-03

BAR-TAPPED

$

$

Not available

13

Toro AU101563A1-03

BAR-CLAMP

$

$

Not available

14

Toro AU112357A1-03

BAR-WEAR PAD, UPPER

$

$

Not available

15

Toro AU117777A1-03

MOUNT-CRUMBER, LH (ROCK)

$

$

Not available

16

Toro AU117778A1-03

MOUNT-CRUMBER, RH (ROCK)

$

$

Not available

17

Toro AU126226-03

BOOM-ROCK, 60IN

$

$

Not available

18

Toro AU126641-03

CHANNEL-WEAR PAD, 4IN

$

$

Currently unavailable

19

$

$

Not available

20

Toro AUH114728

PLUG-BLEED

$19.99

$

Usually ships in 3-6 days

0

21

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

22

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

23

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

24

Toro AUH438570

PIN-BOOM

$

$

Currently unavailable

25

Toro AUH674743-03

BOOM END CYLINDER ASM

$

$

Not available

26

Toro AUH675070-03

ROLLER-BOOM END

$

$

Not available

27

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

28

Toro AUH434670

WASHER-LOCK

$

$

Not available

29

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

30

Toro AUH755009

WASHER-BACKUP

$6.99

$

Usually ships in 3-6 days

0
