25444 E - Toro 60" Rock Boom, RT1200 Trencher ROCK BOOM ASSEMBLY Parts Diagram

60" Rock Boom, RT1200 Trencher

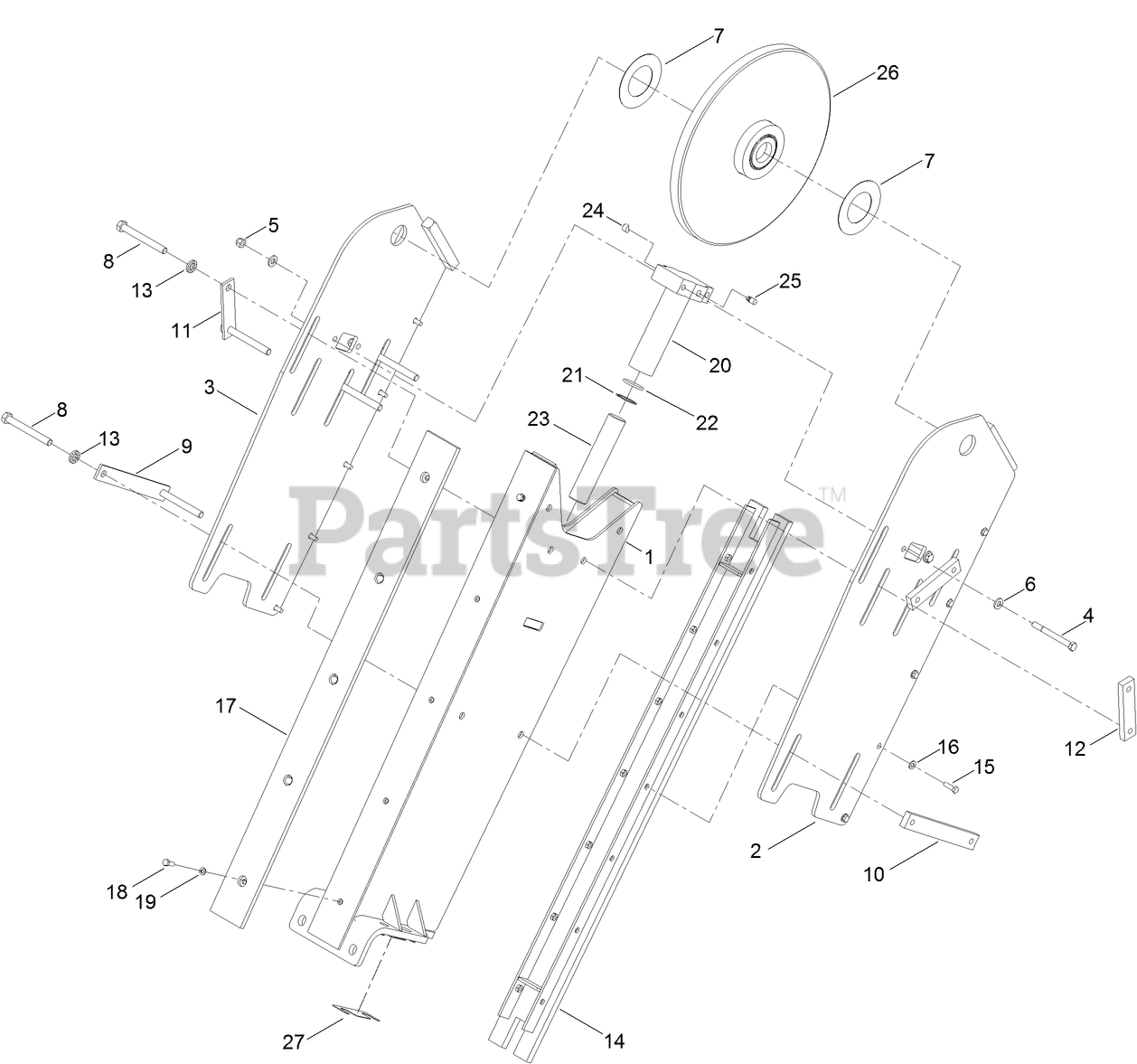

ROCK BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro AU110262-03

BOOM-ROCK, 5 FOOT

$4633.99

$

Usually ships in 3-6 days

0

2

Toro AU110266-03

PLATE-BOOM END LH

$

$

Currently unavailable

3

Toro AU110265-03

PLATE-BOOM END RH

$

$

Currently unavailable

4

Toro AU426-880

BOLT

$

$

Not available

5

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

7

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

8

Toro 120-0923

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

9

Toro AUH434510

BAR-WASHER, LONG

$

$

Currently unavailable

10

Toro AUH434511

BAR-TAPPED, LONG

$

$

Currently unavailable

11

Toro AUH434671

BAR-WASHER, SHORT

$

$

Currently unavailable

12

Toro AUH434555

BAR-TAPPED, SHORT
(Superseded to AUH434555-03)

$

$

Not available

13

Toro AUH434670

WASHER-LOCK

$

$

Not available

14

Toro AUH672820-03

CHANNEL-WEAR PAD, 5 FOOT

$

$

Not available

15

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

16

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Toro AUH434850-03

BAR-WEAR PAD, 5 FOOT

$

$

Not available

18

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

20

Toro AUH672695-03

CYLINDER ASM (BOOM END)

$

$

Not available

21

Toro AUH755009

WASHER-BACKUP

$7.49

$

Usually ships in 3-6 days

0

22

Toro AU238-6327

O-RING

$11.99

$

Usually ships in 3-6 days

0

23

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

24

Toro AUH114728

PLUG-BLEED

$21.99

$

Usually ships in 3-6 days

0

25

Toro AU219-66

FITTING-LUBE, STRAIGHT

$16.99

$

Usually ships in 3-6 days

0

26

Toro AUH672962

BOOM END ASM

$

$

Currently unavailable

27

Toro AU251337A1

SHIM

$

$

Currently unavailable
