25450 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) TANDEM PUMP AND MAIN VALVE HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

Trencher

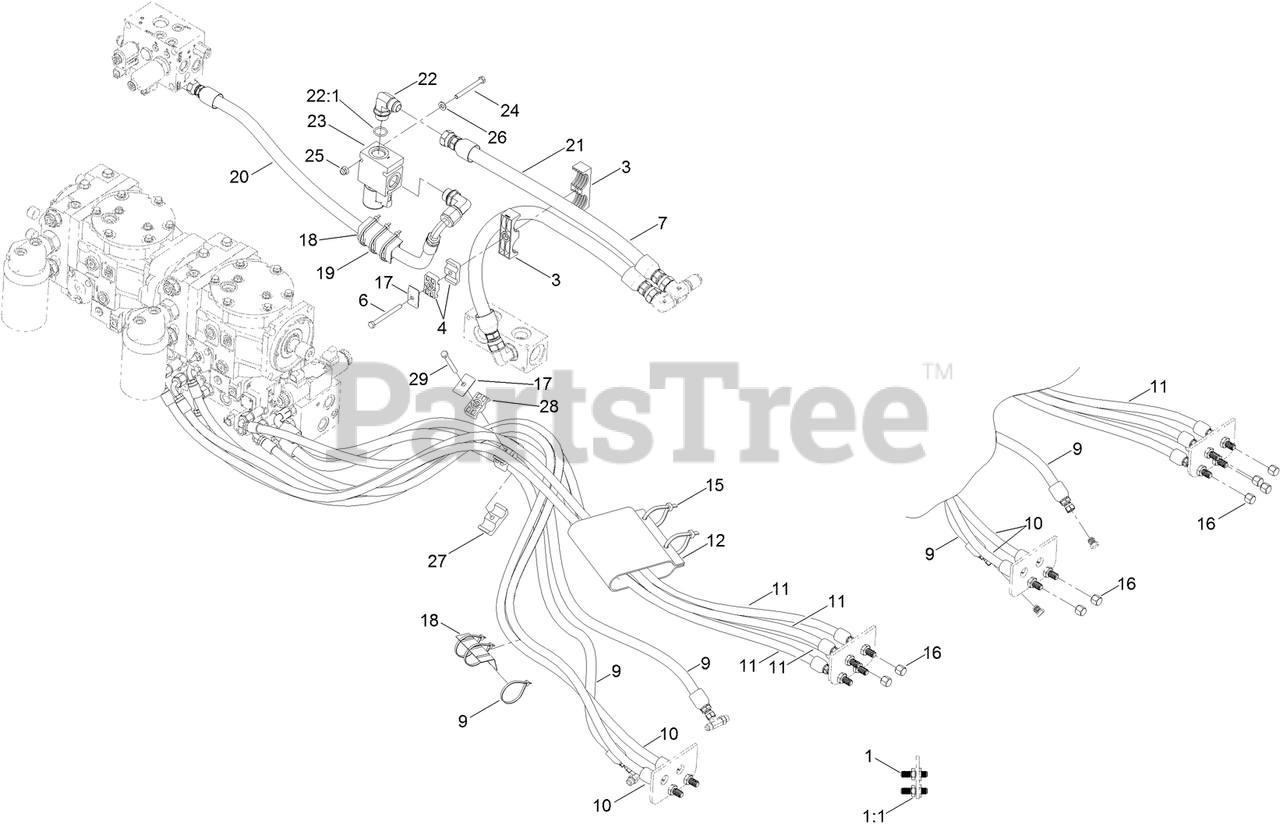

TANDEM PUMP AND MAIN VALVE HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

  • Title

1

Toro AU218-673

UNION-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

1:1

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

3

Toro 130-7451

CLAMP-TWIN

$

$

Currently unavailable

4

Toro 56-7976

CLAMP-TUBE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 8

0

7

Toro 125-6855

HYD HOSE ASM

$

$

Currently unavailable

9

Toro 125-6877

HYD HOSE ASM

$

$

Currently unavailable

10

Toro 125-6878

HYD HOSE ASM

$

$

Currently unavailable

11

Toro 125-6880

HYD HOSE ASM

$

$

Currently unavailable

12

Toro AU107409

BOOT-HOSE

$

$

Currently unavailable

15

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 01-201-4520

CAP

$4.49

$

Usually ships in 3-6 days

0

17

Toro 69-9760

COVERPLATE

$7.99

$

Usually ships in 3-6 days

0

18

Toro AU112950

PROTECTOR-HOSE

$30.99

$

Usually ships in 3-6 days

0

19

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

20

Toro 131-0435

HYD HOSE ASM

$

$

Currently unavailable

21

Toro 131-0436

HYD HOSE ASM

$

$

Currently unavailable

22

Toro 353-369

FITTING-ELBOW, 90 DEG

$76.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

23

Toro 131-0433

VALVE-BLOCKING

$

$

Currently unavailable

24

Toro 33114-080

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

25

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

26

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

27

Toro 94-8105

CLAMP-TUBE

$7.49

$

In Stock, only 1 left!

0

28

Toro 56-7971

CLAMP-TUBE

$27.99

$

Usually ships in 3-6 days

0

29

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 17

0
