25452 E - Toro Backhoe for RT1200 Trencher (SN: 314000001 - 314999999) (2014) STABILIZER AND CYLINDER ASSEMBLY Parts Diagram

Backhoe for RT1200 Trencher

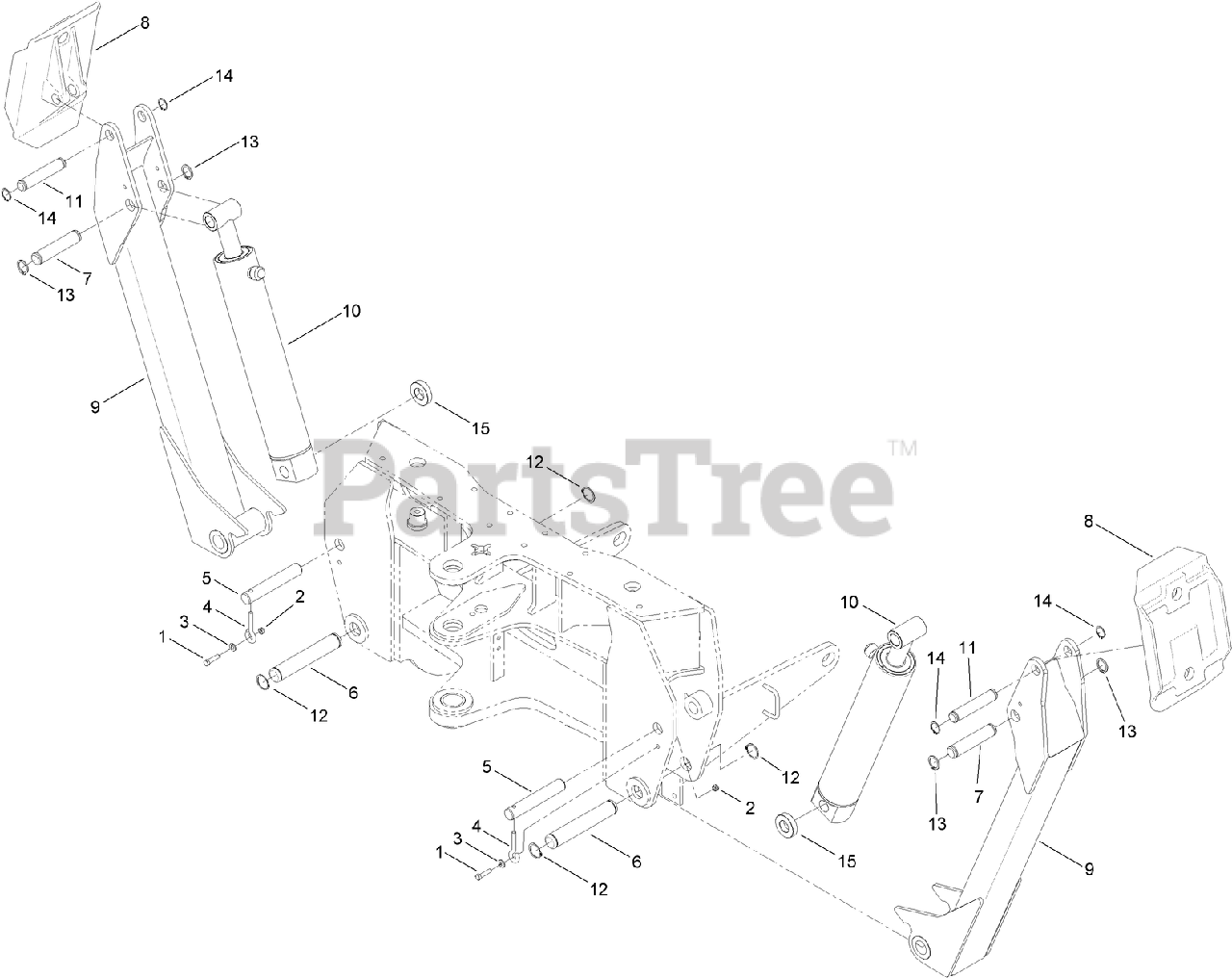

STABILIZER AND CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

2

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AUH313981

PIN-RETAINER

$75.99

$

Usually ships in 3-6 days

0

5

Toro AUH433744

PIN (CYLINDER TO FRAME)

$

$

Currently unavailable

6

Toro AUH433739

PIN (STABILIZER TO FRAME)

$

$

Currently unavailable

7

Toro AUH434380

PIN-STABILIZER (CYLINDER ROD END)

$

$

Currently unavailable

8

Toro AUH434430-03

PAD-STABILIZER

$

$

Currently unavailable

9

Toro AUH672227-03

STABILIZER

$

$

Not available

10

Toro 130-7468

HYD CYLINDER ASM

$

$

Currently unavailable

11

Toro AUH434379

PIN (STABILIZER PAD END)

$

$

Currently unavailable

12

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

13

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

14

Toro 32120-2

Ring-Retaining

$6.99

$

Usually ships in 3-6 days

0

15

Toro 130-8404

SPACER

$

$

Currently unavailable
