25453 E - Toro Center Trencher for RT1200 Traction Unit (SN: 314000001 - 314999999) (2014) HYDRAULIC MOTOR ASSEMBLY NO. 130-8445 Parts Diagram

Center Trencher for RT1200 Traction Unit

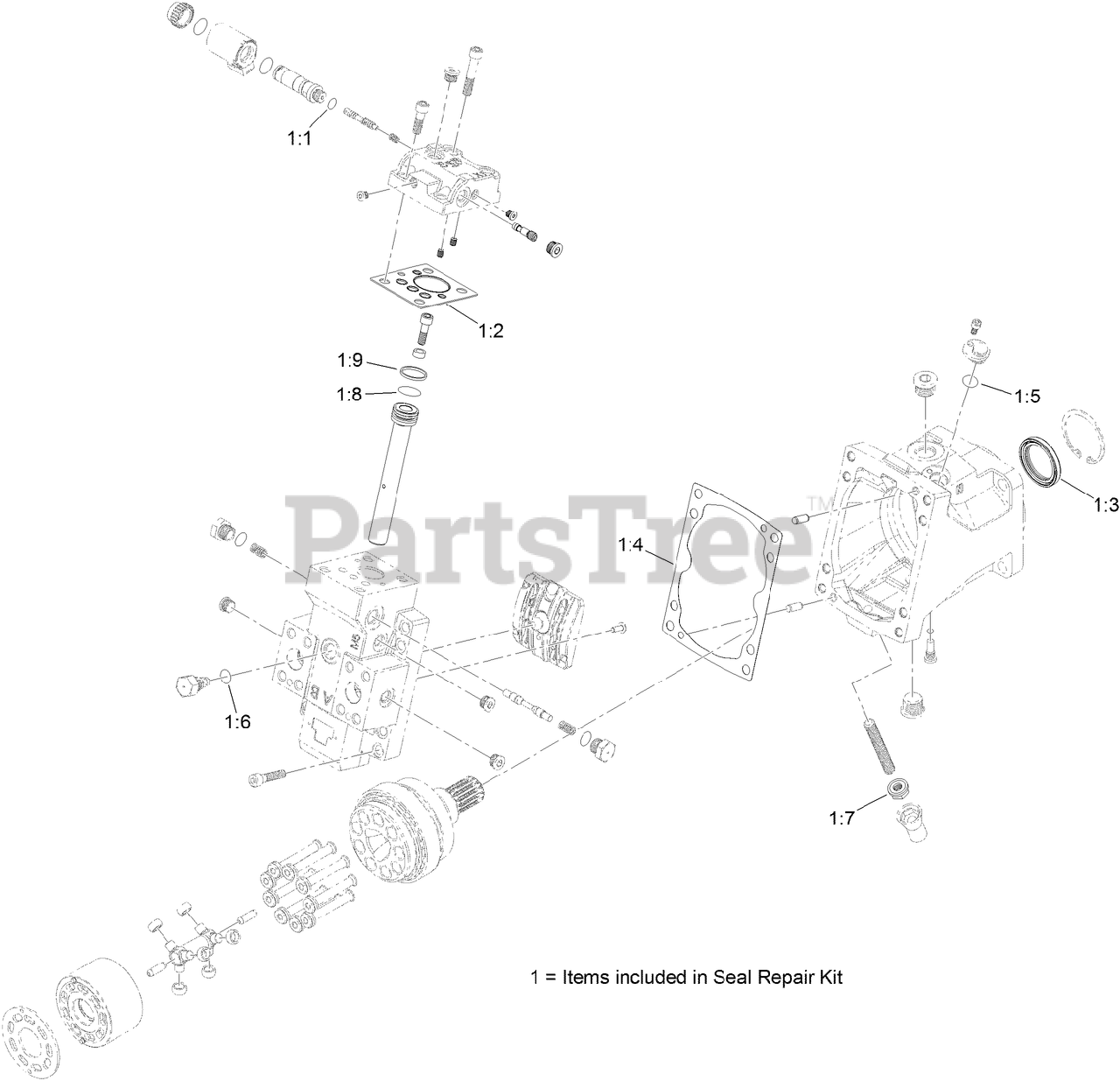

HYDRAULIC MOTOR ASSEMBLY NO. 130-8445 Parts Diagram

  • Title

1

Toro 131-3826

OVERHAUL SEAL KIT

$

$

Currently unavailable

1:1

O-RING

Note: Not serviced separately

$

$

Not available

1:2

SEAL-CONTROL

Note: Not serviced separately

$

$

Not available

1:3

SEAL-LIP

Note: Not serviced separately

$

$

Not available

1:4

GASKET-CAP, END

Note: Not serviced separately

$

$

Not available

1:5

O-RING

Note: Not serviced separately

$

$

Not available

1:6

O-RING

Note: Not serviced separately

$

$

Not available

1:7

NUT-SEAL , M12

Note: Not serviced separately

$

$

Not available

1:8

O-RING

Note: Not serviced separately

$

$

Not available

1:9

RING-PISTON

Note: Not serviced separately

$

$

Not available
