25453 E - Toro Center Trencher for RT1200 Traction Unit (SN: 314000001 - 314999999) (2014) HYDRAULIC PLUMBING AND FASTENER ASSEMBLY Parts Diagram

Center Trencher for RT1200 Traction Unit

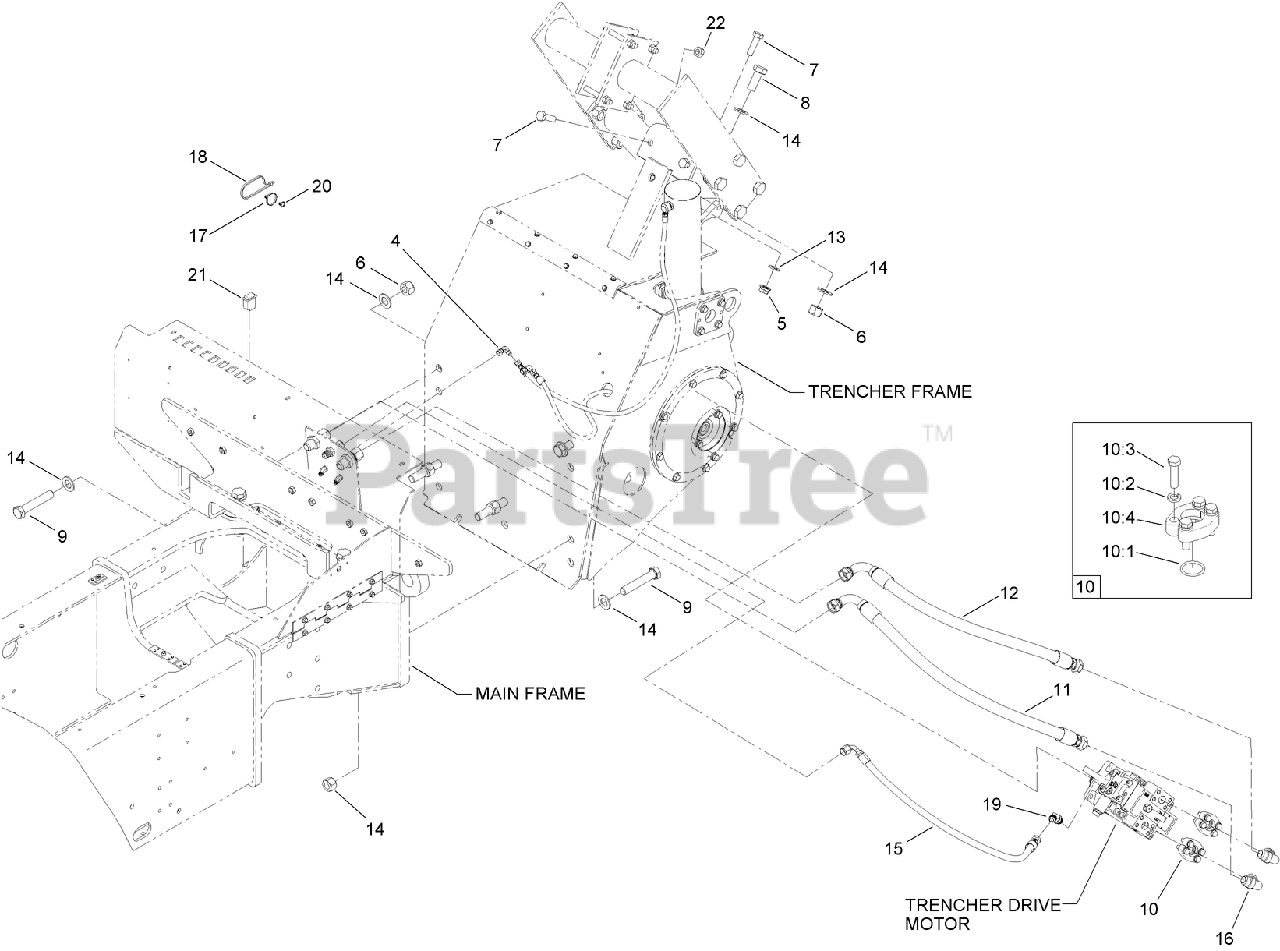

HYDRAULIC PLUMBING AND FASTENER ASSEMBLY Parts Diagram

  • Title

4

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

5

Toro AU231-51412

NUT-HEX FLANGE

$10.99

$

Usually ships in 3-6 days

0

6

Toro AU232-41116

NUT-HEX

$6.49

$

Usually ships in 3-6 days

0

7

Toro 328-2

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

8

Toro AU426-1640

BOLT

$21.99

$

Usually ships in 3-6 days

0

9

Toro 127-1299

SCREW-HH

$

$

Currently unavailable

10

Toro 130-8448

FLANGE KIT (CODE 62)

$

$

Currently unavailable

10:1

Toro 121-3904

O-RING

$7.99

$

Usually ships in 3-6 days

0

10:2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

10:3

Toro 33116-045

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10:4

FLANGE-CODE 62

Note: Not serviced separately

$

$

Not available

11

Toro 130-8447

HOSE ASM

$

$

Currently unavailable

12

Toro 130-8446

HOSE ASM

$

$

Currently unavailable

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro AUH426833

WASHER

$10.99

$

Usually ships in 3-6 days

0

15

Toro 130-7493

HYD HOSE ASM

$

$

Currently unavailable

16

Toro AUH439280

FITTING-ELBOW

$83.99

$

Usually ships in 3-6 days

0

17

Toro AUL11541

STRAP-TIE

$17.99

$

Usually ships in 3-6 days

0

18

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0

19

Toro 353-389

FITTING-ELBOW, 45 DEG

$63.99

$

Usually ships in 3-6 days

0

20

Toro AUR40745

STRAP-TIE, NYLON

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

$

$

Currently unavailable

22

Toro 120-7252

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0
