25453 - Toro Center Trencher for RT1200 Traction Unit (SN: 316000001 - 316999999) (2016) TRENCHER FRAME ASSEMBLY Parts Diagram

Center Trencher for RT1200 Traction Unit

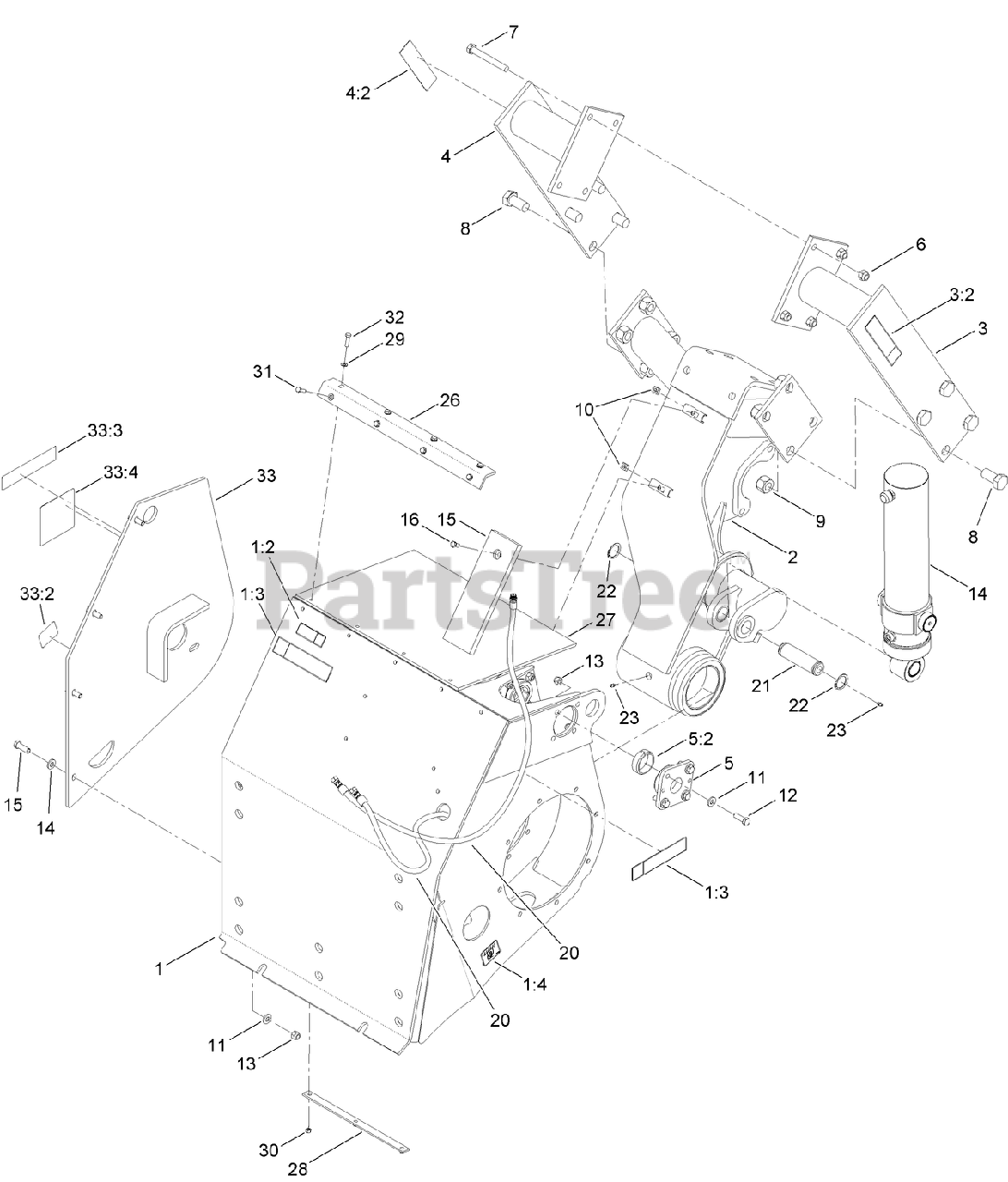

TRENCHER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 131-0405

TRENCHER FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-6671

DECAL-DANGER

$7.99

$

Usually ships in 3-6 days

0

1:3

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

1:4

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

2

Toro AU111542-03

BRACKET-MOUNT, BOOM ATTACH

$7543.99

$

Usually ships in 3-6 days

0

3

Toro 127-1805

LH CRUMBER MOUNTING ASM

$

$

Not available

3:2

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

4

Toro 127-1806

RH CRUMBER MOUNTING ASM

$

$

Not available

4:2

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

5

Toro AU123494A1

PIVOT BLOCK ASM

$

$

Not available

5:2

Toro AUH436164

BUSHING

$54.99

$

Usually ships in 3-6 days

0

6

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU426-1080

BOLT

$7.49

$

Usually ships in 3-6 days

0

8

Toro AU426-1632

BOLT

$16.99

$

Usually ships in 3-6 days

0

9

Toro AU232-41116

NUT-HEX

$6.49

$

Usually ships in 3-6 days

0

10

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

11

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

14

Toro 127-1796

HYD CYLINDER ASM

$

$

Not available

15

Toro AUH434547-03

STRIP-WEAR, LONG

$256.99

$

Usually ships in 3-6 days

0

16

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 131-0466

HYD HOSE ASM, HP

$

$

Currently unavailable

21

Toro AU221253A1

PIN-PIVOT

$250.99

$

Usually ships in 3-6 days

0

22

Toro AUD25279

RING

$22.99

$

Usually ships in 3-6 days

0

23

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

26

Toro AUH439324-03

ANGLE-MOUNTING, DIRT DEFLECTOR

$145.99

$

Usually ships in 3-6 days

0

27

Toro AUH439325

DEFLECTOR-DIRT

$361.99

$

Usually ships in 3-6 days

0

28

Toro AUH439331

STRIP-DIRT DEFLECTOR

$

$

Not available

29

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 15

0

30

Toro AU232-4115

NUT-HEX

$

$

Not available

31

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, only 2 left!

0

33

Toro 127-1804

SUPPORT BEARING PLATE ASM

$

$

Not available

33:2

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

33:3

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

33:4

Toro 125-6693

DECAL-TRANSMISSION FLUID

$

$

Currently unavailable
