25463 - Toro Plow Kit for RT1200 Trencher (SN: 314000001 - 314999999) (2014) HYDRAULIC MOTOR ASSEMBLY NO. AU87430032 Parts Diagram

Plow Kit for RT1200 Trencher

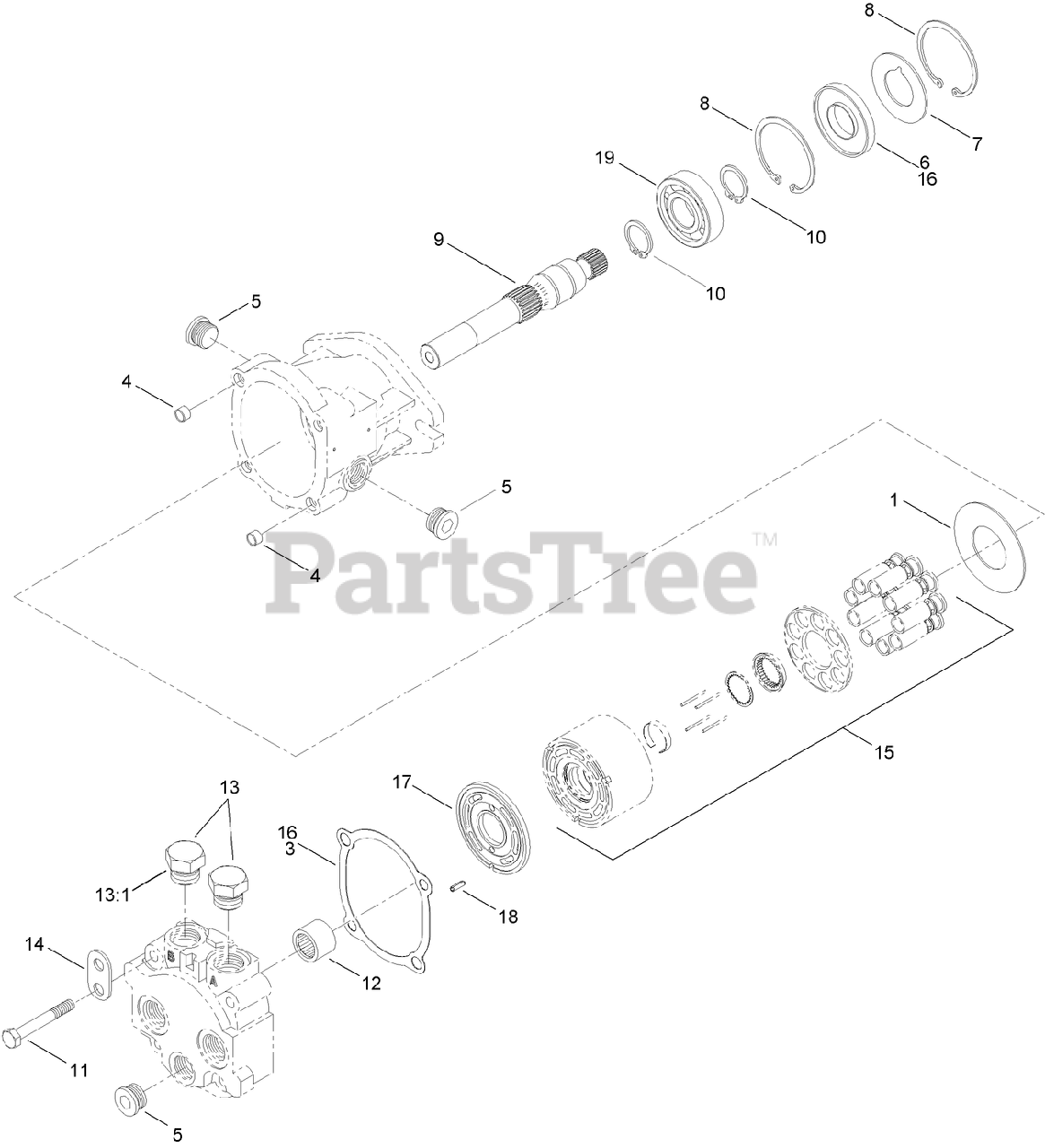

HYDRAULIC MOTOR ASSEMBLY NO. AU87430032 Parts Diagram

  • Title

1

Toro AU100700A1

PLATE-Thrust

$

$

Currently unavailable

3

Toro AU100701A1

GASKET-End Cap

$16.99

$

Usually ships in 3-6 days

0

4

Toro AUN13994

PIN-Spring

$

$

Currently unavailable

5

Toro 125-5303

PLUG ASM

$51.99

$

Usually ships in 3-6 days

0

6

Toro 127-6214

SEAL-LIP

$203.99

$

Usually ships in 3-6 days

0

7

Toro 95-4400

WASHER-BACKUP

$12.99

$

Usually ships in 3-6 days

0

8

Toro 69-3200

RING-RETAINING

$33.99

$

Usually ships in 3-6 days

0

9

Toro 131-2743

SHAFT

$

$

Currently unavailable

10

Toro 125-5280

RING-RETAINING

$18.99

$

Usually ships in 3-6 days

0

11

Toro 127-6213

SCREW-HH

$

$

Currently unavailable

12

Toro AU132391A1

BEARING-Needle

$82.99

$

Usually ships in 3-6 days

0

13

Toro 69-3130

PLUG

$96.99

$

Usually ships in 3-6 days

0

13:1

O-RING

Note: Not serviced separately

$

$

Not available

14

Toro AU100703A1

BRACKET-Lifting

$

$

Currently unavailable

15

Toro AU234383A1

CYLINDER BLOCK KIT

$

$

Currently unavailable

16

Toro 131-2744

KIT - SEAL OVERHAUL
(Superseded to 127-6246)

$386.99

$

Usually ships in 3-6 days

0

17

Toro AU100702A1

PLATE-Valve

$

$

Currently unavailable

18

Toro 131-3800

PIN-SLOTTED

$

$

Currently unavailable

19

Toro 75-0460

BEARING-BALL

$272.99

$

Usually ships in 3-6 days

0
