25465 - Toro 4ft Manual Crumber, RT1200 Trencher 4 FOOT MANUAL CRUMBLER ASSEMBLY Parts Diagram

4ft Manual Crumber, RT1200 Trencher

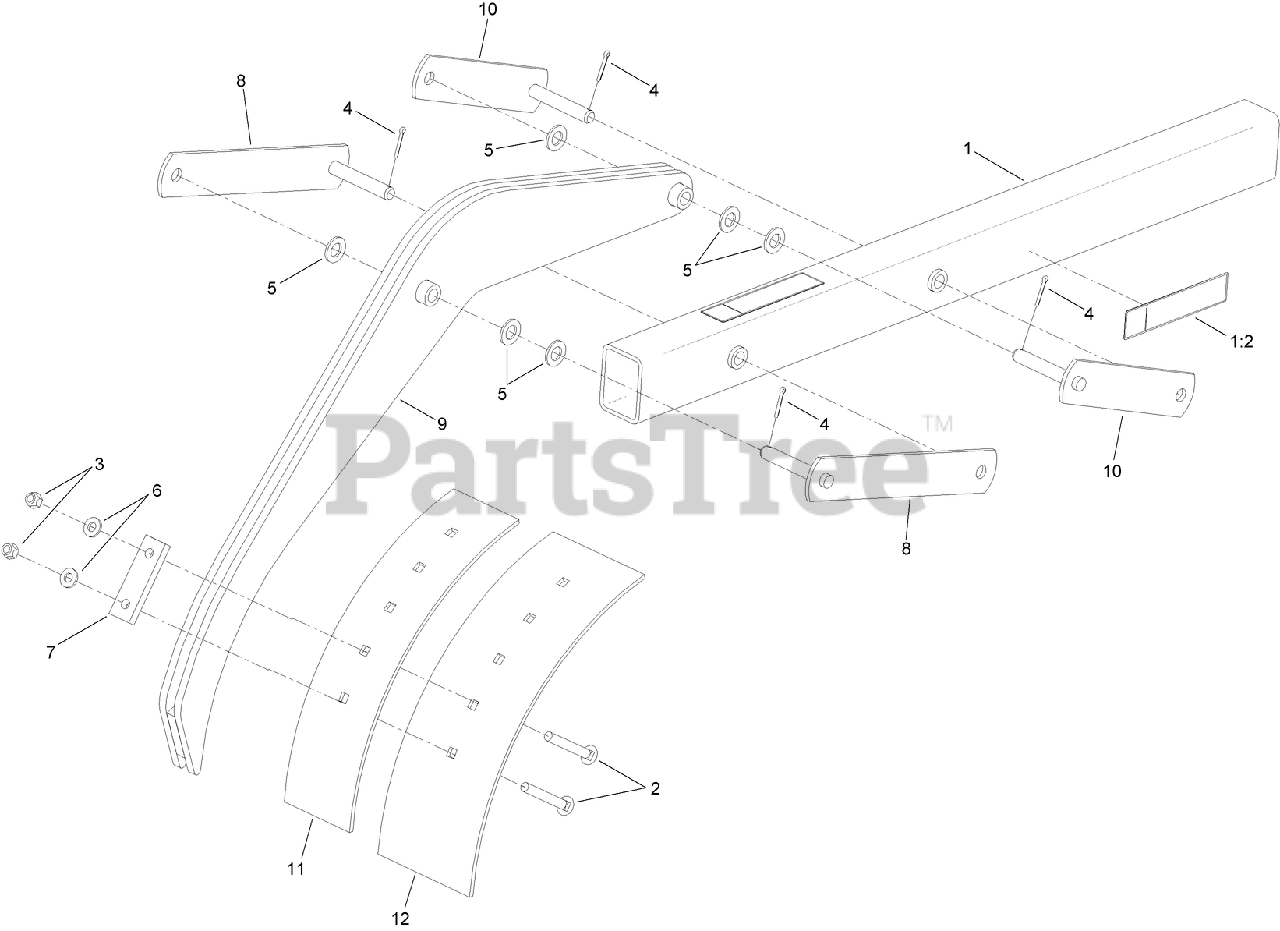

4 FOOT MANUAL CRUMBLER ASSEMBLY Parts Diagram

  • Title

1

Toro 130-7453

CRUMBER TUBE ASM

$

$

Currently unavailable

1:2

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.49

$

Usually ships in 3-6 days

0

2

Toro AU411-864

BOLT-CARR

$6.99

$

Usually ships in 3-6 days

0

3

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, Qty 5

0

5

Toro AU495-11081

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

7

Toro AUH309450-03

SPACER

$43.99

$

Usually ships in 3-6 days

0

8

Toro AUH672721-03

LINK-LONG, CRUMBER

$

$

Not available

9

Toro AUH673071-03

ARM-CRUMBER

$

$

Not available

10

Toro AUH673072-03

LINK-CRUMBER, SHORT

$

$

Not available

11

Toro AUH127480-03

BLADE-MANUAL CRUMBER, 6 INCH CUT

$214.99

$

Usually ships in 3-6 days

0

12

Toro AUH60087-03

BLADE-MANUAL CRUMBER, 8 INCH CUT

$

$

Not available
