2550 LE - Poulan Woodmaster Chainsaw, Type 1 (2008-03) Handle, Chassis & Bar Assembly Type 1 Parts Diagram

Woodmaster Chainsaw, Type 1

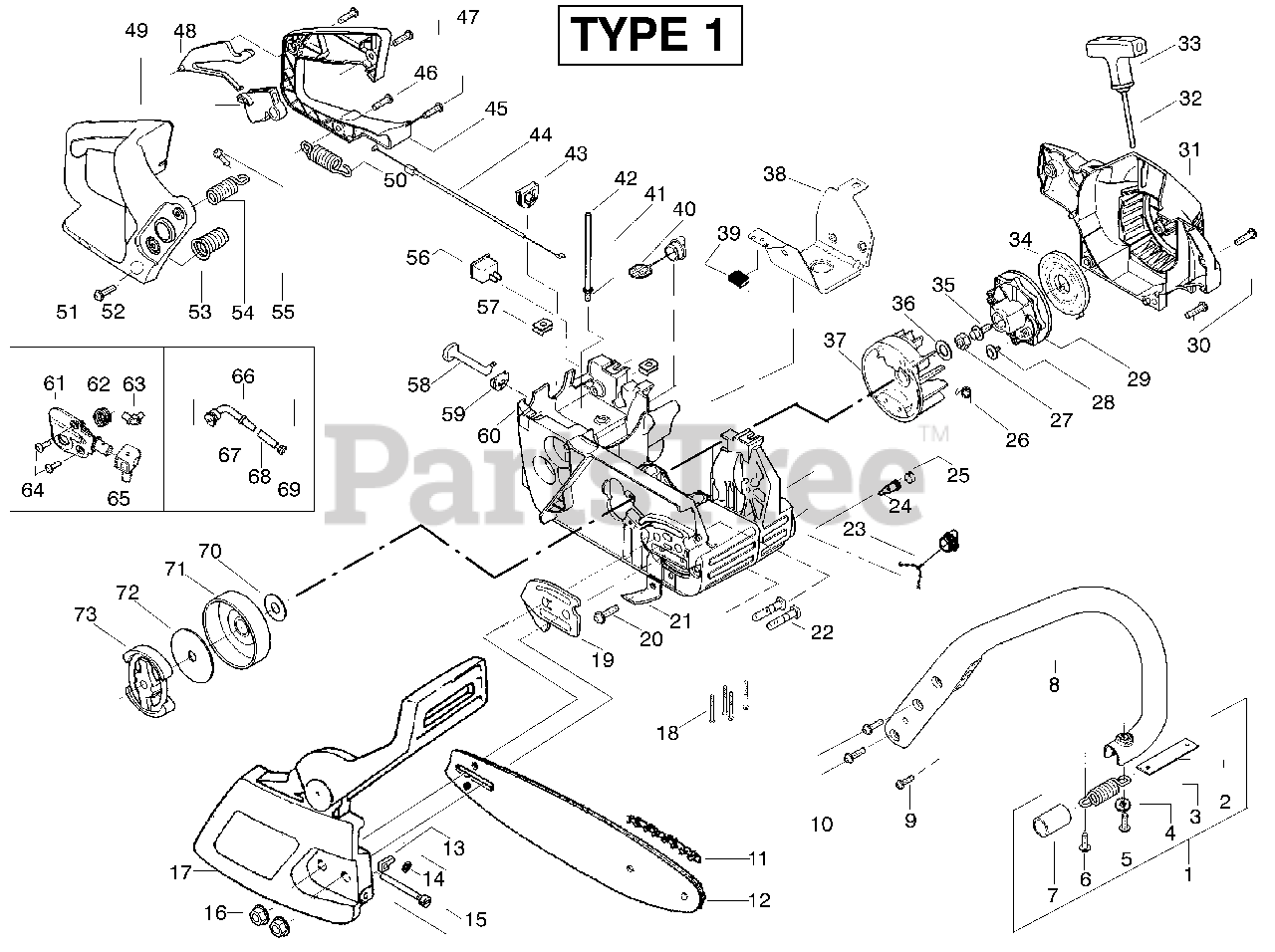

Handle, Chassis & Bar Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530047963

Assy.- Isolator
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

2

Poulan 530047608

Limiter Strap
(Superseded to 530037009)

$

$

Not available

3

Poulan 530042082

Spring- Isolator
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

4

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

5

Poulan 530016018

Screw

$

$

Not available

6

Poulan 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

7

Poulan 530036142

Sleeve-AV Spring

$

$

Not available

8

Poulan 530047583

Front Handle
(Superseded to 545048001)

$44.99

$

Usually ships in 3-10 days

0

9

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

10

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

11

Poulan 952051338

Chain-18"
(Superseded to 581562301)

$25.99

$

In Stock, Qty 14

0

12

Poulan 952044418

Bar-18"

$

$

Not available

13

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

14

Poulan 530038593

Retainer - Bar Adjust

$4.99

$

In Stock, Qty 20+

0

15

Poulan 530069611

Kit-Bar Adjust

Note: (Incl.13 & 14)

$4.99

$

In Stock, Qty 20+

0

16

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

17

Poulan 530054735

Kit-Chain Brake
(Superseded to 545139906)

$

$

Not available

18

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

19

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

20

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

21

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

22

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 4 left!

0

23

Poulan 530010846

Oil Cap Ass’y.
(Superseded to 530057236)

$

$

Not available

24

Poulan 530026119

Check Valve

$4.49

$

In Stock, Qty 19

0

25

Poulan 530038264

Plug-Bronze Vent

$6.49

$

In Stock, Qty 6

0

26

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

27

Poulan 530016134

Nut- Flywheel

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

29

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

30

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

31

Poulan 530049334

Fan Housing

$

$

Not available

32

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

33

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 2 left!

0

34

Poulan 530027531

Recoil Spring
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

35

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 8

0

36

Poulan 530015127

Washer- Flywheel

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 530039209

Flywheel Ass’y.
(Superseded to 530063575)

$

$

Not available

38

Poulan 530055183

Shield - Heat

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 530055322

Clip - "U"

$2.49

$

Usually ships in 3-10 days

0

40

Poulan 530047192

Fuel Cap Ass’y.
(Superseded to 580940901)

$6.49

$

In Stock, Qty 20+

0

41

Poulan 530023877

Fitting- fuel line

$4.99

$

In Stock, Qty 20+

0

42

Poulan 530069216

Kit-Fuel line

Note: (large)

$6.49

$

In Stock, Qty 20+

0

43

Poulan 530047631

Grommet-Cable

$2.49

$

In Stock, only 2 left!

0

44

Poulan 530047602

Cable-Throttle

$

$

Not available

45

Poulan 530047581

Cover-Rear Handle

$4.99

$

Usually ships in 3-10 days

0

46

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

47

Poulan 530015906

Screw

$6.49

$

In Stock, Qty 9

0

48

Poulan 530036098

Throttle Lockout

$

$

Not available

49

Poulan 530036097

Trigger-Throttle

$4.99

$

In Stock, only 3 left!

0

50

Poulan 530042082

Spring- Isolator
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

51

Poulan 530047582

Handle - Rear

$15.99

$

Usually ships in 3-10 days

0

52

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530053274

Assy. Isolator - lower
(Superseded to 545006036)

$9.99

$

In Stock, Qty 6

0

54

Poulan 530071385

Isolator Kit
(Superseded to 545006036)

Note: (Upper)

$9.99

$

In Stock, Qty 6

0

55

Poulan 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

56

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

57

Poulan 530015922

Nut- "U"-Type

$6.49

$

In Stock, Qty 5

0

58

Poulan 530047605

Knob-Choke

$4.99

$

In Stock, Qty 8

0

59

Poulan 530049005

Grommet-Knob

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530047618

Chassis Ass’y.
(Superseded to 530056595)

Note: (Incl. 22-25,40 & from page2, 3,6)

$

$

Not available

61

Poulan 530071259

Kit - Oil Pump

$18.99

$

In Stock, only 2 left!

0

62

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 4 left!

0

63

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, Qty 5

0

64

Poulan 530016064

Screw

$4.99

$

In Stock, Qty 7

0

65

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 530047663

Oil Pick-up Ass’y

Note: (Incl. 67-69)

$4.99

$

In Stock, Qty 9

0

67

Poulan 530038373

Pick-up Oiler

$4.99

$

Usually ships in 3-10 days

0

68

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 530015907

Washer-Thrust

$

$

Not available

71

Poulan 530047061

Assy.-Clutch Drum w/bearing

$17.99

$

In Stock, Qty 11

0

72

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

73

Poulan 530014949

Assy. Clutch

$13.99

$

In Stock, Qty 19

0
