2550 SE - Poulan Silver Edition Chainsaw, Type 1 (2008-03) Engine Assembly Type 1 Parts Diagram

Silver Edition Chainsaw, Type 1

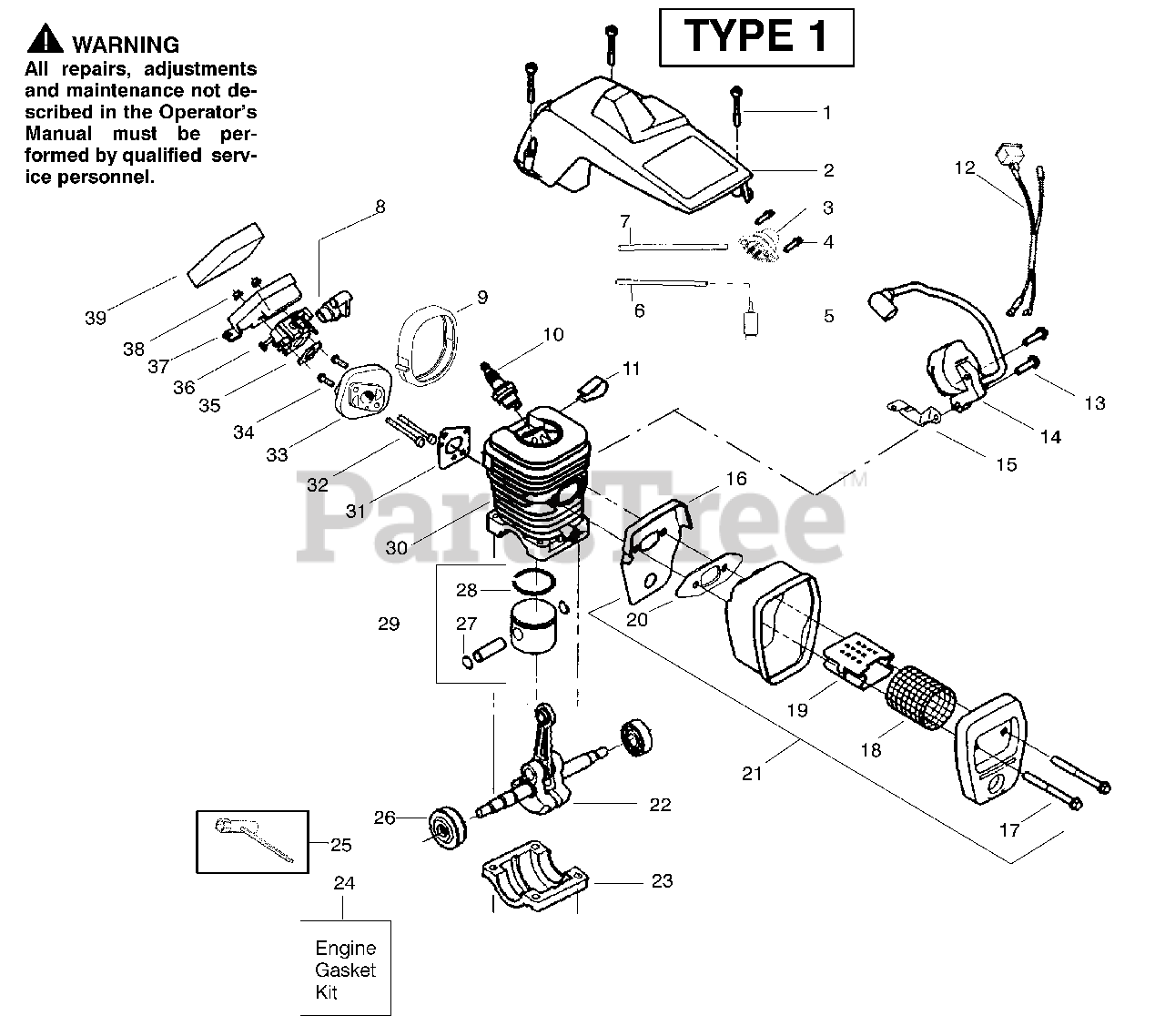

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$3.49

$

In Stock, Qty 18

0

2

Poulan 530055638

Shield-Cylinder

$

$

Not available

3

Poulan 530047213

Assy-Air Purge
(Superseded to 530071835)

$13.99

$

In Stock, Qty 16

0

4

Poulan 530015780

Screw

$3.49

$

Usually ships in 3-10 days

0

5

Poulan 530095646

Assy-Fuel Pick-Up

$6.99

$

In Stock, Qty 20+

0

6

Poulan 530069247

Kit-Line Purge/Carb.

Note: (Small Dia)

$2.49

$

In Stock, Qty 20+

0

7

Poulan 530069216

Kit-Line Purge/Tank

Note: (large line)

$13.99

$

In Stock, Qty 20+

0

8

Poulan 530035526

Grommet-Carb Adjust.

$

$

Not available

9

Poulan 530054144

Seal-Carb Adapter

$4.99

$

In Stock, only 1 left!

0

10

Poulan 952030150

Spark Plug

Note: (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

11

Poulan 530016136

Clip-High Tension Lead

$

$

Not available

12

Poulan 530049117

Assy-Wire Harness

Note: (includes switch)

$

$

Not available

13

Poulan 530015814

Screw

$3.49

$

In Stock, only 3 left!

0

14

Poulan 530039198

Module-Ignition

$68.99

$

In Stock, Qty 16

0

15

Poulan 530047442

Strap-Ground

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530049870

Back Plate-Muffler

$

$

Not available

17

Poulan 530016132

Screw

$4.99

$

In Stock, Qty 5

0

18

Poulan 530036103

Screen-Spark

$

$

Not available

19

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

20

Poulan 530069608

Gasket-Muffler

Note: (Kit)

$

$

Not available

21

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 16-20)

$26.99

$

Usually ships in 3-10 days

0

22

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$

$

Not available

23

Poulan 530037935

Cap-Crankcase

$

$

Not available

24

Poulan 530069608

Kit-Engine Gasket

Note: (incl. 20,31,35)

$

$

Not available

25

Poulan 530031163

Scrench

$6.99

$

In Stock, Qty 9

0

26

Poulan 530056363

Assy-Seal & Bearing

$9.49

$

In Stock, only 2 left!

0

27

Poulan 530015697

Retainer - Piston Pin

$3.49

$

In Stock, only 2 left!

0

28

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$5.99

$

In Stock, Qty 12

0

29

Poulan 530071408

Kit-Piston

Note: (Incl. 27,28)

$

$

Not available

30

Poulan 530012550

Cylinder

$51.99

$

Usually ships in 3-10 days

0

31

Poulan 530069608

Gasket-Adapter

Note: (Kit)

$

$

Not available

32

Poulan 530016187

Screw

$3.49

$

In Stock, Qty 12

0

33

Poulan 530049700

Adapter-Carb.

$11.99

$

In Stock, Qty 14

0

34

Poulan 530016386

Screw

$4.99

$

In Stock, only 1 left!

0

35

Poulan 530069608

Carb. Gasket

Note: (Kit)

$

$

Not available

36

Poulan 530071621

Kit-Carburetor

Note: (WT-625)

$

$

Not available

37

Poulan 530047604

Housing-Air Filter

$

$

Not available

38

Poulan 530016101

Nut

$4.99

$

In Stock, Qty 12

0

39

Poulan 530037793

Air Filter - Foam

$4.99

$

In Stock, Qty 11

0

39

Poulan 530163693

Manual

Note: Not Shown

$

$

Not available

39

Poulan 530057757

Decal-Warning

Note: Not Shown

$

$

Not available
