25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 323000001 - 323000151) (2023) Harness and Component Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

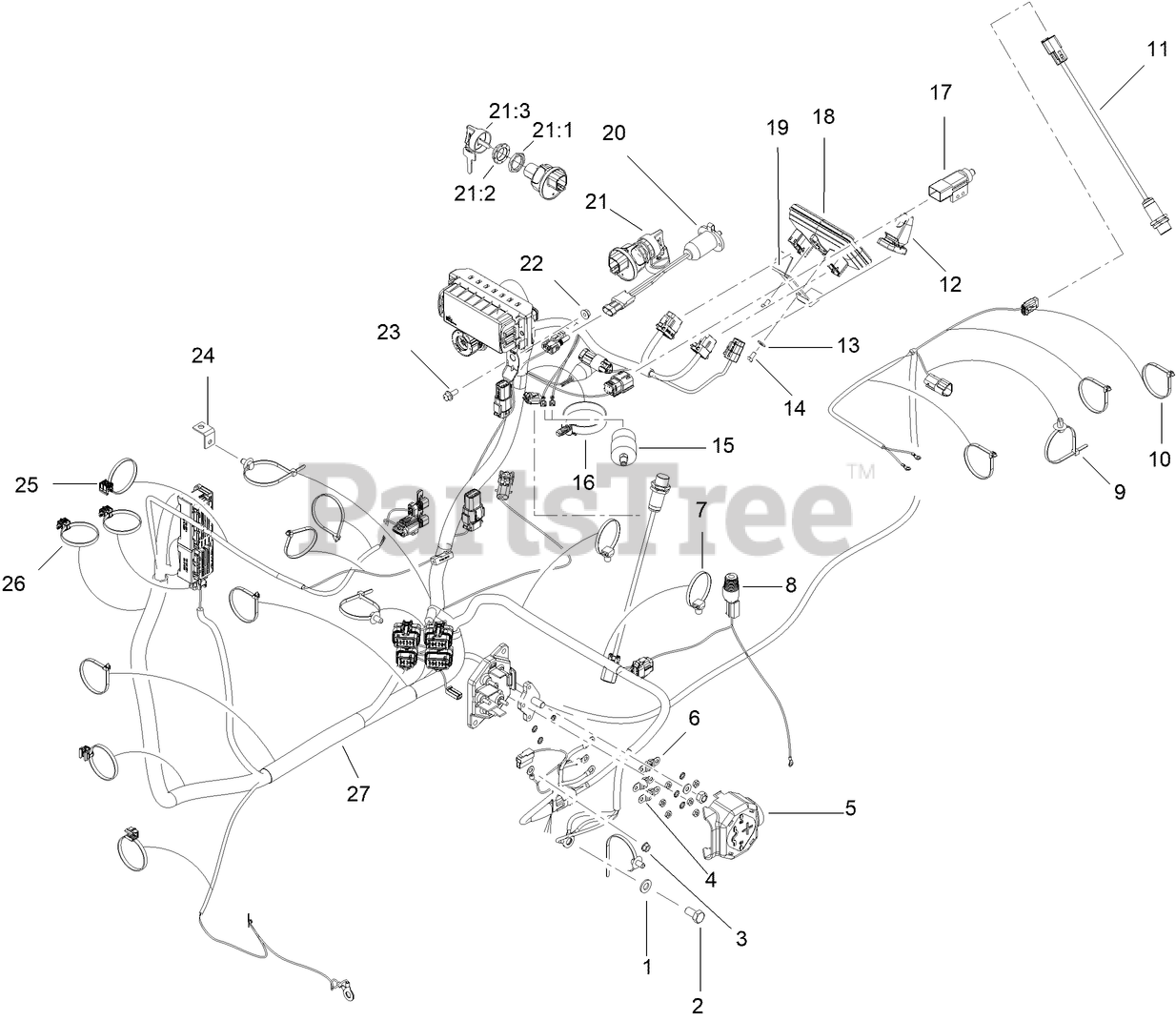

Harness and Component Assembly Parts Diagram

  • Title

1

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

4

Toro 147-5488

BK/AMI 60 AMP FUSE

$7.99

$

Usually ships in 0 days

0

5

Toro 147-5791

MAIN FUSE HOLDER (3 BK/AMI FUSES)

$

$

Currently unavailable

6

Toro 147-5487

BK/AMI 80 AMP FUSE

$7.99

$

Usually ships in 0 days

0

7

Toro 147-5484

FIR TREE SMALL TIE

$1.49

$

Usually ships in 0 days

0

8

Toro 121-6599

SWITCH-TEMP, 200 DEGREE

$272.99

$

Usually ships in 3-6 days

0

9

Toro 147-5792

FIR TREE CABLE MOUNT

$1.49

$

Usually ships in 0 days

0

10

Toro 147-5793

CABLE TIE (1/16" TO 4")

$1.49

$

Usually ships in 0 days

0

11

Toro 147-5490

PROXIMITY SWITCH 18MM NPN N/O

$159.99

$

Usually ships in 0 days

0

12

Toro 147-5496

HPW SWITCH (FRICTION HOLD)

$253.99

$

Usually ships in 0 days

0

13

Toro 137-3073

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

14

Toro 121-6320

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU292950A1

SWITCH-PRESSURE, VACUUM

$60.99

$

Usually ships in 3-6 days

0

16

Toro 147-5794

HEAVY DUTY FIR TREE (.04-.62 THK)

$6.49

$

Usually ships in 0 days

0

17

Toro 147-5493

PLUNGER SWITCH

$20.99

$

Usually ships in 0 days

0

18

Toro 147-5503

CCPILOT VI_2 3.5" DISPLAY

$841.99

$

Usually ships in 0 days

0

19

Toro 147-5506

DISPLAY BRACKET

$34.99

$

Usually ships in 0 days

0

20

Toro 147-5489

ACCESSORY SOCKET

$99.99

$

Usually ships in 0 days

0

21

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 1 left!

0

21:1

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

21:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

$2.49

$

Usually ships in 0 days

0

21:3

Toro 121-5162

SET-KEY, IGNITION

$36.99

$

Usually ships in 3-6 days

0

22

Toro 139-2619

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

23

Toro 33103-016

SCREW-HHF

$6.49

$

In Stock, Qty 8

0

24

Toro 147-5504

BRACKET

$13.99

$

Usually ships in 0 days

0

25

Toro 147-5485

EDGE CLIP SIDE VERTICAL (.12-.24)

$4.99

$

Usually ships in 0 days

0

26

Toro 147-5795

EDGE CLIP SIDE HORIZONTAL (.12-.24)

$3.49

$

Usually ships in 0 days

0

27

Toro 147-5497

FRAME HARNESS

$4221.99

$

Usually ships in 0 days

0
