25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 323000001 - 323000151) (2023) Lubrication System Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

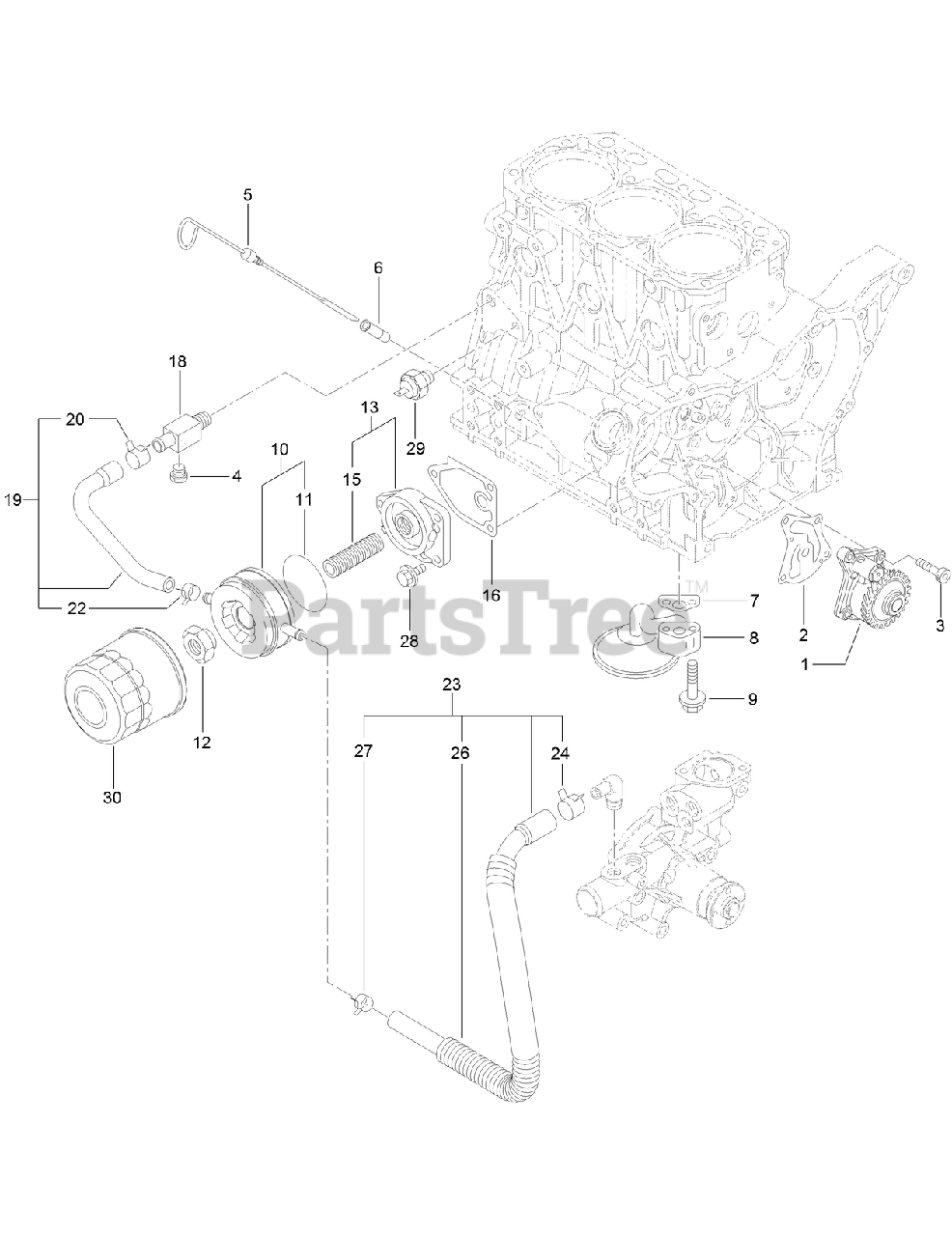

Lubrication System Assembly Parts Diagram

  • Title

1

Toro 127-4753

OIL PUMP ASM

$260.99

$

Usually ships in 3-6 days

0

2

Toro 127-3004

GASKET

$3.49

$

Usually ships in 3-6 days

0

3

Toro 125-7232

BOLT

$4.49

$

Usually ships in 3-6 days

0

4

Toro 125-7171

PLUG-DRAIN

$26.99

$

Usually ships in 3-6 days

0

5

Toro 125-6987

DIPSTICK

$86.99

$

Usually ships in 3-6 days

0

6

Toro 125-6954

GUIDE-DIPSTICK

$11.99

$

Usually ships in 3-6 days

0

7

Toro 125-7022

GASKET

$8.99

$

In Stock, only 1 left!

0

8

Toro 127-3803

PIPE ASM

$225.99

$

Usually ships in 3-6 days

0

9

Toro 125-7217

BOLT

$5.99

$

Usually ships in 3-6 days

0

10

Toro 125-7074

COOLER ASM

$1145.99

$

Usually ships in 3-6 days

0

11

Toro 125-7075

O-RING

$23.99

$

Usually ships in 3-6 days

0

12

Toro 125-7041

NUT-COOLER, OIL

$65.99

$

Usually ships in 3-6 days

0

13

Toro 125-6989

BRACKET ASM

$75.99

$

Usually ships in 3-6 days

0

15

Toro 125-7042

STUD

$47.99

$

Usually ships in 3-6 days

0

16

Toro 125-7024

GASKET

$3.99

$

Usually ships in 3-6 days

0

18

Toro 125-6990

JOINT

$73.99

$

Usually ships in 3-6 days

0

19

Toro 125-7078

PIPE ASM

$51.99

$

Usually ships in 3-6 days

0

20

Toro 125-7162

CLIP

$8.49

$

Usually ships in 3-6 days

0

22

Toro 125-7191

CLAMP-HOSE

$19.99

$

Usually ships in 3-6 days

0

23

Toro 127-3804

PIPE ASM

$35.99

$

Usually ships in 3-6 days

0

24

Toro 125-7162

CLIP

$8.49

$

Usually ships in 3-6 days

0

26

Toro 127-3805

TUBE

$17.99

$

Usually ships in 3-6 days

0

27

Toro 125-7191

CLAMP-HOSE

$19.99

$

Usually ships in 3-6 days

0

28

Toro 125-7595

BOLT

$3.49

$

Usually ships in 3-6 days

0

29

Toro 125-6918

SWITCH-OIL

$31.99

$

Usually ships in 3-6 days

0

30

Toro 125-7025

FILTER-ENGINE

$16.99

$

In Stock, Qty 20+

0
