25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 323000001 - 323000151) (2023) Rear Axle Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

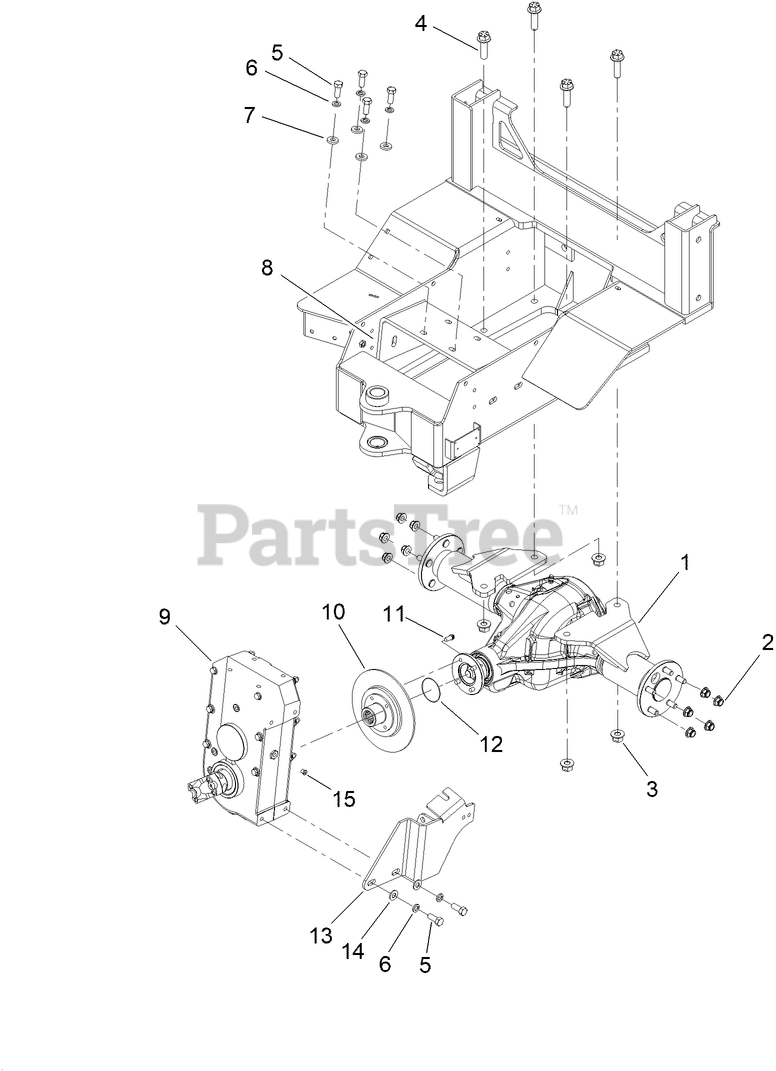

Rear Axle Assembly Parts Diagram

  • Title

1

Toro 147-5786

DANA 44 ASSEMBLY

$

$

Currently unavailable

2

Toro 131-0703

NUT-HHF

$2.49

$

In Stock, only 3 left!

0

3

Toro 147-5401

FLG LOCKNUT (5/8-NC, GR G)

$5.49

$

Usually ships in 3-6 days

0

4

Toro 104-5870

SCREW

$16.99

$

Usually ships in 3-6 days

0

5

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

7

Toro 107-3395

WASHER-HARDENED

$2.49

$

Usually ships in 3-6 days

0

8

Toro 147-5412

MOUNT-GEARBOX

$103.99

$

Usually ships in 3-6 days

0

9

Toro AU104951

TRANSMISSION ASM

$

$

Not available

10

Toro 147-5409

FLANGE-COMPANION

$581.99

$

Usually ships in 3-6 days

0

11

Toro AU79-1612

SCREW-12 PT FLANGE

$5.99

$

Usually ships in 3-6 days

0

12

Toro 147-5404

O-RING(-36), D70

$2.49

$

Usually ships in 3-6 days

0

13

Toro 147-5415

BRAKE MOUNT

$170.99

$

Usually ships in 3-6 days

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro AUR11152

VENT

$18.99

$

Usually ships in 3-6 days

0

99

Toro 136-0234

YOKE-TRANSMISSION

Note: Not illustrated

$536.99

$

Usually ships in 3-6 days

0
