25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 323000001 - 323000151) (2023) Vibratory Plow Plumbing Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

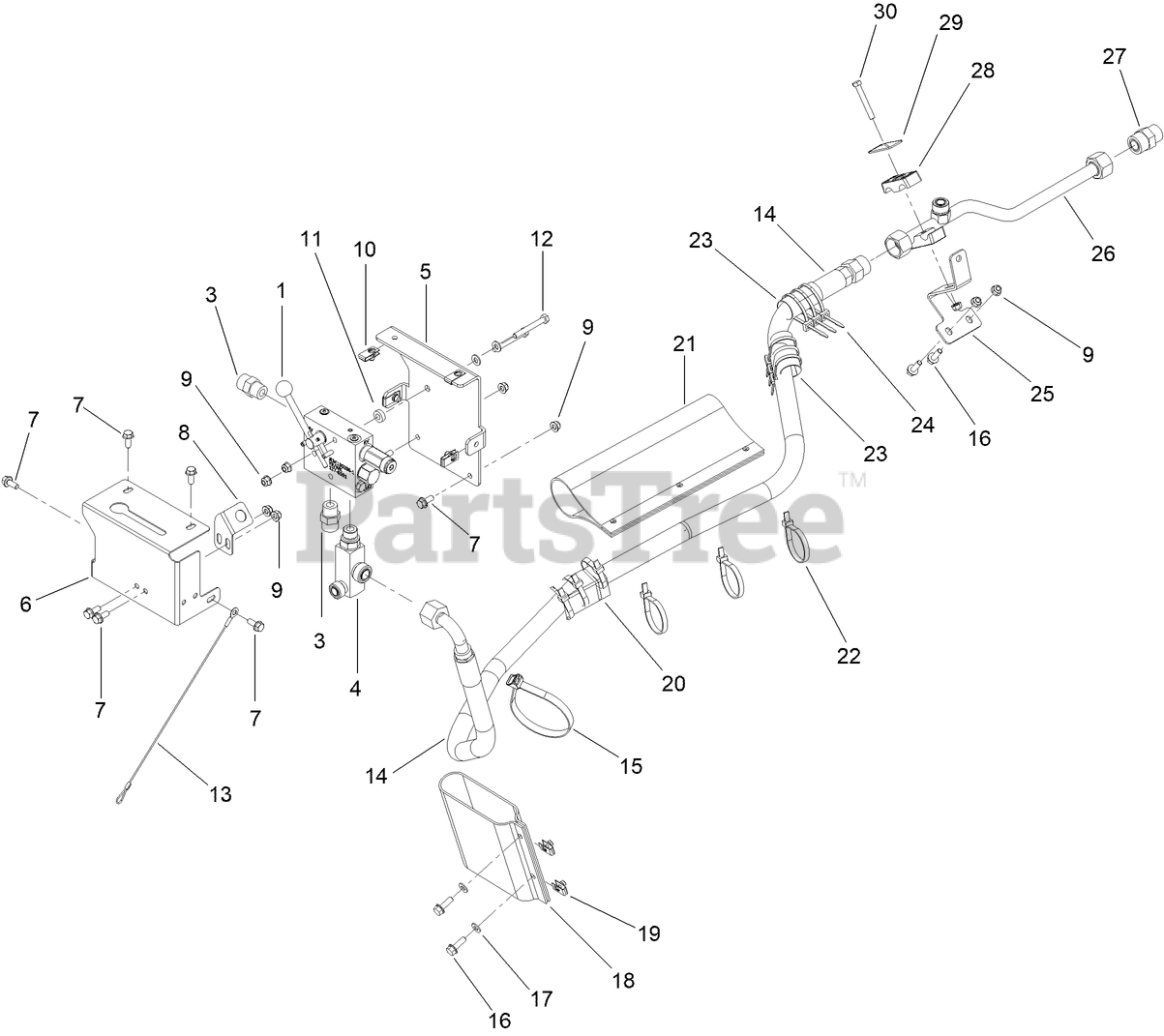

Vibratory Plow Plumbing Assembly Parts Diagram

  • Title

1

Toro 127-6591

VALVE-CONTROL, VIBE PLOW

$1331.99

$

Usually ships in 3-6 days

0

3

Toro 147-5727

CONNECTOR (10S-10O)

$9.49

$

Usually ships in 0 days

0

4

Toro 147-5435

CONNECTOR (10S-10O-12O)

$102.99

$

Usually ships in 0 days

0

5

Toro 147-5465

MOUNT PLATE-VALVE

$41.99

$

Usually ships in 0 days

0

6

Toro 147-5463

BRACKET-COVER

$44.99

$

Usually ships in 0 days

0

7

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

8

Toro 147-5464

PLATE-SENSOR (PAINTED)

$21.99

$

Usually ships in 0 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro AUH346650

NUT-U TYPE

$2.99

$

Usually ships in 3-6 days

0

11

Toro 104-1156

SPACER

$7.99

$

In Stock, only 2 left!

0

12

Toro 120-2812

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 147-5426

LANYARD LOOP/EYE 14"

$32.99

$

Usually ships in 0 days

0

14

Toro 147-5429

HOSE (12ORSM-12OFX90S-68"-3000)

$146.99

$

Usually ships in 0 days

0

15

Toro 147-5467

CABLE TIE (1/2") 20" LG

$11.99

$

Usually ships in 0 days

0

16

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro AU107409

BOOT-HOSE

$

$

Currently unavailable

19

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

20

Toro AU112950

PROTECTOR-HOSE

$30.99

$

Usually ships in 3-6 days

0

21

Toro AU123989A1

BOOT-HOSE

$69.99

$

Usually ships in 3-6 days

0

22

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

23

Toro AU112950

PROTECTOR-HOSE

$30.99

$

Usually ships in 3-6 days

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

25

Toro 147-5466

BRACKET-TUBE

$21.99

$

Usually ships in 0 days

0

26

Toro 147-5430

HARDLINE (-12 RETURN TO COOLER)

$84.99

$

Usually ships in 0 days

0

27

Toro 147-5438

CONNECTOR (12S-12O)

$13.99

$

Usually ships in 0 days

0

28

Toro 94-8105

CLAMP-TUBE

$7.49

$

In Stock, only 1 left!

0

29

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

30

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0
