25531 T - Toro Trencher Drive for Maxi Sneaker 370 Vibratory Plow (SN: 323000001 - 323999999) (2023) Pivot Assembly Parts Diagram

Trencher Drive for Maxi Sneaker 370 Vibratory Plow

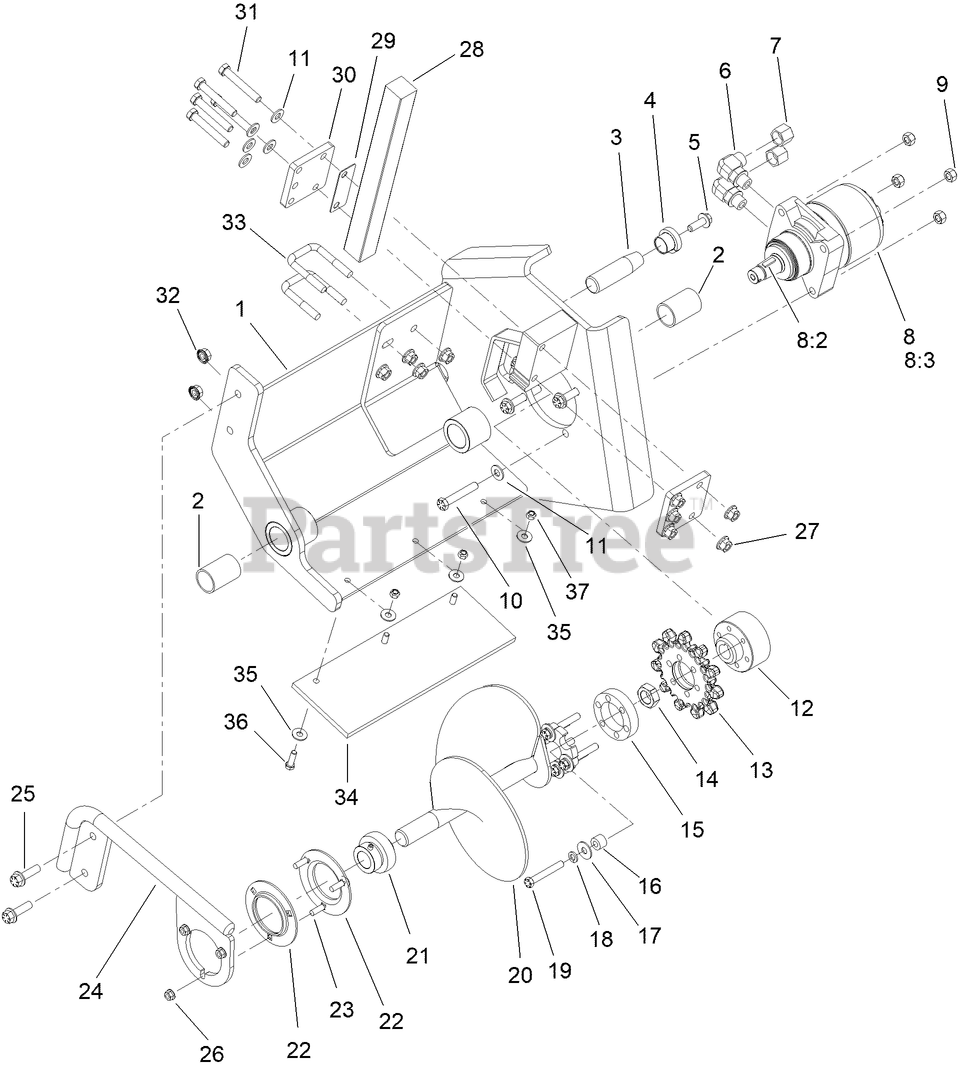

Pivot Assembly Parts Diagram

  • Title

1

Toro 147-5716

AUGER SUPPORT

$431.99

$

Usually ships in 0 days

0

2

Toro 147-5679

COMPOSITION BUSHING

$36.99

$

Usually ships in 0 days

0

3

Toro 147-5707

TAPERED PIN (4.50 X 1.25)

$109.99

$

Usually ships in 0 days

0

4

Toro 147-5708

TAPERED INSERT (1.25")

$13.99

$

Usually ships in 0 days

0

5

Toro AU100416

SCREW-HFH

$4.49

$

Usually ships in 0 days

0

6

Toro 147-5706

CONNECTOR (10S-10O90)

$26.99

$

Usually ships in 0 days

0

7

Toro 340-150

CAP

$

$

Currently unavailable

8

Toro 135-5231

MOTOR-WHEEL, RH

$708.99

$

Usually ships in 3-6 days

0

8:2

Toro 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 20+

0

8:3

Toro 103-6994

SEAL KIT

$349.99

$

Usually ships in 3-6 days

0

9

Toro 97-1206

LOCKNUT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 139-1444

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

11

Toro AU496-21053

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 147-5710

DRIVE HUB

$278.99

$

Usually ships in 0 days

0

13

Toro 147-5738

SPROCKET 11 TOOTH 35K

$227.99

$

Usually ships in 0 days

0

14

Toro 106-8159

NUT-LOCK

$30.99

$

Usually ships in 3-6 days

0

15

Toro 147-5711

AUGER BUSHING SPACER

$103.99

$

Usually ships in 0 days

0

16

Toro 147-5709

BUSHING

$20.99

$

Usually ships in 0 days

0

17

Toro 3256-40

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 137-3071

WASHER-LOCK

$6.99

$

Usually ships in 3-6 days

0

19

Toro 110-9673

SCREW-HH

$

$

Not available

20

Toro 147-5737

SPOILS AUGER - BLACK

$535.99

$

Usually ships in 0 days

0

21

Toro 147-5678

BALL BEARING - MAINT. FREE (1.25)

$80.99

$

Usually ships in 0 days

0

22

Toro 147-5676

FLANGETTE (3-BOLT, L/ZERK)

$13.99

$

Usually ships in 0 days

0

23

Toro 119-4162

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 147-5716

AUGER SUPPORT

$431.99

$

Usually ships in 0 days

0

25

Toro 100-6116

SCREW-HHF

$9.99

$

In Stock, only 1 left!

0

26

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

28

Toro 147-5685

PIVOT STUB

$172.99

$

Usually ships in 0 days

0

29

Toro 147-5712

PIVOT SHIM

$20.99

$

Usually ships in 0 days

0

30

Toro 147-5713

CLAMP PLATE

$40.99

$

Usually ships in 0 days

0

31

Toro 112-7264

SCREW-HH

$9.49

$

In Stock, only 2 left!

0

32

Toro 108-3745

NUT-HHF, WHIZ

$1.99

$

Usually ships in 3-6 days

0

33

Toro 147-5669

U-BOLT 2 INCH SQUARE

$13.99

$

Usually ships in 0 days

0

34

Toro 147-5718

FLAP-SPOILS

$43.99

$

Usually ships in 0 days

0

35

Toro 100-7403

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

36

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
