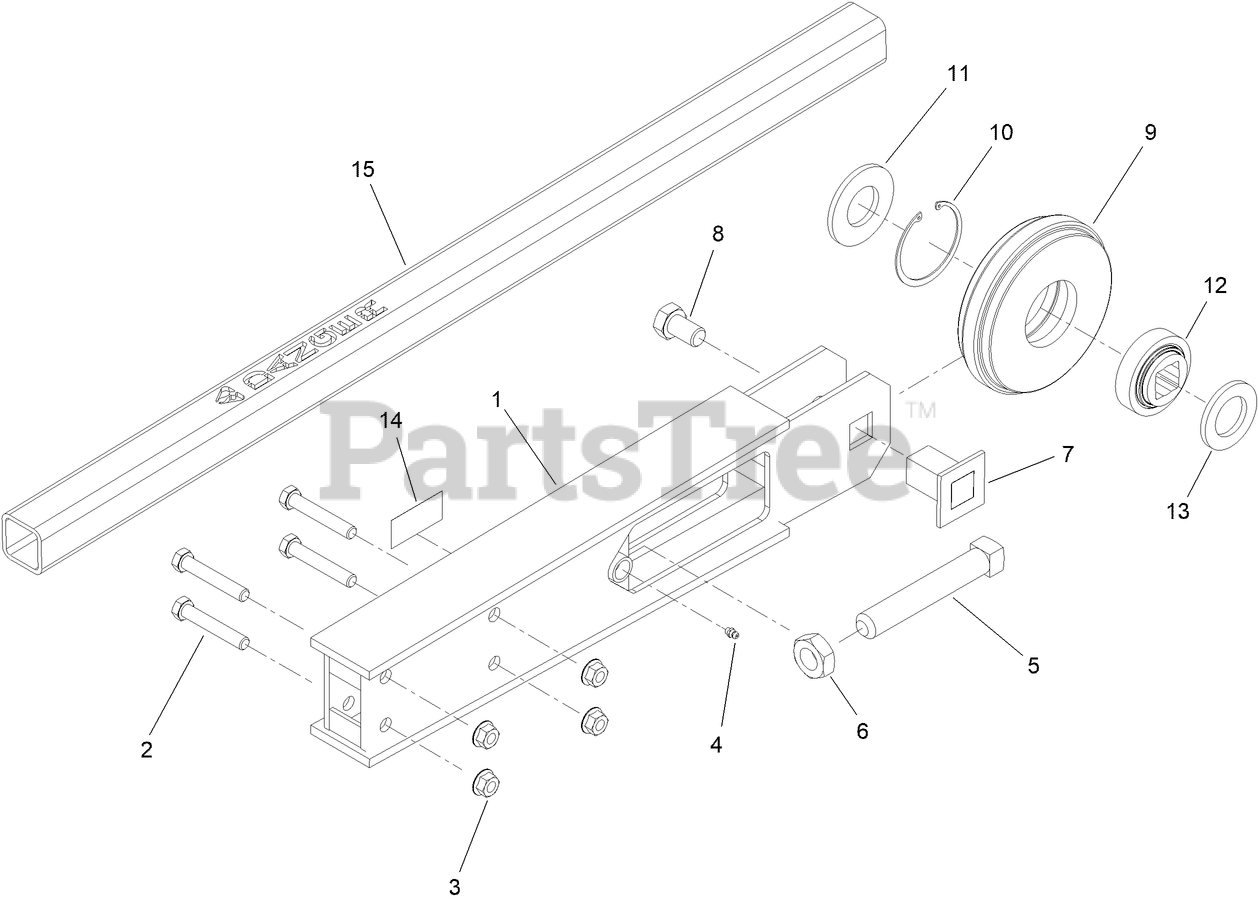

25534 E - Toro 24" Boom for Maxi Sneaker 370 Vibratory Plow 24 Inch Boom Assembly Parts Diagram

24" Boom for Maxi Sneaker 370 Vibratory Plow

24 Inch Boom Assembly Parts Diagram

  • Title

1

Toro 161-0659

ROLLER BOOM 24.0

$825.99

$

Usually ships in 0 days

0

2

Toro 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

3

Toro 108-3745

NUT-HHF, WHIZ

$1.99

$

Usually ships in 3-6 days

0

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 161-0651

SCREW-SET

$46.99

$

Usually ships in 0 days

0

6

Toro 142-7212

NUT-HEX

$2.99

$

Usually ships in 3-6 days

0

7

Toro 161-0657

IDLER SHAFT

$55.99

$

Usually ships in 0 days

0

8

Toro 161-0650

LK BOLT

$6.99

$

Usually ships in 0 days

0

9

Toro 161-0656

TAIL ROLLER

$165.99

$

Usually ships in 0 days

0

10

Toro 161-0655

INTERNAL SNAP RING 3.149

$8.99

$

Usually ships in 0 days

0

11

Toro 161-0654

DIRT SHIELD

$9.49

$

Usually ships in 0 days

0

12

Toro 104-1995

BEARING

$342.99

$

In Stock, only 1 left!

0

13

Toro 161-0653

DIRT SHIELD

$9.49

$

Usually ships in 0 days

0

14

Toro 161-0658

CHAIN TENSION ISO

$27.99

$

Usually ships in 0 days

0

15

Toro 161-0663

DANGER RESTRAINT BAR SK 24.0

$170.99

$

Usually ships in 0 days

0
