25545 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324999999) (2024) Battery and Cable Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

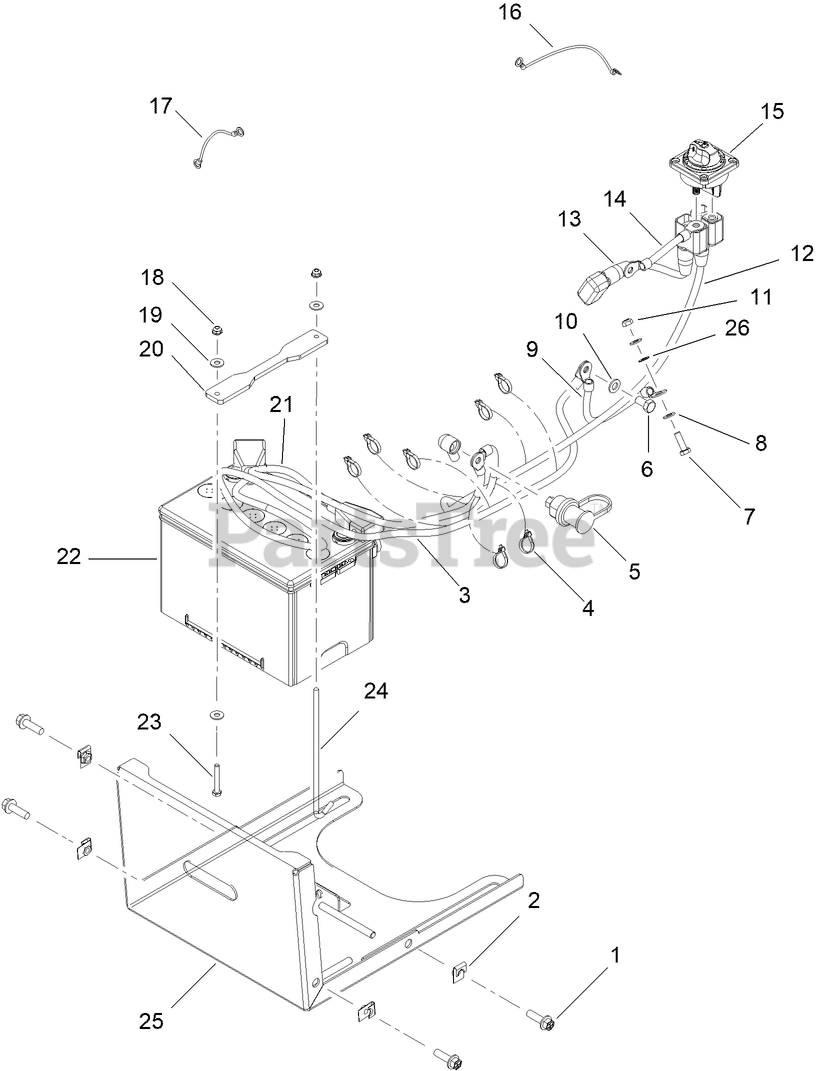

Battery and Cable Assembly Parts Diagram

  • Title

1

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

2

Toro 147-5483

NUT-SPRING

$4.49

$

Usually ships in 3-6 days

0

3

Toro 147-5499

BATT CABLE NEG. (1GA X 46 INCHES, BLK)

$79.99

$

Usually ships in 3-6 days

0

4

Toro 147-5793

CABLE TIE (1/16" TO 4")

$1.49

$

Usually ships in 3-6 days

0

5

Toro 147-5486

BATTERY JUMPER TERMINAL (RED)

$53.99

$

Usually ships in 3-6 days

0

6

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 147-5491

GROUND STRAP

$38.99

$

Usually ships in 3-6 days

0

10

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 97-1203

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 147-5502

JUMP START CABLE (1GA X 38 INCHES, RED)

$73.99

$

Usually ships in 3-6 days

0

13

Toro 147-5501

STARTER CABLE (1GA X 8 INCHES, RED)

$45.99

$

Usually ships in 3-6 days

0

14

Toro 147-5500

TRIFUSE CABLE (1GA X 4.25 INCHES, RED)

$26.99

$

Usually ships in 3-6 days

0

15

Toro 147-5494

SQUARE DISCONNECT SWITCH (300A)

$96.99

$

Usually ships in 3-6 days

0

16

Toro 147-5492

GROUND BRAID - L ARM PANEL TO CRUISE

$29.99

$

Usually ships in 3-6 days

0

17

Toro 147-5492

GROUND BRAID - L ARM PANEL TO CRUISE

$29.99

$

Usually ships in 3-6 days

0

18

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 120-9646

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

20

Toro 147-5510

BATTERY HOLD DOWN

$8.99

$

Usually ships in 3-6 days

0

21

Toro 147-5498

BATT CABLE POS. (1GA X 30 INCHES, RED)

$63.99

$

Usually ships in 3-6 days

0

22

Toro 147-5495

BATTERY-775CCA, 12V AGM

$467.99

$

Usually ships in 3-6 days

0

23

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 147-5505

J-HOOK

$32.99

$

Usually ships in 3-6 days

0

25

Toro 147-5796

BATTERY TRAY - WELD

$256.99

$

Usually ships in 3-6 days

0

26

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0
