25545 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324999999) (2024) Center Console and Seat Support Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

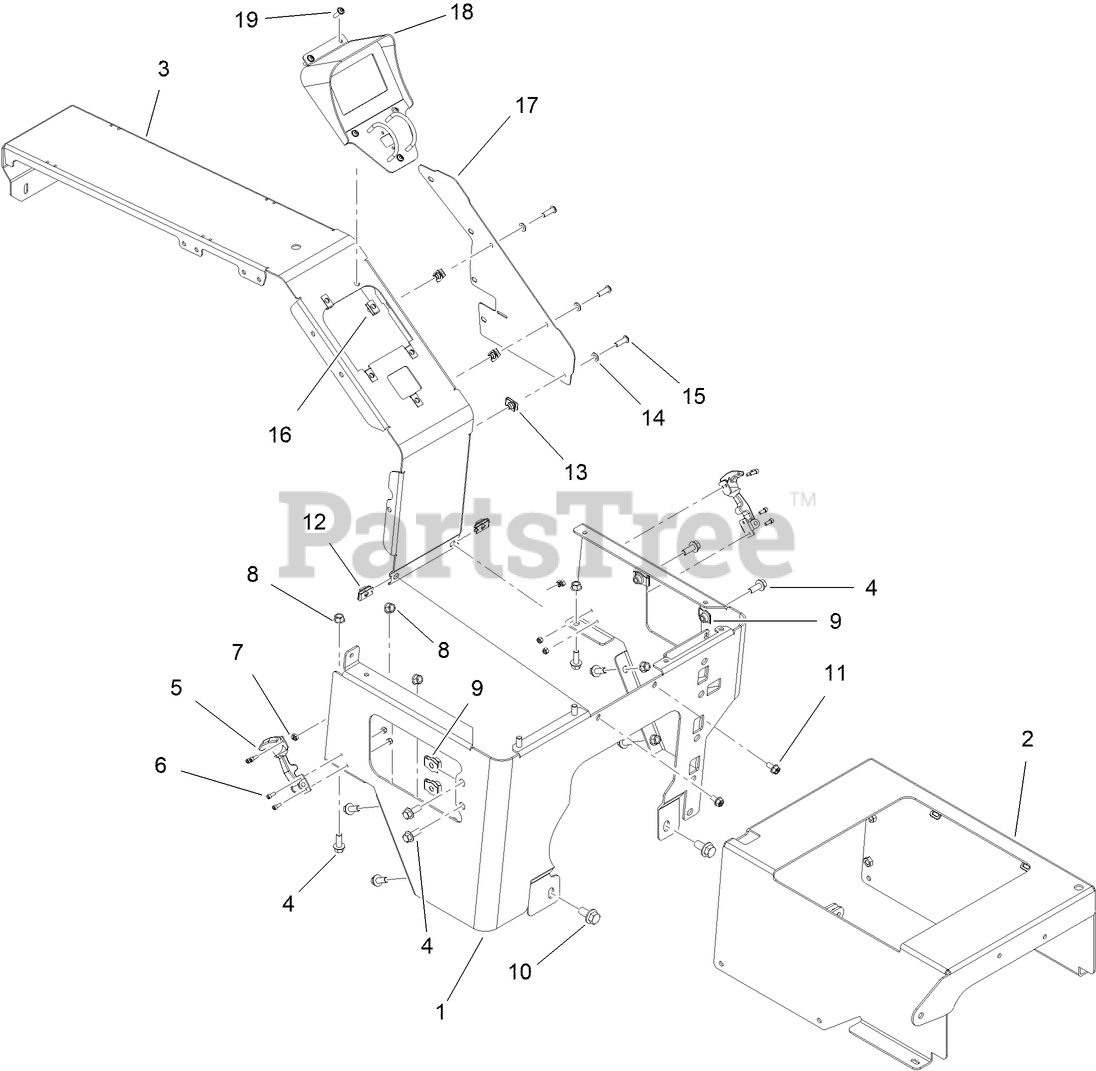

Center Console and Seat Support Assembly Parts Diagram

  • Title

1

Toro 147-5524

CONSOLE-BOTTOM WELDED (TORO RED)

$1053.99

$

Usually ships in 3-6 days

0

2

Toro 147-5523

SUPPORT, SEAT WELDED (TORO RED)

$493.99

$

Usually ships in 3-6 days

0

3

Toro 147-5549

SUPPORT

$343.99

$

Usually ships in 3-6 days

0

4

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

5

Toro ST35289

LATCH-FLEX, DRAW

$53.99

$

Usually ships in 3-6 days

0

6

Toro 147-5558

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

8

Toro 32128-36

NUT-HF

$2.49

$

Usually ships in 3-6 days

0

9

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

10

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

11

Toro 3234-14

SCREW-HHF

$2.49

$

In Stock, Qty 9

0

12

Toro CSP11800

NUT-THICK, TINNERMAN

$10.99

$

Usually ships in 3-6 days

0

13

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

14

Toro 87-7510

Washer-Flat

$

$

Currently unavailable

15

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

16

Toro AU100861

NUT-U

$5.99

$

Usually ships in 3-6 days

0

17

Toro 147-5556

PLATE-CONTROLS SIDE

$21.99

$

Usually ships in 3-6 days

0

18

Toro 147-5550

MOUNT-DISPLAY

$184.99

$

Usually ships in 3-6 days

0

19

Toro 134-3741

SCREW-HHF

$

$

Currently unavailable
