25545 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324999999) (2024) Hydraulic Variable Pump Assembly No. AU239918A1 Parts Diagram

Maxi Sneaker 370 Vibratory Plow

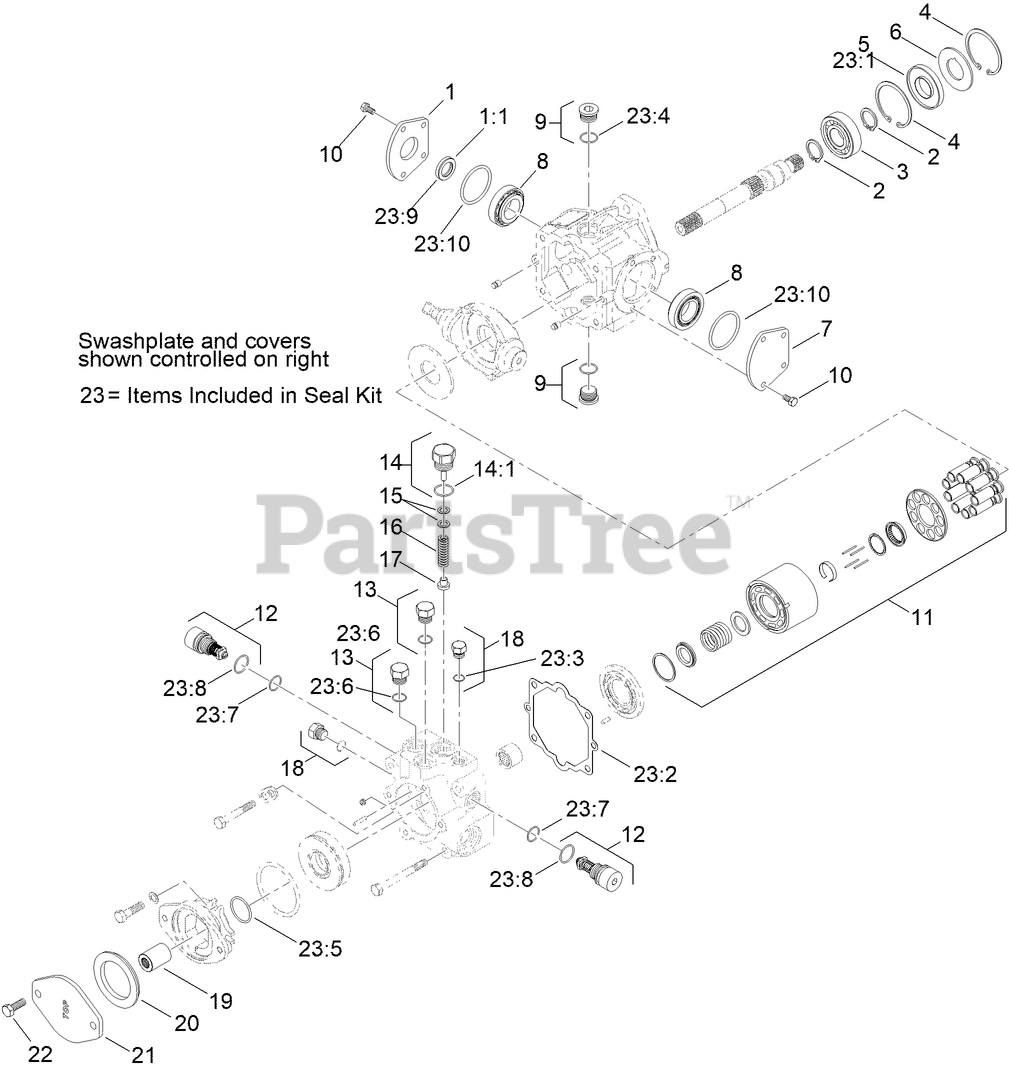

Hydraulic Variable Pump Assembly No. AU239918A1 Parts Diagram

  • Title

1

Toro 110-6499

TRUNNION COVER ASM

$407.99

$

Usually ships in 3-6 days

0

1:1

Toro 110-6478

SEAL-LIP

$62.99

$

Usually ships in 3-6 days

0

2

Toro 69-3170

RING-RETAINING

$17.99

$

Usually ships in 3-6 days

0

3

Toro 75-0460

BEARING-BALL

$272.99

$

Usually ships in 3-6 days

0

4

Toro 69-3200

RING-RETAINING

$31.99

$

Usually ships in 3-6 days

0

5

Toro 110-6471

SEAL-LIP

$78.99

$

Usually ships in 3-6 days

0

6

Toro 95-4400

WASHER-BACKUP

$12.99

$

Usually ships in 3-6 days

0

7

Toro 84-0440

COVER-TRUNNION

$364.99

$

Usually ships in 3-6 days

0

8

Toro 110-6483

BEARING KIT

$195.99

$

Usually ships in 3-6 days

0

9

Toro 69-3130

PLUG

$97.99

$

Usually ships in 3-6 days

0

10

Toro 112-0151

SCREW

$6.99

$

Usually ships in 3-6 days

0

11

Toro 127-6247

CYLINDER BLOCK KIT

$2577.99

$

Usually ships in 3-6 days

0

12

Toro 127-6228

VALVE-SOLENOID, CHECK

$417.99

$

Usually ships in 3-6 days

0

13

Toro 88-8210

See Supercession: 67-8030
(Superseded to 67-8030)

$

$

Not available

14

Toro 110-6486

PLUG-RELIEF, CHARGE

$104.99

$

Usually ships in 3-6 days

0

14:1

Toro 28-3570

O-RING

$6.99

$

Usually ships in 3-6 days

0

15

Toro 92-1353

SHIM KIT

$57.99

$

Usually ships in 3-6 days

0

16

Toro 110-6474

SPRING

$49.99

$

Usually ships in 3-6 days

0

17

Toro 84-0480

POPPET-RELIEF, CHARGE

$84.99

$

Usually ships in 3-6 days

0

18

Toro 94-9415

PLUG ASM

$

$

Not available

19

Toro 127-6226

COUPLING

$162.99

$

Usually ships in 3-6 days

0

20

Toro 107-4377

SEAL-A, PAD

$80.99

$

Usually ships in 3-6 days

0

21

Toro 107-4378

COVER

$147.99

$

Usually ships in 3-6 days

0

22

Toro 69-3400

SCREW

$2.49

$

Usually ships in 3-6 days

0

23

Toro 910643

SEAL KIT

$

$

Currently unavailable

23:1

SEAL-LIP

Note: Not serviced separately

$

$

Not available

23:2

Gasket-End Cap

Note: Not serviced separately

$

$

Not available

23:3

O-RING

Note: Not serviced separately

$

$

Not available

23:4

O-RING

Note: Not serviced separately

$

$

Not available

23:5

O-RING

Note: Not serviced separately

$

$

Not available

23:6

O-RING

Note: Not serviced separately

$

$

Not available

23:7

O-RING

Note: Not serviced separately

$

$

Not available

23:8

R-RING

Note: Not serviced separately

$

$

Not available

23:9

SEAL-LIP

Note: Not serviced separately

$

$

Not available

23:10

O-RING

Note: Not serviced separately

$

$

Not available
