25546 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324999999) (2024) Trencher Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

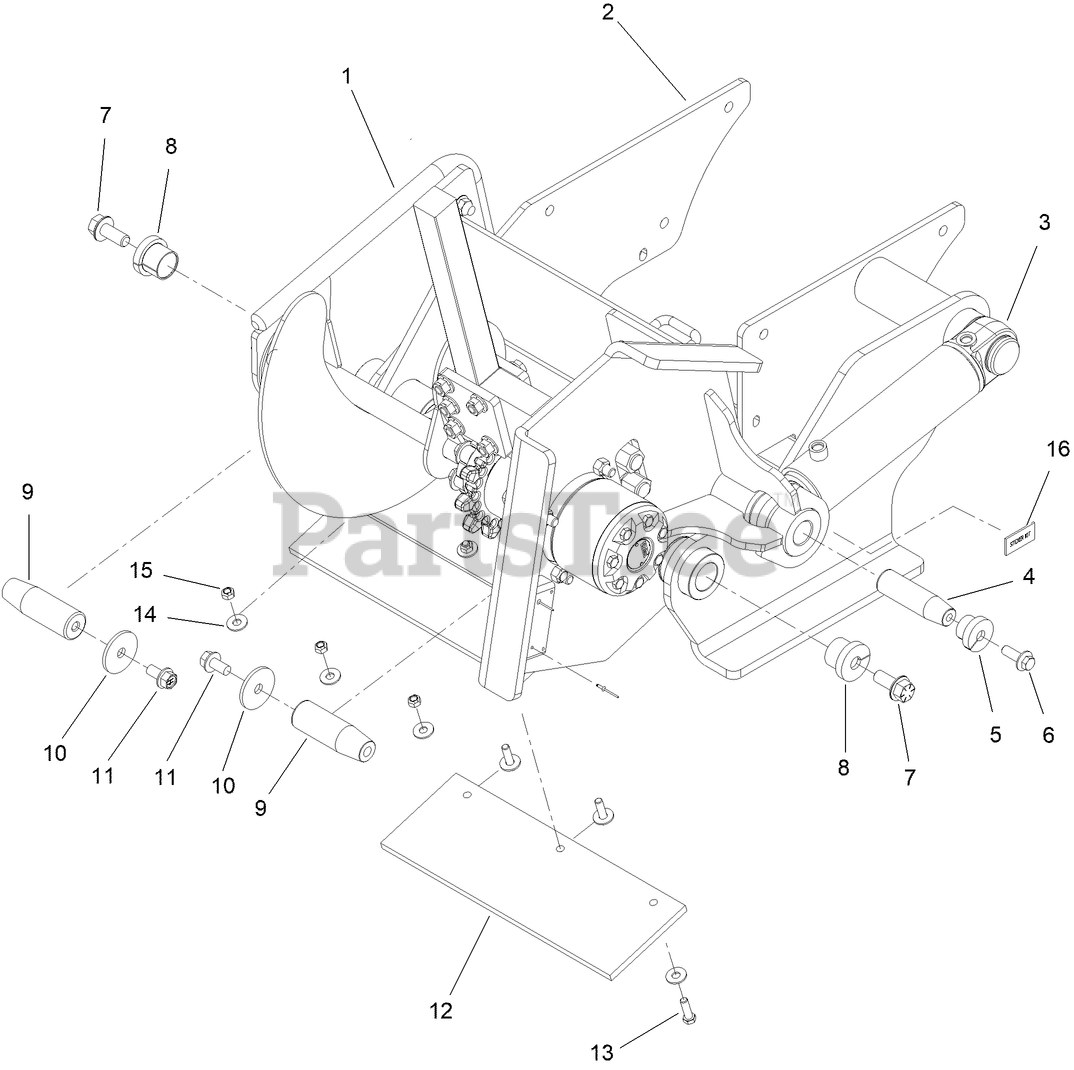

Trencher Assembly Parts Diagram

  • Title

1

PIVOT ASSEMBLY

Note: Not serviced separately

$

$

Not available

2

Toro 147-5715

ATTACHMENT PLATE

$1765.99

$

Usually ships in 3-6 days

0

3

Toro 147-5732

CYL (2.5 X 1.25 X 8.0)

$1501.99

$

Usually ships in 3-6 days

0

3:1

Toro 147-5835

SEAL REPAIR KIT

Note: Not illustrated

$55.99

$

Usually ships in 3-6 days

0

4

Toro 147-5707

TAPERED PIN (4.50 X 1.25)

$120.99

$

Usually ships in 3-6 days

0

5

Toro 147-5708

TAPERED INSERT (1.25")

$14.99

$

Usually ships in 3-6 days

0

6

Toro AU100416

SCREW-HFH

$3.99

$

Usually ships in 3-6 days

0

7

Toro 147-5399

FLG BLT (5/8-NC X 1-1/2", GR 8)

$6.99

$

Usually ships in 3-6 days

0

8

Toro 147-5733

TAPERED INSERT (1.5")

$20.99

$

Usually ships in 3-6 days

0

9

Toro 147-5734

TAPERED PIN (1.500" X 4.600")

$155.99

$

Usually ships in 3-6 days

0

10

Toro 147-5583

WASHER (1/2") ZP

$3.99

$

Usually ships in 3-6 days

0

11

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

12

Toro 147-5718

FLAP-SPOILS

$48.99

$

Usually ships in 3-6 days

0

13

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Toro 100-7403

WASHER-FLAT

$2.49

$

In Stock, Qty 5

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

25531E MAXI SNEAKER TRENCHER DECAL KIT

Note: Not serviced separately

$

$

Not available

16:1

Toro 147-5807

DANGER CHAIN AND AUGER ISO

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days

0

16:2

Toro 147-5641

TIE DOWN LOCATION

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

16:3

Toro 147-5654

PLOW/TRENCHER LIFT SELECT

Note: Not illustrated

$55.99

$

Usually ships in 3-6 days

0

16:4

Toro 147-5655

DIGGING CHAIN FORWARD/REVERSE

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0
