255707-0101-01 - Briggs & Stratton Vertical Engine Electric Starter Parts Diagram

Vertical Engine

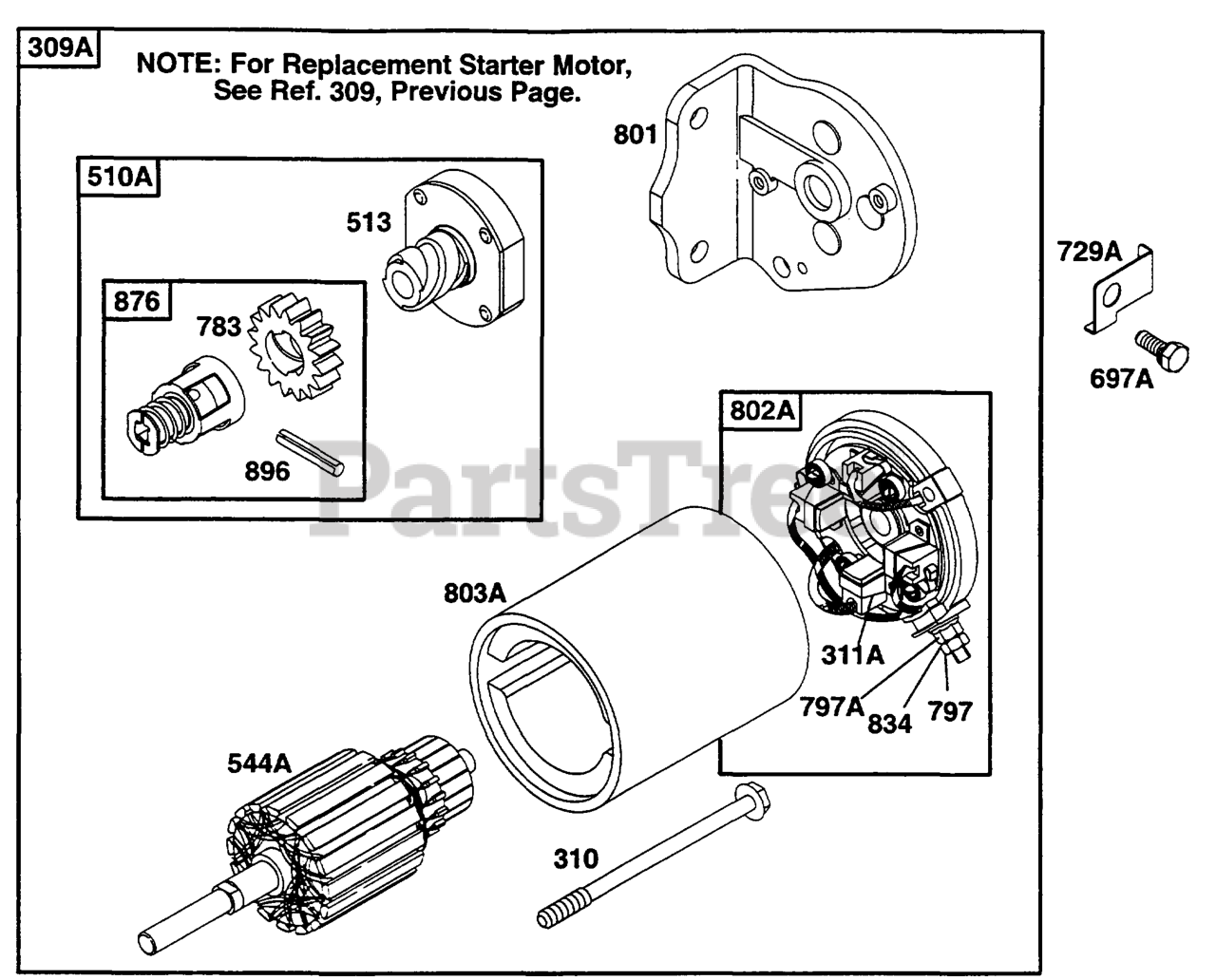

Electric Starter Parts Diagram

  • Title

310

Briggs & Stratton 94003

Screw, Hex Flange H (For 3-5/8" Housing Length)
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311A

Briggs & Stratton 395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

510A

Briggs & Stratton 495878

Drive-Starter (For 4-3/8" Housing Length)
(Superseded to 696540)

$29.99

$

In Stock, only 1 left!

0

513

Briggs & Stratton 398003

Clutch, Starter Ass
(Superseded to 692024)

$21.99

$

Usually ships in 2-12 days

0

544A

Briggs & Stratton 390837

Armature-Str (For 3-5/8" Housing Length)

$159.99

$

In Stock, only 1 left!

0

697A

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

729A

Briggs & Stratton 224723

Retainer-Wire

$5.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 693058

Gear-Starter (For Plastic Ring Gear Only)
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

783

Briggs & Stratton 693059

Gear-Pinion (For Aluminum Ring Gear Only)
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

797A

Briggs & Stratton 693167

NUT

$4.49

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 497626

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 395537

Cap-End (For 3-5/8" Housing Length)

$54.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 398159

Housing-Starter (For 3-5/8" Housing Length)

$80.99

$

Usually ships in 2-12 days

0

834

Briggs & Stratton 92507

Lockwasher, Interna
(Superseded to 690288)

$3.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 495877

Kit-Gear (For 4-3/8" Housing)
(Superseded to 696540)

$29.99

$

In Stock, only 1 left!

0

896

Briggs & Stratton 94288

Pin, Spiral (Copper)
(Superseded to 691641)

$4.99

$

In Stock, only 1 left!
