257 - Husqvarna Chainsaw (SN: 19942300001 - 19960100000) STARTER Parts Diagram

Chainsaw

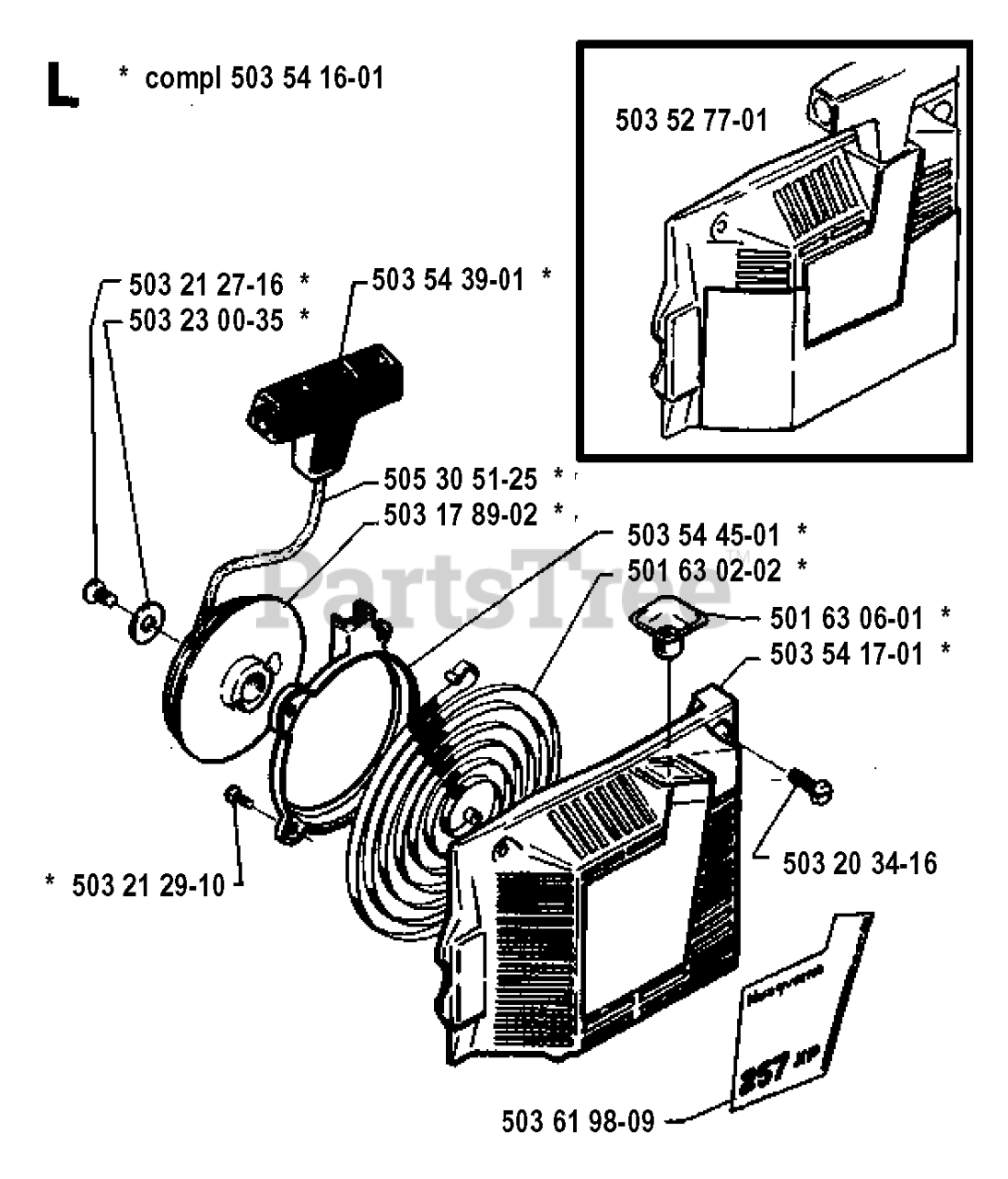

STARTER Parts Diagram

  • Title

501 63 06-01

Husqvarna 501630601

SLEEVE

$10.99

$

In Stock, only 2 left!

0

503 52 77-01

Husqvarna 503527701

WINTER KIT/254/257/262

$

$

Not available

503 23 00-35

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 18

0

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, Qty 9

0

503 61 98-09

Husqvarna 503619809

STICKER

$

$

Not available

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$8.99

$

In Stock, Qty 13

0

503 21 27-16

Husqvarna 503212716

SCREW

$6.49

$

In Stock, Qty 20+

0

503 17 89-02

Husqvarna 503178902

STARTER PULLEY

$23.99

$

In Stock, only 4 left!

0

503 21 29-10

Husqvarna 503212910

SCREW

$7.49

$

In Stock, only 1 left!

0

503 54 45-01

Husqvarna 503544501

WASHER

$

$

Not available

503 20 34-16

Husqvarna 503203416

SCREW
(Superseded to 503215316)

$5.99

$

Usually ships in 3-10 days

0

501 63 02-02

Husqvarna 501630202

RECOIL SPRING
(Superseded to 501630203)

$29.99

$

In Stock, Qty 7

0

503 54 17-01

Husqvarna 503541701

STARTER HOUSING

$45.99

$

Usually ships in 3-10 days

0

503 54 16-01

Husqvarna 503541601

STARTER ASS'Y

$

$

Not available
