2580 - Weed Eater Blower, Electric Electric Blower/Blower Assembly Parts Diagram

Blower, Electric

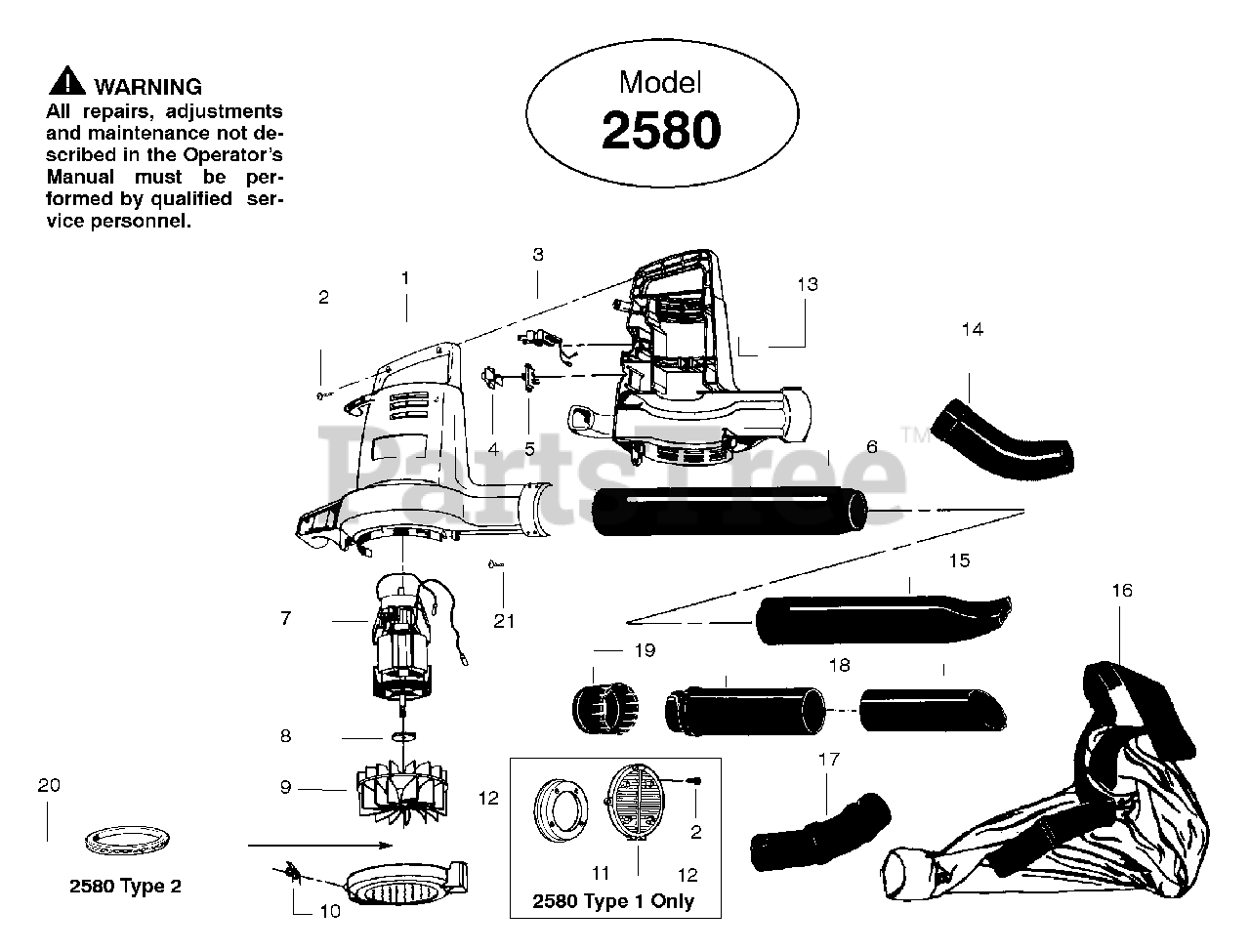

Electric Blower/Blower Assembly Parts Diagram

  • Title

1

Poulan 530401342

Housing Set Type 1, 2, 3

$

$

Not available

1

Poulan 530401839

Housing Set Type 4

$

$

Not available

2

Poulan 530016317

Screw

$

$

Not available

3

Poulan 530401787

Wire Harness Type 1 & 2

Note: (Incls. Switch)

$

$

Not available

3

Poulan 530403778

Wire Harness Type 3 & 4
(Superseded to 545124301)

Note: (Incls. Switch)

$

$

Not available

4

Poulan 530401008

Switch Cover

$

$

Not available

5

Poulan 530400970

Switch Type 1 & 2
(Superseded to 530400827)

$

$

Not available

5

Poulan 530401094

Switch Type 3 & 4

$

$

Not available

6

Poulan 530036434

Blower Tube Type 1-3

$

$

Not available

6

Poulan 534352705

Blower Tube Type 4

$

$

Not available

7

Poulan 530400724

Motor Ass'y. 2580 Type 1 & 2

$

$

Not available

7

Poulan 530401177

Motor Ass'y. 2580 Type 3 & 4

$

$

Not available

8

Poulan 530400897

Washer

$

$

Not available

9

Poulan 530401097

Impeller

$

$

Not available

10

Poulan 530351417

Spring

$

$

Not available

11

Poulan 530400812

Inlet Baffle - Type 1

$

$

Not available

12

Poulan 530402140

Inlet Cover
(Superseded to 530403574)

$

$

Not available

13

Poulan 530400089

Pad

$

$

Not available

14

Poulan 530401100

Concentrator Nozzle Type 1, 2 & 3

$

$

Not available

14

Poulan 530401318

Concentrator Nozzle Type 4

$

$

Not available

15

Poulan 530094662

Nozzle Type 1-3

$

$

Not available

15

Poulan 530053890

Nozzle Type 4

$

$

Not available

16

Poulan 530095114

Vacuum Bag Kit Type 1, 2 & 3

$37.99

$

Usually ships in 3-10 days

0

16

Poulan 530402533

Vacuum Bag Kit Type 4

$34.99

$

Usually ships in 3-10 days

0

17

Poulan 530095118

Elbow (Type 1,2,3)

$

$

Not available

18

Poulan 530069270

Vacuum Tube Kit

$

$

Not available

19

Poulan 530401250

Funnel (Type 2)

$

$

Not available

20

Poulan 530401248

Inlet Orifice (Type 2)

$

$

Not available

21

Poulan 530015994

Screw (Type 4)

$

$

Not available

Poulan 530087937

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530036444

Warning Decal

Note: Not Shown

$

$

Not available
