259724 - Poulan Lawn Tractor (2001)

Lawn Tractor

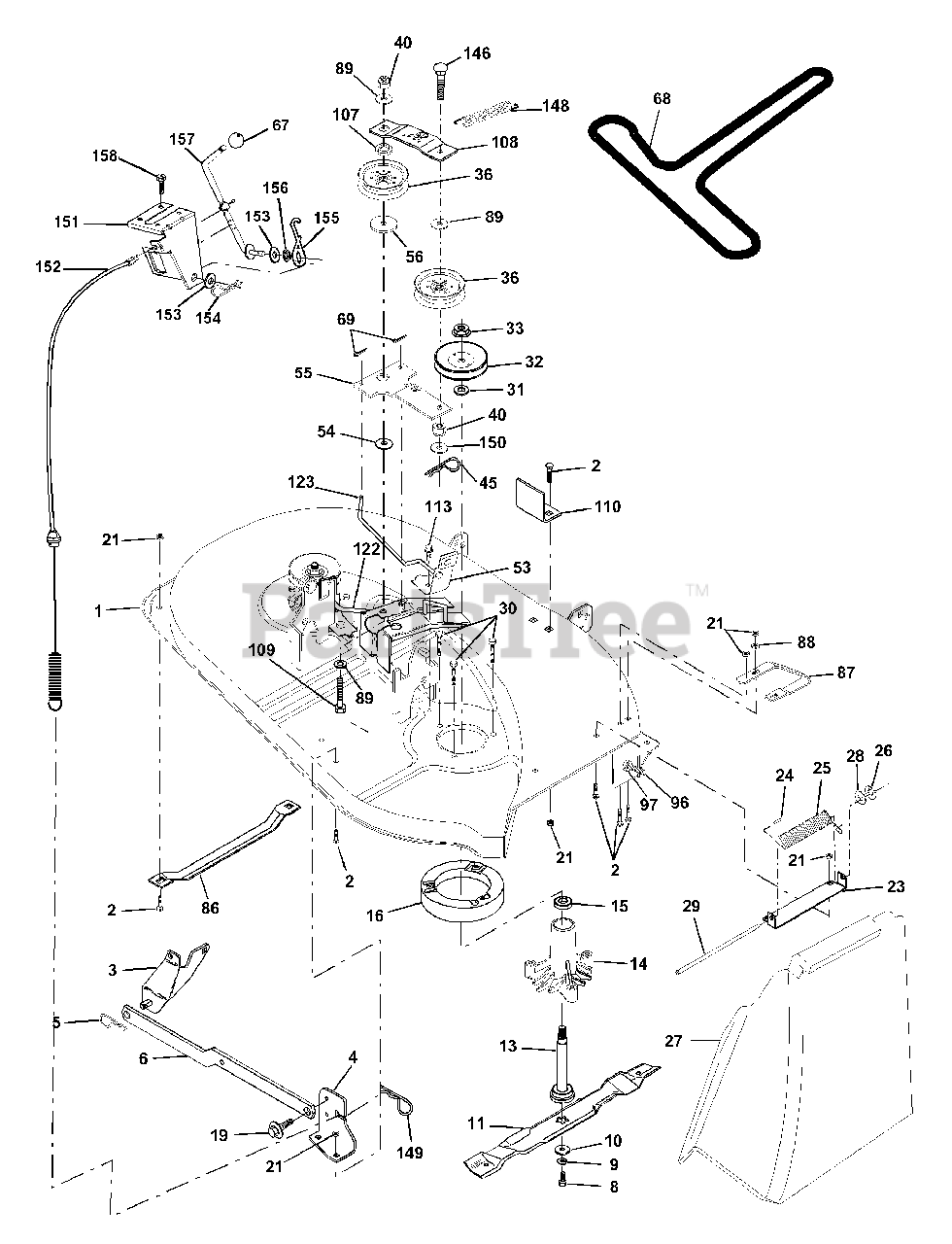

259724 - Poulan Lawn Tractor (2001) > Parts Diagrams (11) > Mower Deck

  • Title
170280

1

Mower Deck Assembly

Part# 170280

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140506

2

Bolt

Part# 72140506 (Superseded to 872140506)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $1.67

138017

3

Bracket Assembly,Sway Bar

Part# 138017 (Superseded to 532138017)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

169970

4

Bracket Sway Bar Deck

Part# 169970

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $4.58

4939M

5

Retainer Spring

Part# 4939M

OEM Warranty Repair Part for Murray

Not available

130832

6

Arm, Suspension, Rear

Part# 130832 (Superseded to 532130832)

OEM Warranty Repair Part for Electrolux/AYP

Not available

850857

8

Bolt, Hex 3/8-24 x 1.25 Gr. 8

Part# 850857 (Superseded to 532850857)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

10030600

9

Washer, Lock Hvy Hlcl 3/8

Part# 10030600 (Superseded to 810030600)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140296

10

Washer, Hardened

Part# 140296 (Superseded to 532140296)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

138497

11

Blade, Mower 38

Part# 138497 (Superseded to 532127842)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $14.52

137645

13

Shaft Assembly, Mandrel, Vented

Part# 137645 (Superseded to 532137645)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $20.11

128774

14

Housing, Mandrel, Vented

Part# 128774 (Superseded to 532128774)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $25.70

110485X

15

Bearing, Ball, Mandrel

Part# 110485X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

174493

16

Stripper, Vented Mower Deck

Part# 174493 (Superseded to 532174493)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

132827

19

Bolt, Shoulder

Part# 132827 (Superseded to 532132827)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

73680500

21

Nut Crownlock 5/16-18

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

137607

23

Bracket, Mower Deflector

Part# 137607 (Superseded to 532137607)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

105304X

24

Cap, Sleeve

Part# 105304X (Superseded to 532105304)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

123713X

25

Spring, Torsion, Deflector

Part# 123713X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.58

110452X

26

Nut, Push

Part# 110452X (Superseded to 532110452)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

106736X428

27

Shield, Deflector

Part# 106736X428

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $29.06

19111016

28

Washer 11/32 x 5/8 x 16 Ga.

Part# 19111016 (Superseded to 819111016)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

106735X

29

Rod, Hinge

Part# 106735X (Superseded to 532106735)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

157722

30

Screw Thdrol Washer Head

Part# 157722 (Superseded to 532157722)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.23

129963

31

Washer, Spacer

Part# 129963 (Superseded to 532129963)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

153532

32

Pulley, Mandrel

Part# 153532

OEM Warranty Repair Part for Murray

Not available

178342

33

Nut, Toplock, Flanged

Part# 178342 (Superseded to 532178342)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

131494

36

Pulley, Idler, Flat

Part# 131494 (Superseded to 532104360)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680600

40

Nut Crownlock 3/8-16

Part# 73680600 (Superseded to 873680600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

4497H

45

Retainer, Spring

Part# 4497H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

130840

53

Brake Assembly

Part# 130840 (Superseded to 532130840)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $10.05

133943

54

Washer, Hardened

Part# 133943 (Superseded to 532133943)

OEM Warranty Repair Part for Electrolux/AYP

Not available

133840

55

Idler Arm Assembly

Part# 133840 (Superseded to 532133840)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

165723

56

Spacer, Retainer

Part# 165723 (Superseded to 532165723)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

106932X

67

Knob RD 3/8-16 Plstc Thd

Part# 106932X (Superseded to 532106932)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

144200

68

Belt

Part# 144200 (Superseded to 532144200)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $34.65

76020312

69

Pin, Cotter 3/32 x 3/4

Part# 76020312

OEM Warranty Repair Part for Electrolux/AYP

Not available

7631J

86

Runner, LH

Part# 7631J (Superseded to 532007631)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

128772

87

Runner, RH

Part# 128772

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

19111216

88

Washer 11/32 x 3/4 x 16 Ga

Part# 19111216 (Superseded to 819111216)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

19131612

89

Washer 13/32 x 1 x 12 Ga

Part# 19131612 (Superseded to 819131612)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.46

74930620

96

Bolt 3/8-16 x 1-1/4

Part# 74930620 (Superseded to 874930620)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

73930600

97

Nut Centerlock 3/8-16

Part# 73930600

OEM Warranty Repair Part for Electrolux/AYP

Not available

133502

107

Spacer, Retainer

Part# 133502 (Superseded to 532133502)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

133503

108

Stiffener, Idler Arm

Part# 133503 (Superseded to 532133503)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74760640

109

Bolt, Hex Head 3/8-16 x 2-1/2

Part# 74760640 (Superseded to 874760640)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

142587

110

Upstop Deck Front 38

Part# 142587

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

17060512

113

Screw 5/16-18 x 3/8

Part# 17060512

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

131289

122

Rod, Brake, LH

Part# 131289 (Superseded to 532131289)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $13.41

169971

123

Rod, Brake, RH

Part# 169971

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

165891

146

Bolt Carriage Idler

Part# 165891

OEM Warranty Repair Part for Electrolux/AYP

Not available

169022

148

Spring Return Idler

Part# 169022 (Superseded to 532169022)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.01

165898

149

Retainer Spring Yellow Zinc

Part# 165898 (Superseded to 532165898)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19091216

150

Washer 9/32 x 3/4 x 16 Ga.

Part# 19091216 (Superseded to 819091216)

OEM Warranty Repair Part for Electrolux/AYP

Not available

169670

151

Bracket Clutch

Part# 169670 (Superseded to 532169670)

OEM Warranty Repair Part for Electrolux/AYP

Not available

172758

152

Cable Clutch 38 In

Part# 172758

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $57.01

169674

153

Washer Flat 3/8" Type B

Part# 169674

OEM Warranty Repair Part for Electrolux/AYP

Not available

169675

154

Spring Retainer

Part# 169675 (Superseded to 532169675)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

169671

155

Spring Retention Lever

Part# 169671 (Superseded to 532169671)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

169672

156

Spacer

Part# 169672 (Superseded to 532169672)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

169669

157

Rod Clutch

Part# 169669 (Superseded to 532169669)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $29.06

17720410

158

Screw Hex Thd Cut 1/4-20x5/8

Part# 17720410 (Superseded to 817720410)

OEM Warranty Repair Part for Electrolux/AYP

Not available

130794

Mandrel Assembly

Part# 130794 (Superseded to 532130794)

Note: (Includes Key Numbers 13-15, 17-19, 31 and 33)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $44.66

170317

Replacement Mower, Complete

Part# 170317

OEM Warranty Repair Part for Electrolux/AYP

Not available
