25A-510A022 - Yard Machines Walk-Behind Edger (2000) (Cotter & Company) General Assembly Parts Diagram

Walk-Behind Edger

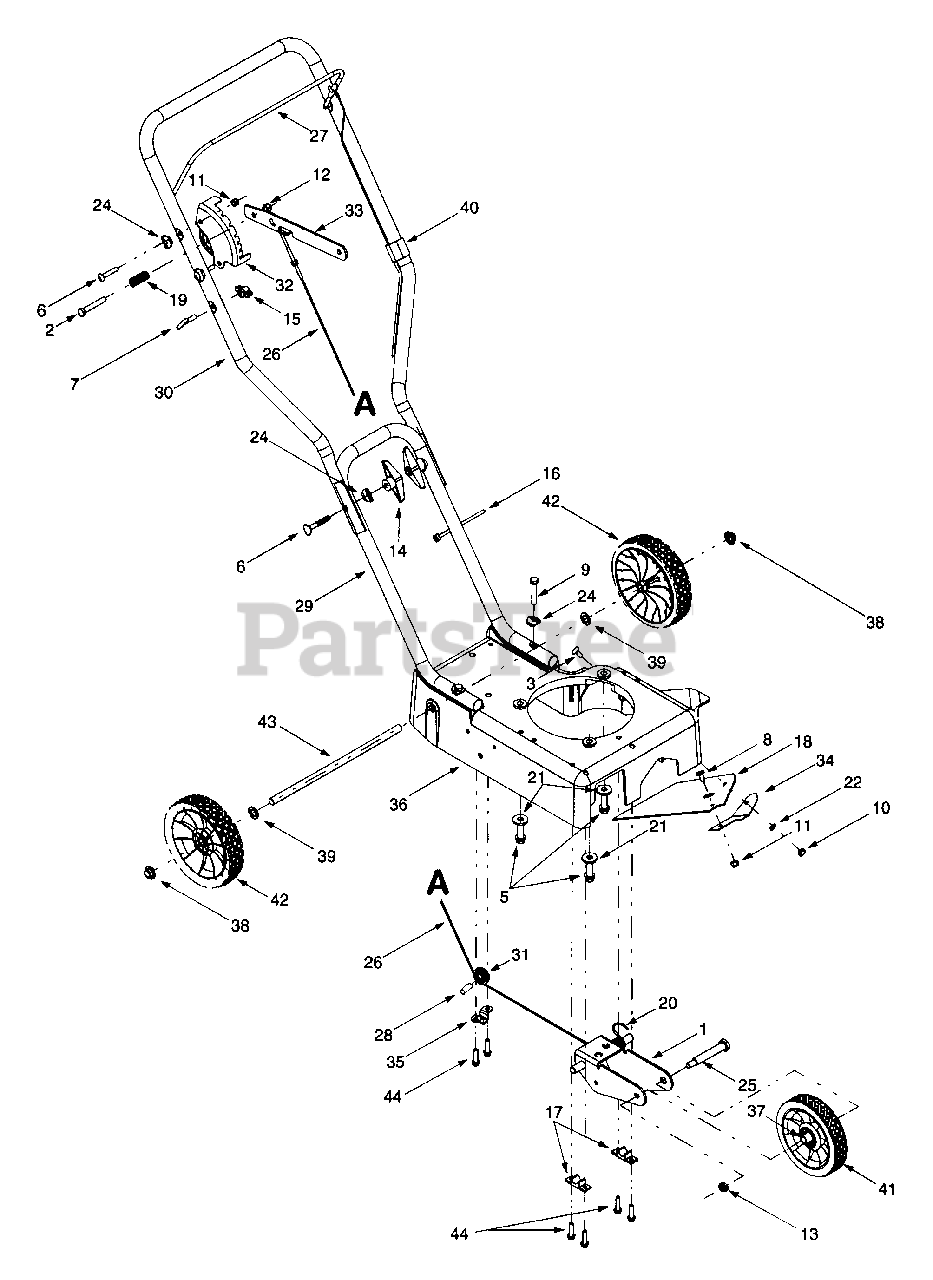

General Assembly Parts Diagram

  • Title

1

MTD 681-0141

Front Wheel Bracket Assembly

$

$

Not available

2

MTD 710-0116

Hex Cap Screw, 5/16-18 x 2.0
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 12

0

3

MTD 710-0134

Carriage Screw, 1/4-20 x.625

$4.49

$

In Stock, only 3 left!

0

?4

MTD 710-0578

Machine Screw, 1/4-20 x 1.5

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-1007

Sems Screw, 3/8-16 x 1.5

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.99

$

In Stock, Qty 10

0

7

MTD 710-1205

Eye Bolt (Rope Guide), 1/4-20

$4.49

$

In Stock, Qty 16

0

8

MTD 710-3013

Hex Cap Screw, 1/4-20 x .5

$4.99

$

In Stock, Qty 7

0

9

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.99

$

In Stock, Qty 20+

0

10

MTD 712-0287

Hex Nut, 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 712-0324

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, only 2 left!

0

12

MTD 712-0429

Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3020

Jam Lock Nut, 3/8-16
(Superseded to 912-3020)

$6.99

$

In Stock, Qty 9

0

14

MTD 720-0241

Wing Knob, 5/16-18
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

15

MTD 720-0279

Wing Knob, 1/4-20

$4.99

$

In Stock, Qty 20+

0

16

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-1931

Block Bushing, .515 x .62

$

$

Not available

18

MTD 731-1935

Discharge Deflector Shield

$

$

Not available

19

MTD 732-0369

Compression Spring, .55 x 1.37
(Superseded to 932-0369)

$10.99

$

In Stock, only 3 left!

0

20

MTD 732-0867

LH Torsion Spring, .655

$

$

Not available

21

MTD 736-0258

Flat Washer, .385 x 1.0 x .135

$4.99

$

In Stock, Qty 10

0

22

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

?23

MTD 736-0342

Flat Washer, .283 x .75 x .030

$7.99

$

Usually ships in 3-6 days

0

24

MTD 736-0451

Saddle Washer, .320 x .93

$4.99

$

In Stock, Qty 6

0

25

MTD 738-0481A

Shoulder Screw, 3/8-16, .5 x 2.62
(Superseded to 938-0481A)

$7.49

$

In Stock, Qty 7

0

26

MTD 746-1094

Depth Index Cable, 44.5"

$44.99

$

Usually ships in 3-6 days

0

27

MTD 747-0976A

Blade Control Bail
(Superseded to 747-0976B)

Variations

747-0976A-0637

MTD 747-0976A-0637

Blade Control Bail - POWDER BLACK (0637)

$26.99

$

In Stock, only 2 left!

0

$26.99

$

In Stock, only 2 left!

0

28

MTD 747-0993

Cable Roller Rod

$

$

Not available

29

MTD 749-1078

Lower Handle

Variations

749-1078-0637

MTD 749-1078-0637

No Longer Available HANDLE LOW - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 749-1225

Upper Handle
(Superseded to 749-1225-0637)

Variations

749-1225-0637

MTD 749-1225-0637

HANDLE UPPER 28.5" - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 756-0625

Cable Roller

$9.99

$

In Stock, Qty 5

0

32

MTD 781-0741

Depth Index Bracket

$

$

Not available

33

MTD 781-0742

Depth Index Lever
(Superseded to 781-0742-0637)

Variations

781-0742-0637

MTD 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

34

MTD 781-0746

Discharge Deflector Keeper

$

$

Not available

35

MTD 781-0747

Depth Cable Keeper

Variations

781-0747-0637

MTD 781-0747-0637

No Longer Available KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 631-0079A

Edger Base Assembly

$

$

Not available

37

MTD 750-1178

Sleeve Spacer, .520 x .660

$

$

Not available

38

MTD 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

39

MTD 736-3068

Flat Washer, .5 x .875 x .606

$7.49

$

In Stock, only 2 left!

0

40

MTD 746-1098

Control Cable w/ Clip, 31.75"
(Superseded to 746P1098)

$

$

Not available

41

MTD 734-1779

Diamond Tread Wheel, 7 x 1.5
(Superseded to 734-1779A)

$22.99

$

In Stock, only 2 left!

0

42

MTD 734-1780

Diamond Tread Wheel, 8 x 1.5
(Superseded to 734-04585)

$22.99

$

Usually ships in 3-6 days

0

43

MTD 711-1370

Axle, 12.64

$

$

Currently unavailable

44

MTD 710-1241

Hi-Lo Tap Screw, 1/4-15 x 1.0

$6.99

$

In Stock, Qty 20+

0
