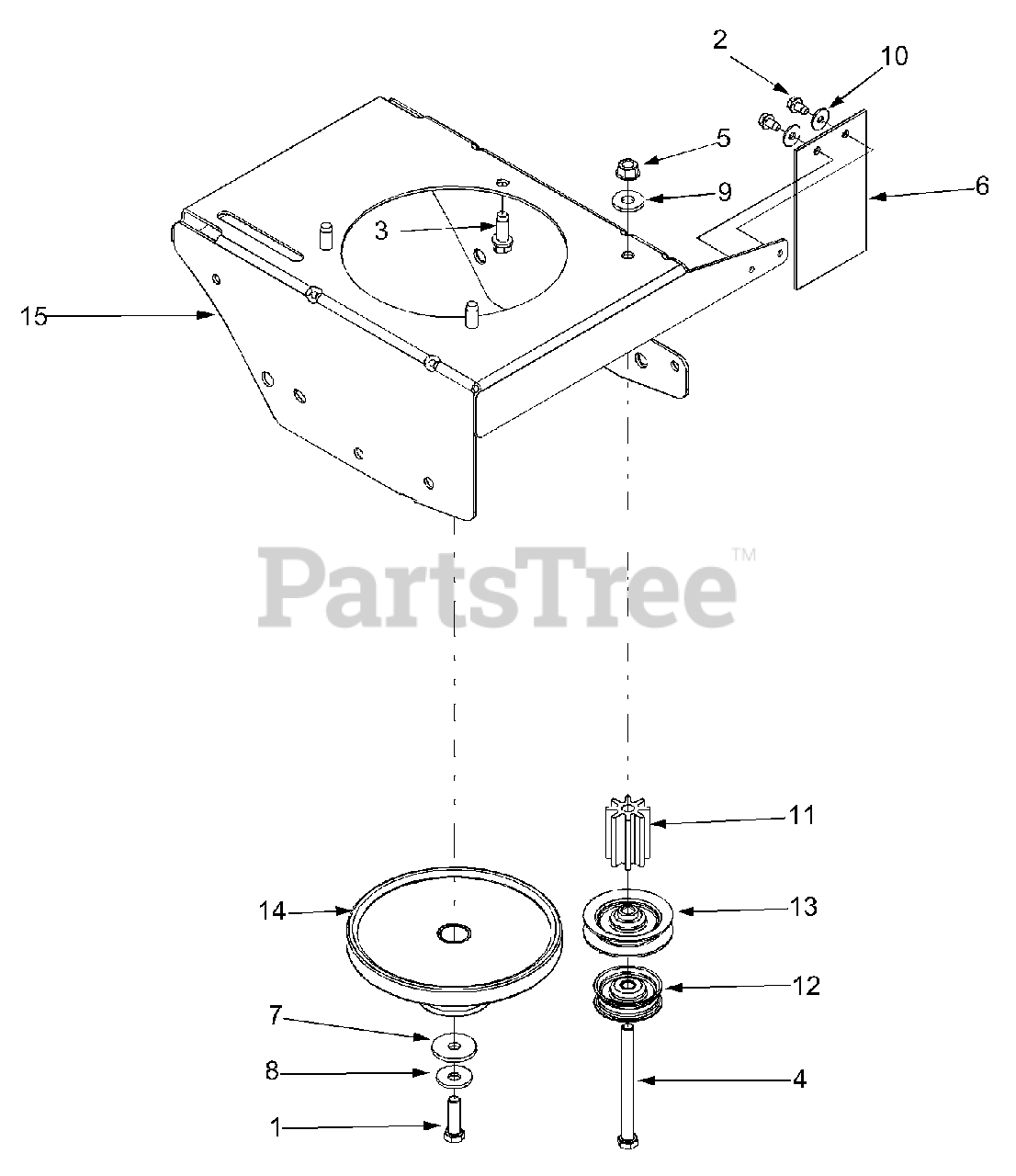

25A-550A129 - Yard Machines Walk-Behind Edger (2003) (Home Depot) Frame Parts Diagram

Walk-Behind Edger

Frame Parts Diagram

  • Title

1

MTD 710-0191

Screw, 3/8-24

$4.99

$

In Stock, Qty 7

0

2

MTD 710-0599

Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0654A

Screw, 3/8-16

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0944

Screw, 3/8-16

$11.99

$

In Stock, Qty 11

0

5

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

6

MTD 731-04168

Debris Guard
(Superseded to 931-04168)

$

$

Not available

7

MTD 736-0320

Flat Washer, 3/8 ID x 1.37 OD

$7.49

$

In Stock, Qty 5

0

8

MTD 736-0452

Bell Washer,.396 x 1.140

$4.99

$

In Stock, only 4 left!

0

9

MTD 736-3052

Flat Washer,.406 x 1.00

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-3090

Flat Washer,.260 x.720

$6.99

$

In Stock, Qty 8

0

11

MTD 750-04142

Pulley Mount Spacer
(Superseded to 950-04142)

$15.99

$

Usually ships in 3-6 days

0

12

MTD 756-0313

Flat Idler Pulley, 1.88 OD

$27.99

$

In Stock, only 2 left!

0

13

MTD 756-1035A

Idler Pulley

$36.99

$

In Stock, only 1 left!

0

14

MTD 756-1150A

Combination Flywheel Pulley

$173.99

$

Usually ships in 3-6 days

0

15

MTD 787-01072

Frame

Variations

MTD 787-01072-0638

No Longer Available FRAME-EDGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01072-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01072-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$
