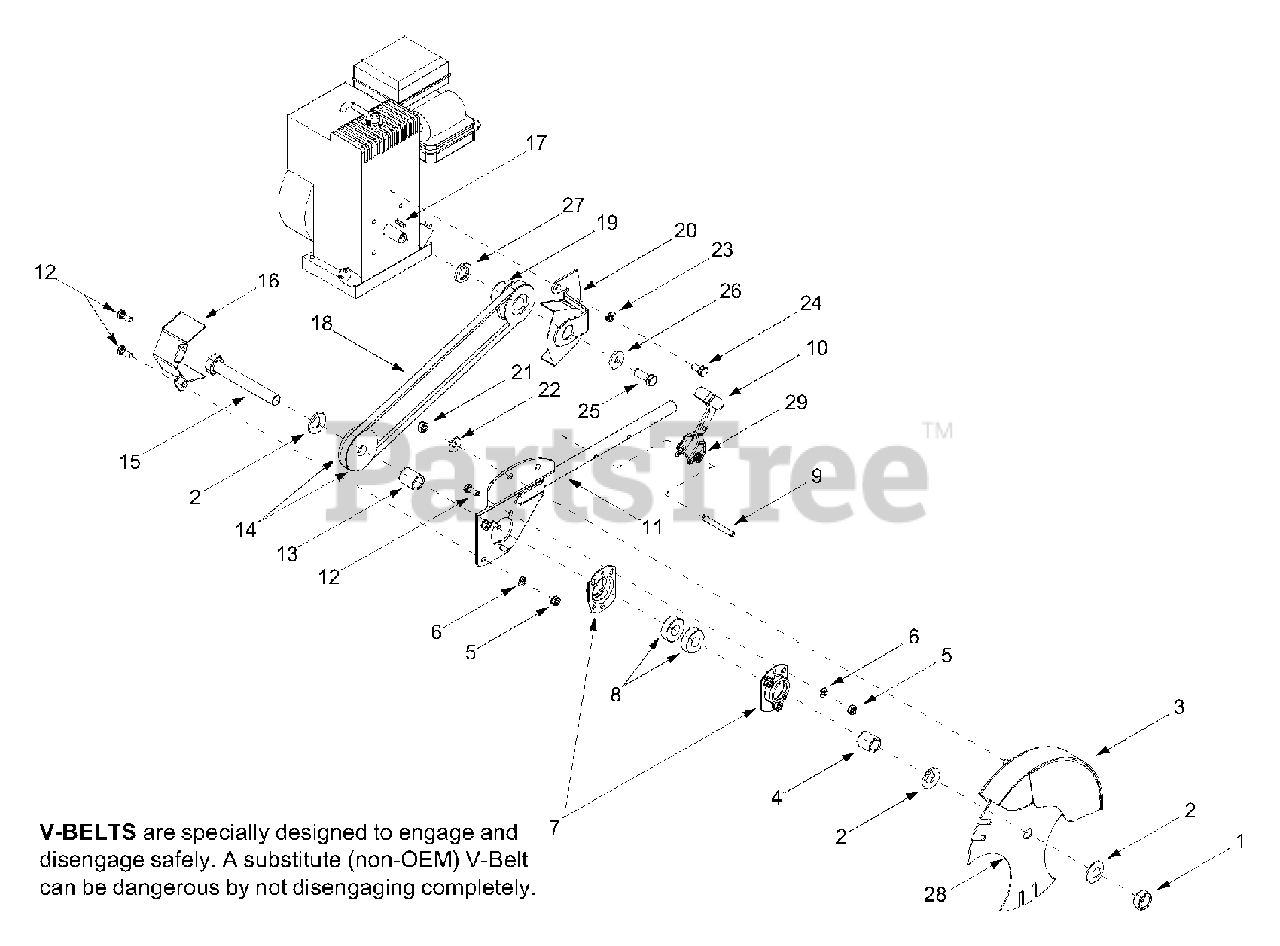

25A-592A401 - Yard-Man Edger (2002) > Parts Diagrams (2) > Drive & Blade

  • Title
712-0413

1

Hex Jam Nut, 5/8-18

Part# 712-0413 (Superseded to 912-0413)

OEM Warranty Repair Part for MTD

Not available

736-0317

2

Bell Washer, .64 x 1.25 x .18

Part# 736-0317

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.16

781-0076

3

Blade Guard

Part# 781-0076

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available GUARDASSY

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

No Longer Available GUARDASSY

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available GUARD ASM

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available GUARDASSY

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

No Longer Available GUARDASSY

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available GUARDASSY

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available GUARDASSY

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

MIDNIGHT BLUE (0667)

No Longer Available GUARDASSY

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available GUARDASSY

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

750-0118

4

Sleeve, .632 x .875 x .90

Part# 750-0118 (Superseded to 950-0118)

OEM Warranty Repair Part for MTD

Not available

712-0287

5

Hex Nut, 1/4-20

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0329

6

Lock Washer, 1/4

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

05034A

7

Bearing Housing

Part# 05034A

OEM Warranty Repair Part for MTD

Not available

741-0155

8

Ball Bearing, .62 x 1.38 x .44

Part# 741-0155 (Superseded to 941-0155)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $16.21

715-0121

9

Spirol Pin, 1/4 x 2.0

Part# 715-0121

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.42

781-0093

10

Adjustment Lever Assembly

Part# 781-0093 (Superseded to 981-0093)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $31.76

781-0078

11

Spindle Plate/Shaft Assembly

Part# 781-0078

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

PLATE-ASSY.SPINDLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0751

12

Hex Cap Screw, 1/4-20 x .62

Part# 710-0751

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

750-0229

13

Spacer, .635 x .88 x 1.03

Part# 750-0229 (Superseded to 950-0229)

OEM Warranty Repair Part for MTD

Not available

756-0449

14

Sheave, .6255 x .6295

Part# 756-0449 (Superseded to 956-0449)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.71

710-0929

15

Hex Cap Screw, 5/8-18 x 4.5

Part# 710-0929 (Superseded to 710-3151A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.38

781-0086

16

Spindle Belt Guard

Part# 781-0086

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Belt Guard, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $14.70

714-0122

17

Square Key, 3/16 x .75

Part# 714-0122 (Superseded to 914-0122)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.27

754-0142

18

V-belt, 3/8

Part# 754-0142 (Superseded to 954-0142)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.42

756-0327B

19

Engine Pulley, 3/8 x .75 x 2.38

Part# 756-0327B

OEM Warranty Repair Part for MTD

Not available

687-0100

20

Engine Pulley Belt Guard

Part# 687-0100

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available GUARD-BELT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available GUARD-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available GUARD-BELT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available GUARD-BELT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

712-0267

21

Hex Nut, 5/16-18

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0242

22

Belleville Washer, .340 x .872

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0119

23

Lock Washer, 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0237

24

Hex Cap Screw, 5/16-24 x .625

Part# 710-0237

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0152

25

Hex Cap Screw, 3/8-24 x 1.0

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0258

26

Flat Washer, .385 x 1.0 x .135

Part# 736-0258

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

748-0160

27

Spacer, .753 x 1.25 x .175

Part# 748-0160 (Superseded to 948-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.34

781-0748

28

Triplex Edger Blade, 9.0

Part# 781-0748

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Tri-Cut Edger Blade, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.95

732-0188A

29

Double-torsion Spring

Part# 732-0188A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.64
