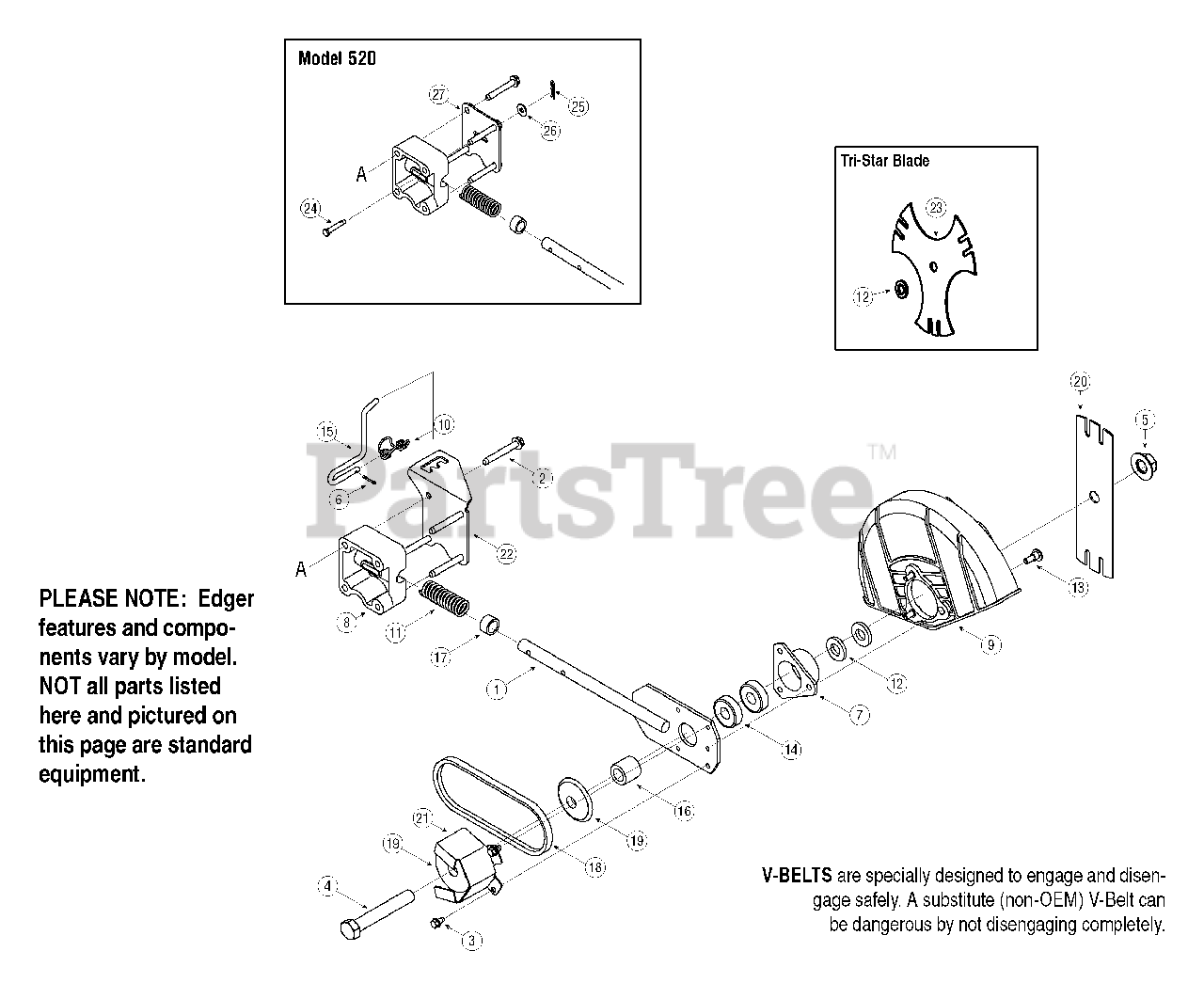

25B-520A700 - Yard Machines Walk-Behind Edger (2005) Drive Parts Diagram

Walk-Behind Edger

Drive Parts Diagram

  • Title

1

MTD 687-02126

Blade Plate Assembly

$52.99

$

In Stock, only 1 left!

0

2

MTD 710-04389

Hex Screw, 5/16-18

$6.49

$

In Stock, only 1 left!

0

3

MTD 710-0599

Self-tapping Screw, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1143A

Hex Screw, 5/8-18

$10.99

$

In Stock, only 1 left!

0

5

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

6

MTD 714-3010

Cotter Pin 3/32 x .625

$4.49

$

In Stock, only 4 left!

0

7

MTD 718-04012

Bearing Cup

$19.99

$

In Stock, only 3 left!

0

8

MTD 731-04207

Bearing Block
(Superseded to 931-04207)

$25.99

$

In Stock, only 2 left!

0

9

MTD 731-05064

Blade Guard
(Superseded to 731P05064)

$25.99

$

Usually ships in 3-6 days

0

10

MTD 732-0188A

Double Torsion Spring

$11.99

$

In Stock, Qty 17

0

11

MTD 732-04169

Compression Spring
(Superseded to 932-04169)

$9.99

$

In Stock, only 2 left!

0

12

MTD 736-04088

Flat Washer .635x1.24x.181

$4.49

$

In Stock, Qty 11

0

13

MTD 738-0706B

Shoulder Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, Qty 8

0

14

MTD 741-0524

Bearing, .625 ID x 1.57 OD
(Superseded to 941-0524A)

$21.99

$

In Stock, Qty 20+

0

15

MTD 747-04110

Blade Adjustment Rod
(Superseded to 747-04110A)

$15.99

$

In Stock, Qty 20+

0

16

MTD 750-04105

Spacer, .63 x 1.12 x 1.06
(Superseded to 950-04105)

$14.99

$

In Stock, only 1 left!

0

17

MTD 750-0547

Spacer, .64 x.88 x .50

$5.49

$

In Stock, only 3 left!

0

18

MTD 754-04032B

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0

19

MTD 756-0449

Sheave
(Superseded to 956-0449)

$13.99

$

In Stock, Qty 8

0

20

MTD 781-0080

Blade
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

21

MTD 781-0427

Belt Guard
(Superseded to 781-0427-0637)

Variations

MTD 781-0427-0637

Belt Guard, Black - POWDER BLACK (0637)

$19.99

$

In Stock, Qty 16

0

$19.99

$

In Stock, Qty 16

0

22

MTD 787-01081A

Cover Plate

Variations

MTD 787-01081A-0638

Index Edge Bracket - MTD/TROY-BILT RED (0638)

$5.99

$

Usually ships in 3-6 days

0

MTD 787-01081A-0606

BRKT-INDEX EDGE - MAJESTIC ORANGE (0606)

$5.99

$

Usually ships in 3-6 days

0

MTD 787-01081A-0637

Index Edge Bracket - POWDER BLACK (0637)

$5.99

$

Usually ships in 3-6 days

0

MTD 787-01081A-0691

BRKT-INDEX EDGE - BLACK JACK (0691)

$5.99

$

Usually ships in 3-6 days

0

MTD 787-01081A-0721

BRACKET-INDEX EDGE - SEARS RED (0721)

$5.99

$

Usually ships in 3-6 days

0

MTD 787-01081A-4021

BRACKET-INDEX EDGE - CUB YELLOW 2 (4021)

$5.99

$

Usually ships in 3-6 days

0

MTD 787-01081A-4044

BRACKET-INDEX EDGE - CRAFTSMAN RED (4044)

$5.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

23

MTD 781-0748

Tri-star Blade (Opt. Access.)

Variations

MTD 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 20+

0

$21.99

$

In Stock, Qty 20+

0

24

MTD 711-1017

Clevis Pin

$6.99

$

In Stock, only 2 left!

0

25

MTD 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0342

Flat Washer, .260 x.72

$6.99

$

Usually ships in 3-6 days

0

27

MTD 787-01075A

Cover Plate

Variations

MTD 787-01075A-0637

PLATE-COVER - POWDER BLACK (0637)

$18.99

$

In Stock, only 1 left!

0

$14.99

$

Usually ships in 3-6 days

0
