25E337-0028-F1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

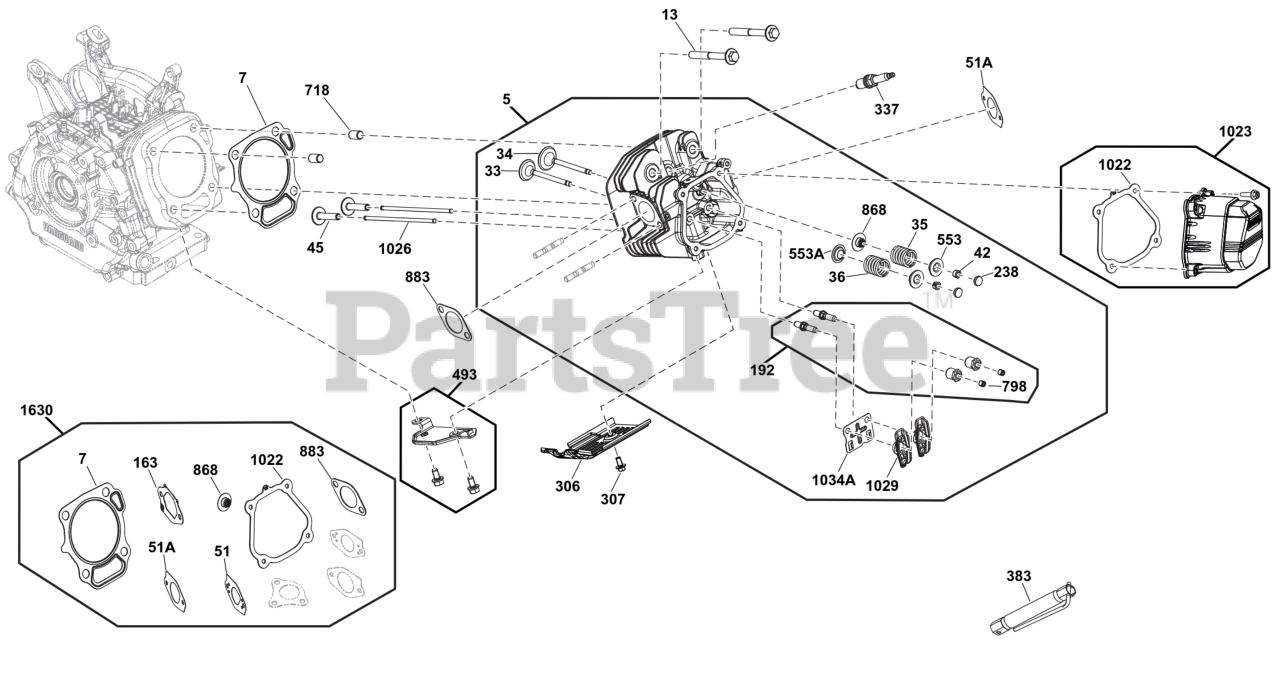

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 84005042

HEAD, Cylinder

$175.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84008086

GASKET, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84004122

SCREW

Note: (Cylinder Head)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 84004114

VALVE, Exhaust

$41.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84004113

VALVE, Intake

$30.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 84004112

SPRING, Valve

Note: (Intake)

$5.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84004112

SPRING, Valve

Note: (Exhaust)

$5.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 84004116

KEEPER, Valve

$14.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 84004130

TAPPET, Valve

$9.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 84008015

GASKET, Intake

$

$

Currently unavailable

51A

Briggs & Stratton 84008014

GASKET, Intake

$

$

Currently unavailable

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

192

Briggs & Stratton 84006535

ADJUSTER, ROCKER ARM

$11.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 84006534

CAP, VALVE

$8.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 84004123

SHIELD, Cylinder

$14.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 597078

SCREW

Note: (Cylinder Shield)

$4.49

$

In Stock, Qty 8

0

337

Briggs & Stratton 792015

PLUG, Spark

$3.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$6.49

$

In Stock, Qty 8

0

493

Briggs & Stratton 84008254

BRACKET, Mounting

Note: (Part information located in Alternator Group.)

$

$

Currently unavailable

553

Briggs & Stratton 84004117

RETAINER, Valve Spring

$4.49

$

Usually ships in 2-12 days

0

553A

Briggs & Stratton 84004118

RETAINER, Valve Spring

$5.99

$

Usually ships in 2-12 days

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

798

Briggs & Stratton 597000

SCREW

$3.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 84004111

SEAL, Valve

$10.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

Briggs & Stratton 84004126

GASKET, Rocker Cover

$11.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 84012344

COVER, Rocker

$49.99

$

Usually ships in 0 days

0

1026

Briggs & Stratton 84004129

ROD, Push

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 84004110

ARM, Rocker

$20.99

$

Usually ships in 2-12 days

0

1034A

Briggs & Stratton 84005043

GUIDE, Push Rod

$4.99

$

Usually ships in 2-12 days

0

1630

Briggs & Stratton 84012627

GASKET SET, Valve

$15.99

$

Usually ships in 0 days

0
