25E337-0029-F1 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

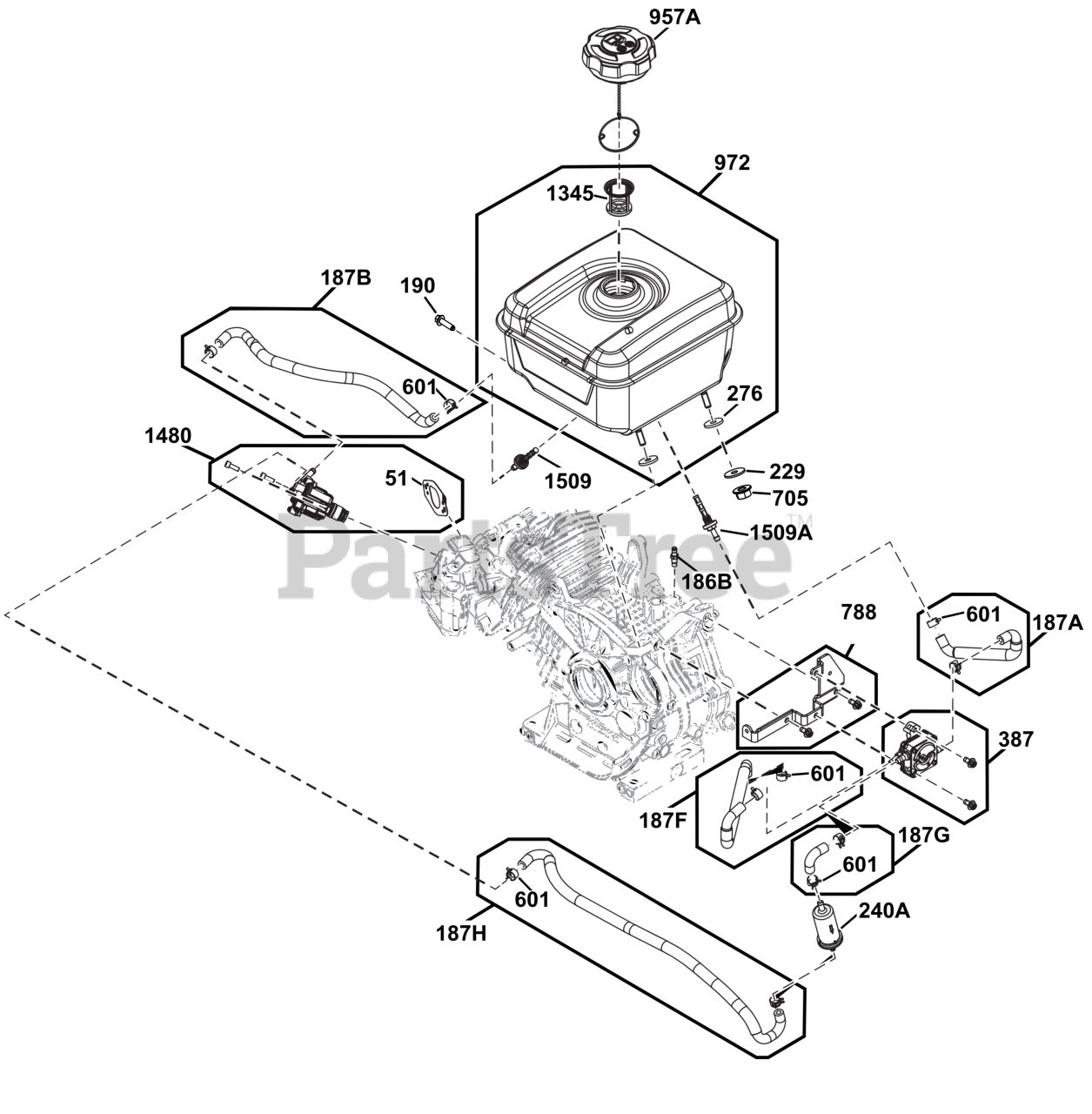

Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

186B

Briggs & Stratton 84007494

CONNECTOR, Hose

$

$

Currently unavailable

187A

Briggs & Stratton 84008303

LINE, Fuel

$

$

Currently unavailable

187B

Briggs & Stratton 84008304

LINE, Fuel

$

$

Currently unavailable

187F

Briggs & Stratton 84008308

LINE, Fuel

$

$

Currently unavailable

187G

Briggs & Stratton 84008310

LINE, Fuel

$

$

Currently unavailable

187H

Briggs & Stratton 84008311

LINE, Fuel

$

$

Currently unavailable

190

Briggs & Stratton 84004226

SCREW

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 84004227

WASHER

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 84007607

FILTER, FUEL

$12.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 84004253

WASHER, Sealing

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 84003048

PUMP, Fuel

$72.99

$

In Stock, only 4 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

705

Briggs & Stratton 707919

NUT

Note: (Fuel Tank)

$3.49

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 84008266

BRACKET, Fuel Pump

$

$

Currently unavailable

972

Briggs & Stratton 84008295

TANK, Fuel

$

$

Currently unavailable

957A

Briggs & Stratton 84007570

CAP, Fuel Tank

$24.99

$

In Stock, only 2 left!

0

1345

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 2 left!

0

1480

Briggs & Stratton 84007731

INJECTOR, Fuel

$129.99

$

Usually ships in 0 days

0

1509

Briggs & Stratton 797346

OUTLET, Tank

$13.99

$

In Stock, Qty 10

0

1509A

Briggs & Stratton 84008294

OUTLET, Tank

$

$

Currently unavailable
