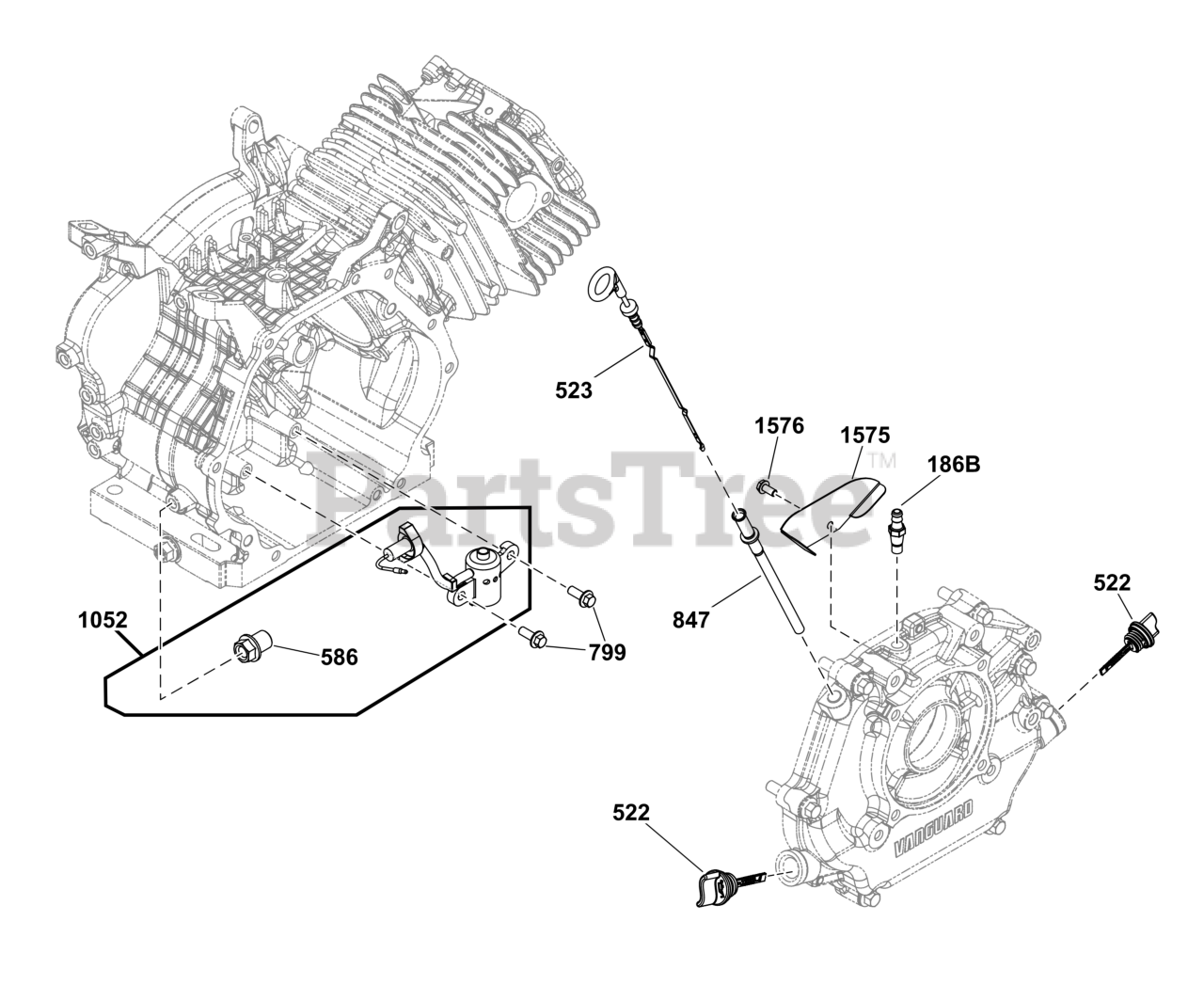

25E337-0035-G1 - Briggs & Stratton Horizontal Engine Lubrication Group Parts Diagram

Horizontal Engine

Lubrication Group Parts Diagram

  • Title

186B

Briggs & Stratton 84007494

CONNECTOR, Hose

$

$

Currently unavailable

522

Briggs & Stratton 84004104

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 84004105

DIPSTICK

$13.99

$

Usually ships in 2-12 days

0

586

Briggs & Stratton 84004724

NUT

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 84004128

SCREW

Note: (Oil Sensor)

$

$

Currently unavailable

847

Briggs & Stratton 84004831

DIPSTICK/TUBE ASSEMBLY

$20.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 84004948

SENSOR, Oil

$57.99

$

In Stock, only 2 left!

0

1575

Briggs & Stratton 84004192

SHIELD, Oil

$4.49

$

Usually ships in 2-12 days

0

1576

Briggs & Stratton 597036

SCREW

Note: (Oil Shield)

$3.49

$

Usually ships in 2-12 days

0
