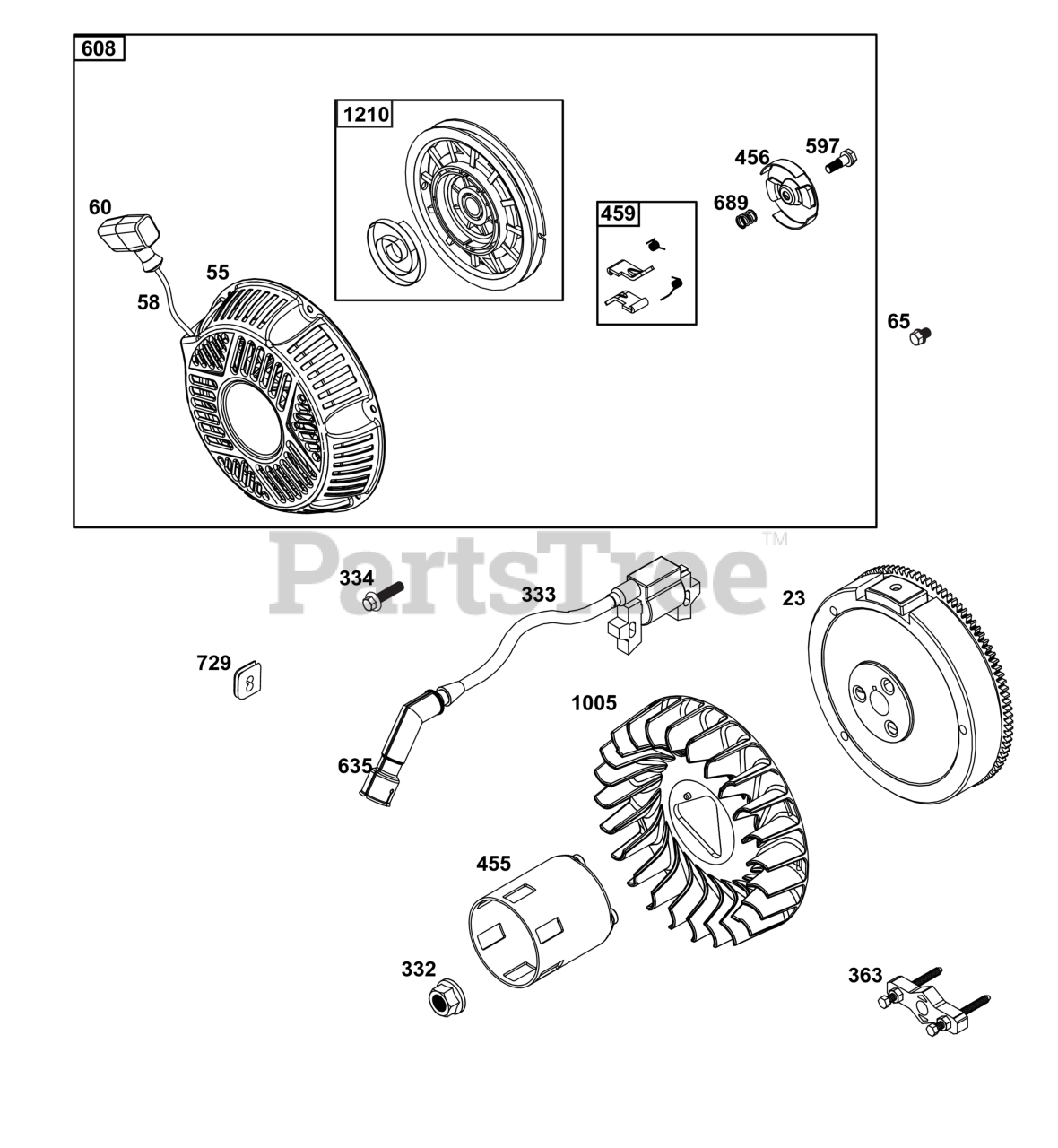

25N132-0019-F1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 797813

FLYWHEEL

$219.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 799974

HOUSING, Rewind Starter

$75.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 693389

ROPE, Starter

Note: (Cut To Required Length)

$9.99

$

In Stock, only 3 left!

0

60

Briggs & Stratton 691915

GRIP, Starter Rope

$6.99

$

In Stock, Qty 11

0

65

Briggs & Stratton 797654

SCREW

Note: (Rewind Starter)

$4.99

$

In Stock, Qty 11

0

332

Briggs & Stratton 797811

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 798616

ARMATURE, Magneto

$82.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 797655

SCREW

Note: (Magneto Armature)

$4.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

455

Briggs & Stratton 797746

CUP, Flywheel

$12.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 799973

PLATE, Pawl Friction

$9.49

$

In Stock, only 2 left!

0

459

Briggs & Stratton 799976

PAWL, Ratchet

$7.99

$

In Stock, only 4 left!

0

597

Briggs & Stratton 799972

SCREW

Note: (Pawl Friction Plate)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 797747

STARTER, Rewind

$139.99

$

In Stock, only 2 left!

0

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

689

Briggs & Stratton 799669

SPRING, Friction

$6.99

$

In Stock, only 2 left!

0

729

Briggs & Stratton 797750

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 797748

FAN, Flywheel

$23.99

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 799975

PULLEY/SPRING ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0
