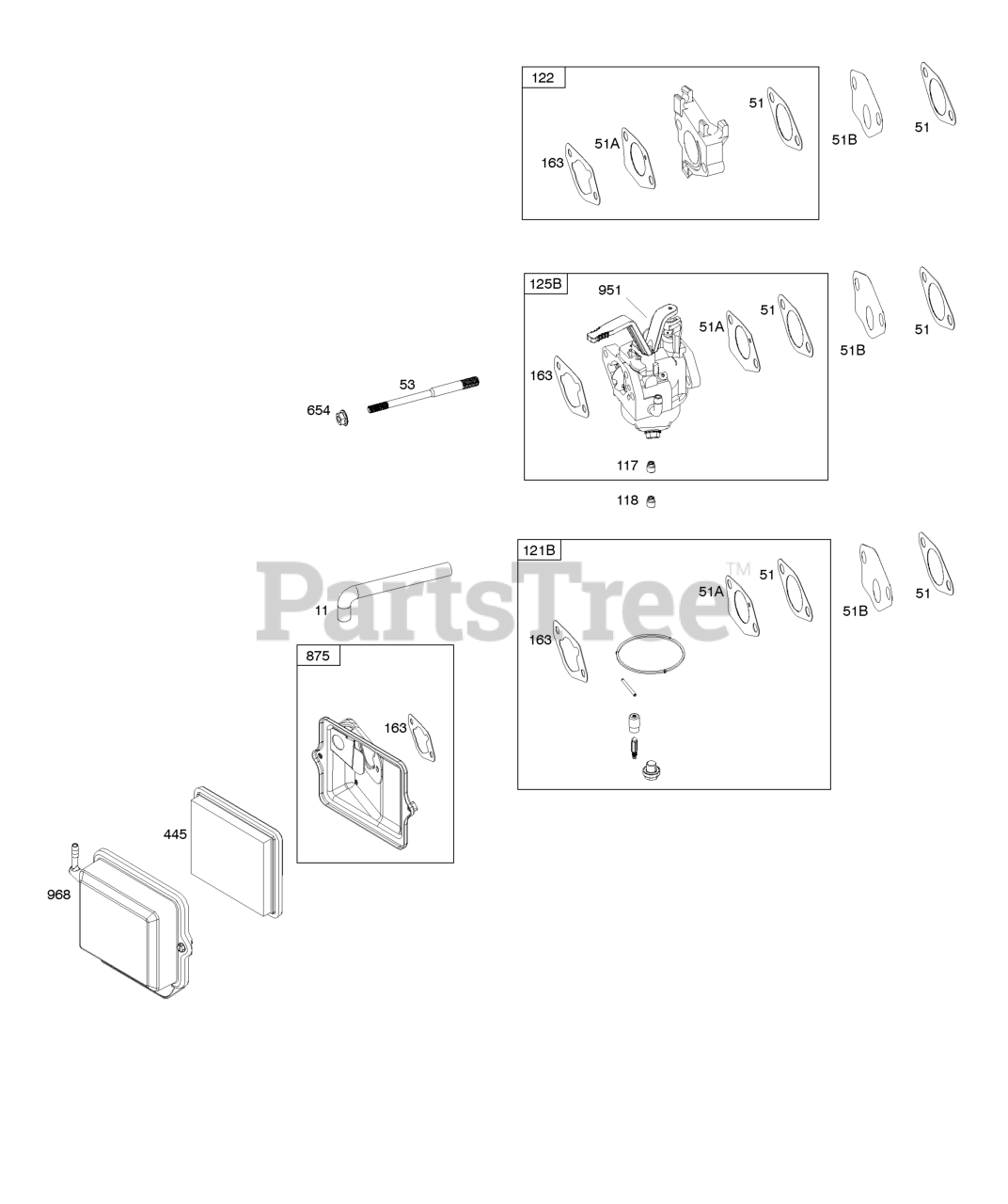

25P132-0001-G1 - Briggs & Stratton Horizontal Engine Carburetor Parts Diagram

Horizontal Engine

Carburetor Parts Diagram

  • Title

11

Briggs & Stratton 797768

TUBE, Breather

$12.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 797845

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 797755

Gasket-Intake

$4.49

$

In Stock, Qty 5

0

51B

Briggs & Stratton 592652

Gasket-Intake

Note: (Restrictor)

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 797757

STUD

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 592928

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 799775

Jet-Main

Note: (High Altitude)

$12.99

$

Usually ships in 2-12 days

0

121B

Briggs & Stratton 592332

Kit-Carburetor Overhaul

$58.99

$

In Stock, only 2 left!

0

122

Briggs & Stratton 799961

Spacer-Carburetor

$13.99

$

In Stock, only 1 left!

0

125B

Briggs & Stratton 592929

Carburetor

$107.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 797756

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 7

0

445

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0

875

Briggs & Stratton 799776

BASE, Air Cleaner

$37.99

$

Usually ships in 2-12 days

0

951

Briggs & Stratton 797759

Lever-Choke

$11.99

$

In Stock, only 2 left!

0

968

Briggs & Stratton 590958

Cover-Air Cleaner

$34.99

$

Usually ships in 2-12 days

0
