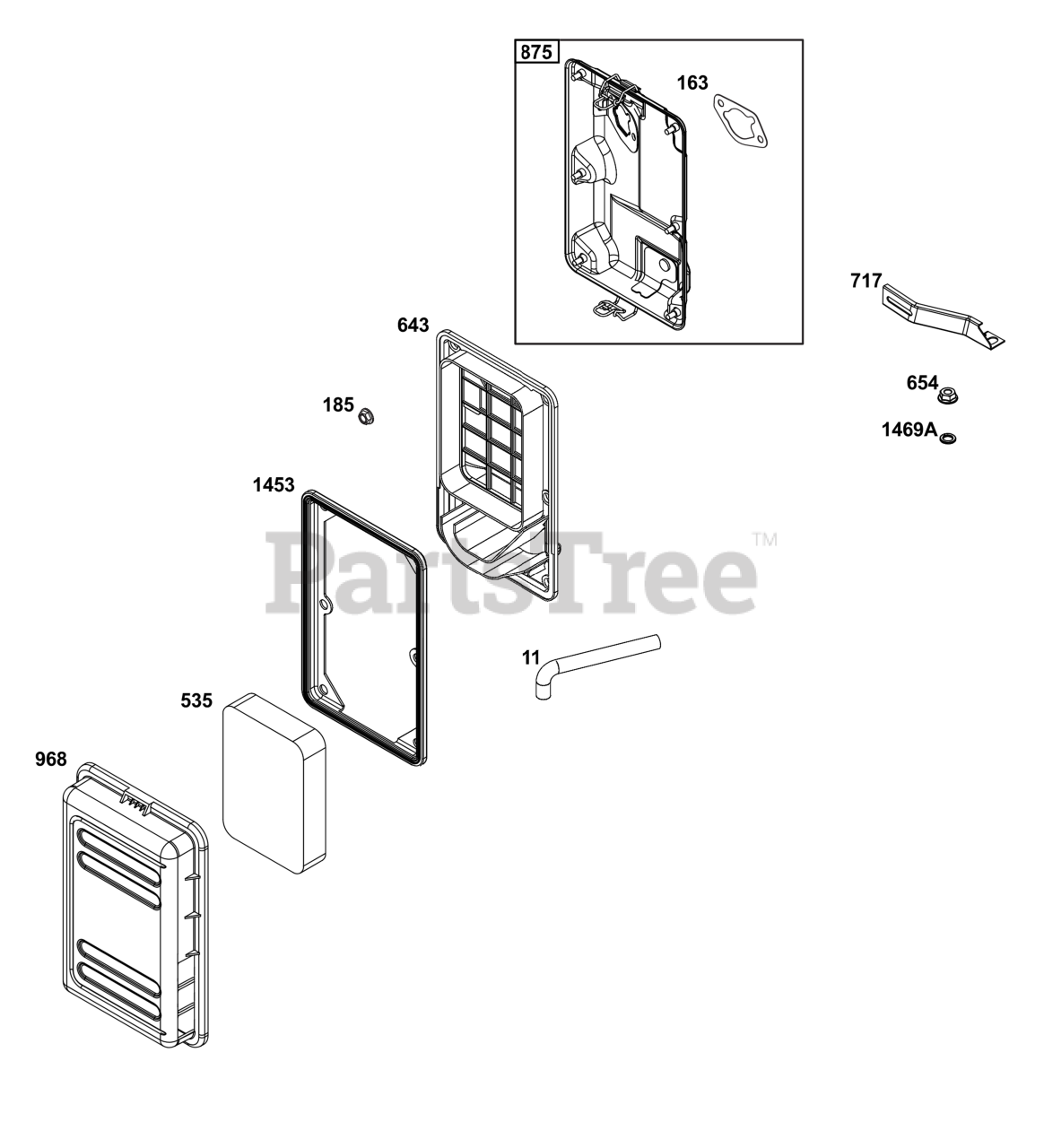

25T237-0449-H5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 797768

TUBE, Breather

$13.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

185

Briggs & Stratton 591808

NUT

Note: (Air Cleaner Base)

$2.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 591778

FILTER, Air Cleaner Foam

$11.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 591806

RETAINER, Air Filter

$29.99

$

Usually ships in 2-12 days

0

654

NUT

Note: (Part information located in Carburetor Group.)

$

$

Not available

717

Briggs & Stratton 591809

BRACKET, Air Cleaner

$8.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 591804

BASE, Air Cleaner

$42.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 591803

COVER, Air Cleaner

$33.99

$

Usually ships in 2-12 days

0

1453

Briggs & Stratton 591807

SEAL, Air Cleaner Cover

$7.99

$

Usually ships in 2-12 days

0

1469A

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

Note: (Air Cleaner Bracket)

$3.49

$

Usually ships in 2-12 days

0
