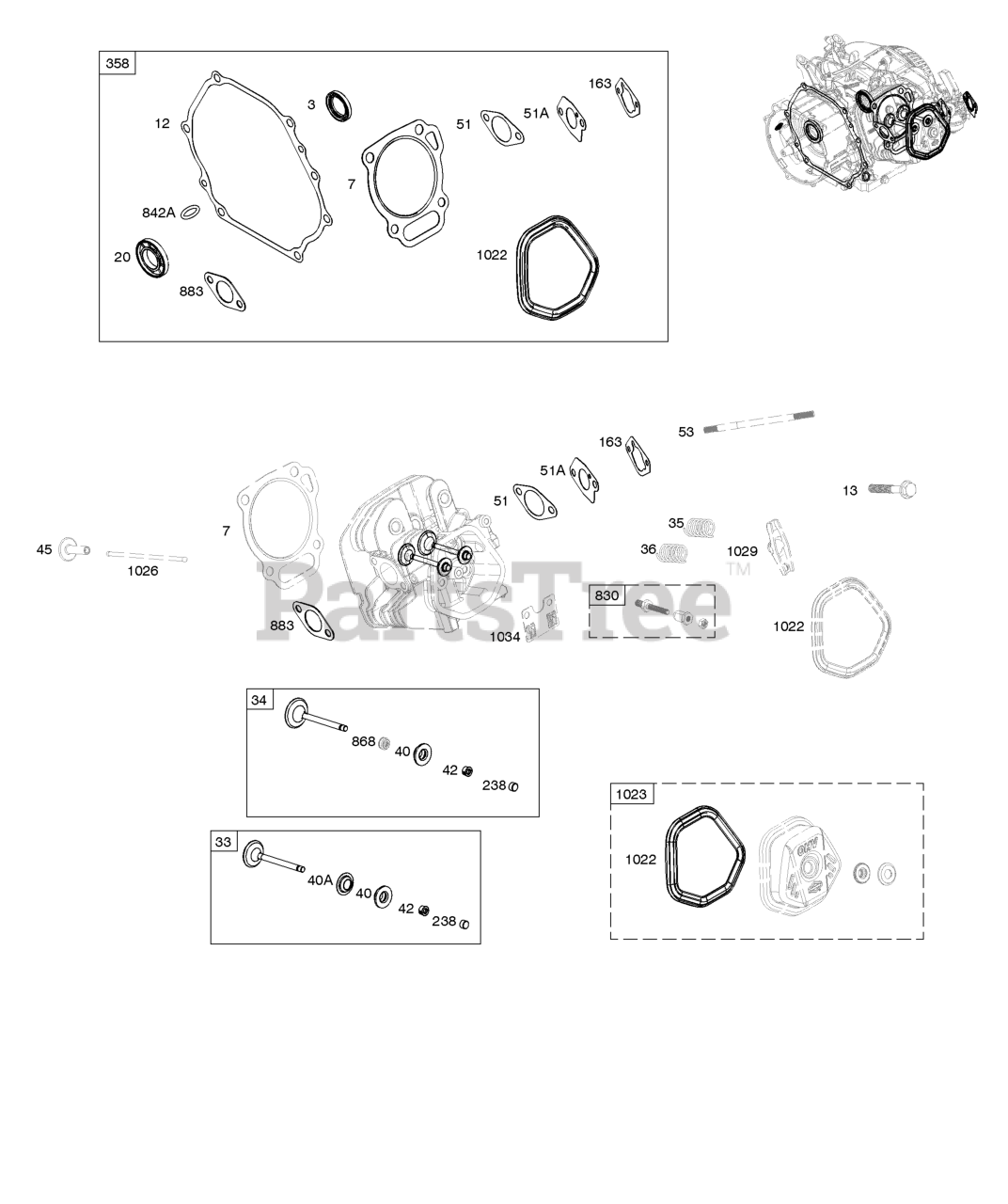

25U135-0001-G1 - Briggs & Stratton Horizontal Engine Cylinder Head, Gasket Sets Parts Diagram

Horizontal Engine

Cylinder Head, Gasket Sets Parts Diagram

  • Title

3

Seal-Oil

Note: (Magneto Side) (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

7

Gasket-Cylinder Head

Note: (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

12

Gasket-Crankcase

Note: (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

13

Screw

Note: (Cylinder Head) (Currently Not Available)

$

$

Not available

20

Seal-Oil

Note: (PTO Side) (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

33

Briggs & Stratton 594257

Valve-Exhaust

$26.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 594256

Valve-Intake

$18.99

$

Usually ships in 2-12 days

0

35

Spring-Valve

Note: (Intake) (Currently Not Available)

$

$

Not available

36

Spring-Valve

Note: (Exhaust) (Currently Not Available)

$

$

Not available

40

Briggs & Stratton XXXXX

Retainer-Valve

Note: (Not Available Individually) (See Reference 33 & 34 For Replacement)

$

$

Not available

40A

Retainer-Valve

Note: (Not Available Individually) (See Reference 33 For Replacement)

$

$

Not available

42

Keeper-Valve

Note: (Not Available Individually) (See Reference 33 & 34 For Replacement)

$

$

Not available

45

Tappet-Valve

Note: (Currently Not Available)

$

$

Not available

51

Briggs & Stratton XXXXX

Gasket-Intake

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

51A

Gasket-Intake

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

53

Stud

Note: (Carburetor) (Currently Not Available)

$

$

Not available

163

Gasket-Air Cleaner

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

238

Cap-Valve

Note: (Not Available Individually) (See Reference 33 & 34 For Replacement)

$

$

Not available

358

Briggs & Stratton 594255

Gasket Set-Engine

$59.99

$

Usually ships in 2-12 days

0

830

Stud-Rocker Arm

Note: (Currently Not Available)

$

$

Not available

842A

Seal-O Ring

Note: (Dipstick Tube) (Not Available Individually) (See Reference 358 & 522A For Replacement)

$

$

Not available

868

Seal-Valve

Note: (Currently Not Available)

$

$

Not available

883

Gasket-Exhaust

Note: (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

1022

Gasket-Rocker Cover

Note: (Not Available Individually) (See Reference 358 For Replacement)

$

$

Not available

1023

Cover-Rocker

Note: (Currently Not Available)

$

$

Not available

1026

Rod-Push

Note: (Currently Not Available)

$

$

Not available

1029

Arm-Rocker

Note: (Currently Not Available)

$

$

Not available

1034

Guide-Push Rod

Note: (Currently Not Available)

$

$

Not available
