25V332-0069-G1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

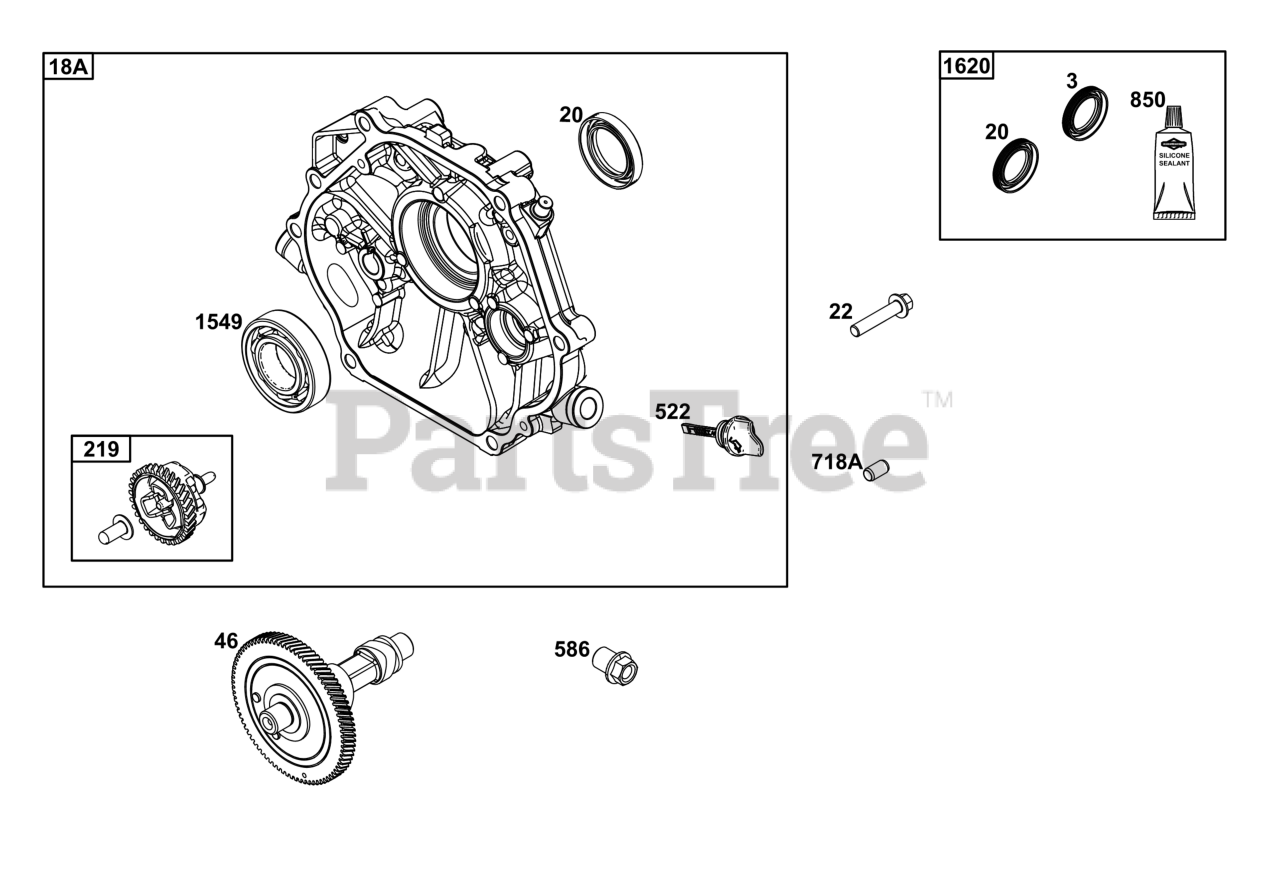

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

18A

Briggs & Stratton 84008535

COVER, Crankcase

$

$

Currently unavailable

20

Briggs & Stratton 84004101

SEAL, Oil

Note: (PTO Side)

$11.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 84004103

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

Usually ships in 2-12 days

0

46

CAMSHAFT

Note: (Part information located in Crankshaft Group.)

$

$

Not available

219

Briggs & Stratton 84004200

GEAR, Governor

$26.99

$

Usually ships in 2-12 days

0

522

PLUG, Dipstick/Fill

Note: (Part information located in Lubrication Group.)

$

$

Not available

586

Briggs & Stratton 84004724

NUT

Note: (Part information located in Controls Group.)

$3.99

$

Usually ships in 2-12 days

0

718A

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

850

SEALANT, Liquid

Note: (Part information located in Cylinder Group.)

$

$

Not available

1549

BEARING, Ball

Note: (Part information located in Crankshaft Group.)

$

$

Not available

1620

Briggs & Stratton 84008367

GASKET SET, Crankcase

$29.99

$

Usually ships in 0 days

0
