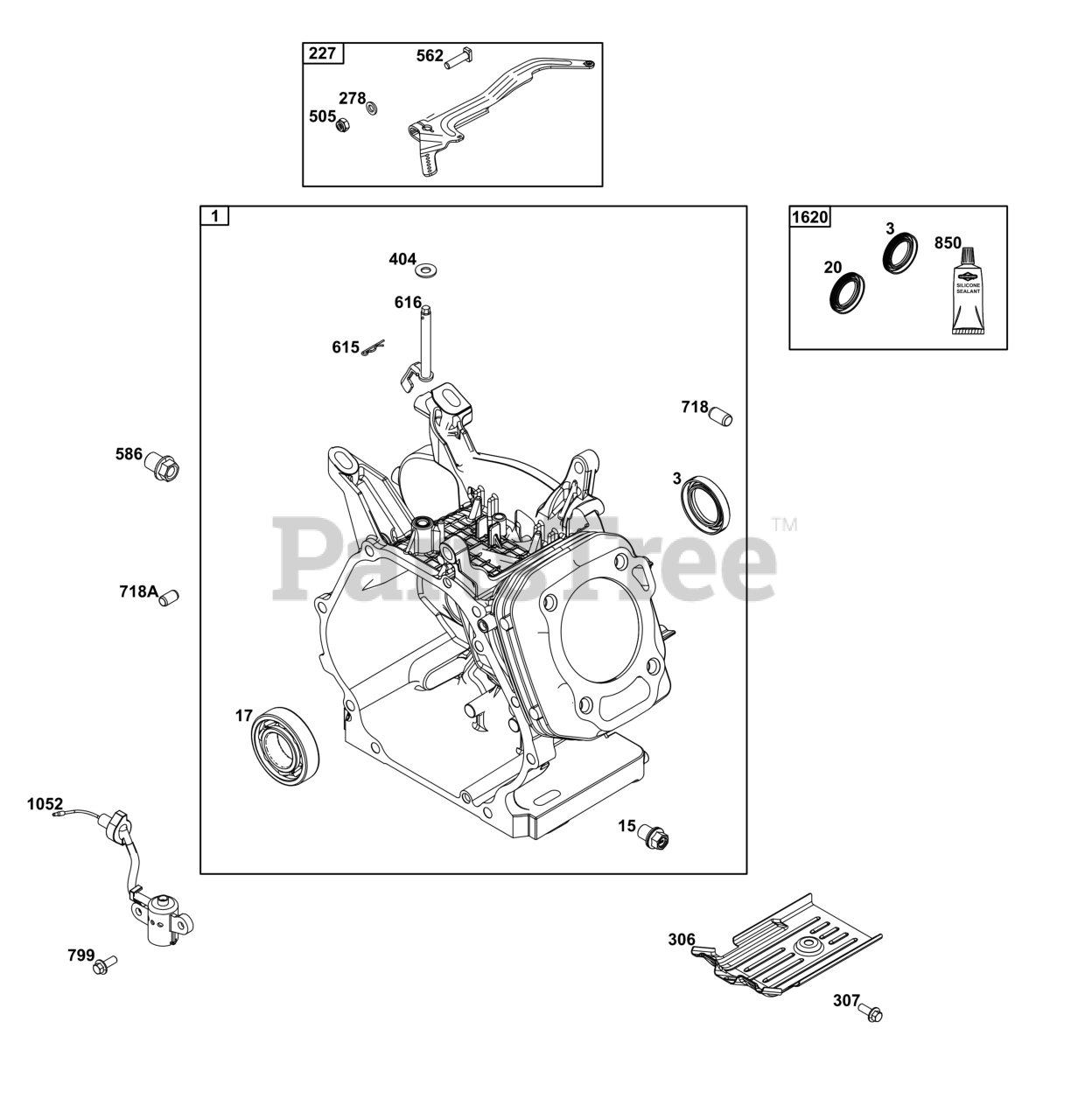

25V332-0069-G1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 84004371

CYLINDER ASSEMBLY

$335.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84004101

SEAL, Oil

Note: (Magneto Side)

$11.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 84004108

PLUG, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84004100

BEARING, Ball

Note: (Cylinder)

$41.99

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

227

LEVER, Governor Control

Note: (Part information located in Controls Group.)

$

$

Not available

278

WASHER

Note: (Part information located in Controls Group.)

$

$

Not available

306

Briggs & Stratton 84004123

SHIELD, Cylinder

$13.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 590850

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, only 4 left!

0

404

Briggs & Stratton 84004197

WASHER

Note: (Governor Crank)

$3.99

$

Usually ships in 2-12 days

0

505

NUT

Note: (Part information located in Controls Group.)

$

$

Not available

562

BOLT

Note: (Part information located in Controls Group.)

$

$

Not available

586

NUT

Note: (Part information located in Controls Group.)

$

$

Not available

615

Briggs & Stratton 84004198

RETAINER, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 84004196

CRANK, Governor

$11.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 84004120

PIN, Locating

$5.49

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 590713

PIN, Locating

$6.99

$

In Stock, only 2 left!

0

799

Briggs & Stratton 590703

SCREW

Note: (Oil Sensor)

$3.49

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 14

0

1052

Briggs & Stratton 84004948

SENSOR, Oil

$57.99

$

In Stock, only 2 left!

0

1620

GASKET SET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available
