26 LC - Husqvarna String Trimmer (SN: 19931800001 & Above) SHAFT Parts Diagram

String Trimmer

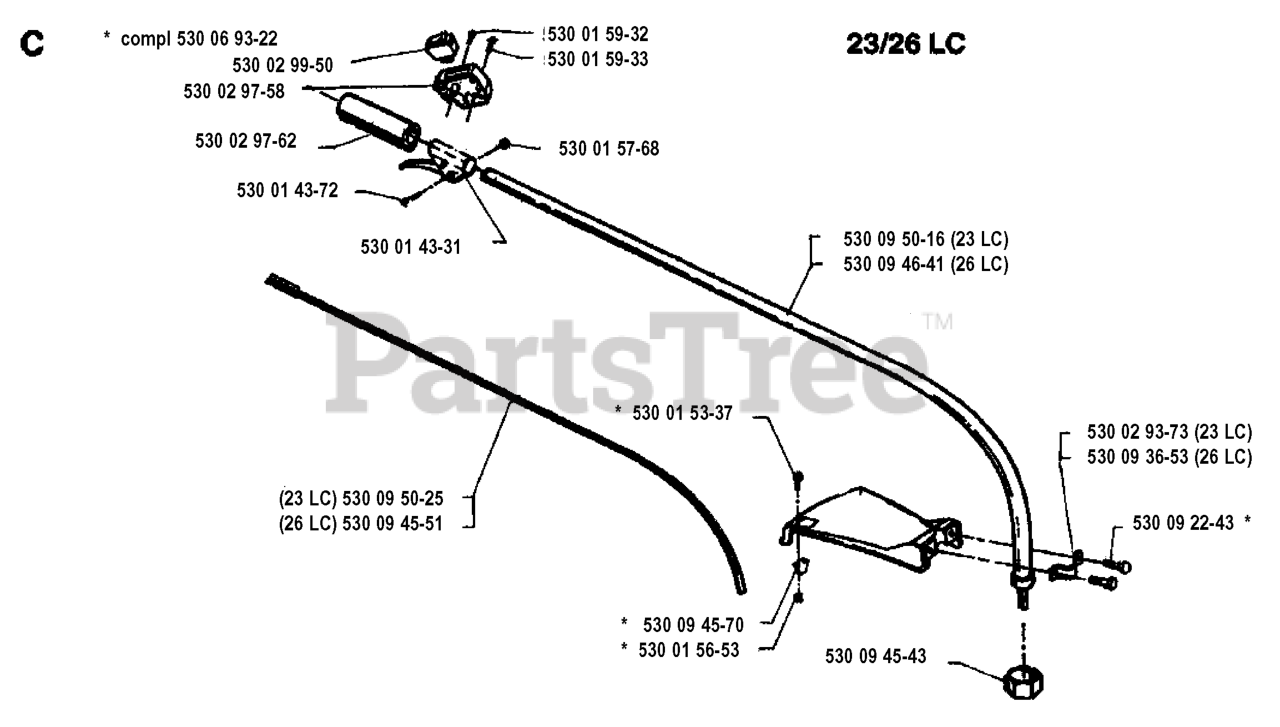

SHAFT Parts Diagram

  • Title

530 09 50-16

Husqvarna 530095016

TUBE ASSEMBLY
(Superseded to 530095711)

Note: 23 LC

$

$

Not available

530 09 45-51

Husqvarna 530094551

SHAFT-FLEX (48")

Note: 26 LC

$

$

Not available

530 02 97-62

Husqvarna 530029762

GRIP

$3.99

$

Usually ships in 3-10 days

0

530 09 45-43

Husqvarna 530094543

DUST CUP

$

$

Not available

530 02 93-73

Husqvarna 530029373

BRACKET-SHIELD

Note: 23 LC

$0.99

$

Usually ships in 3-10 days

0

530 01 59-33

Husqvarna 530015933

SCREW 10-24X1-5/8

$0.99

$

Usually ships in 3-10 days

0

530 01 56-53

Husqvarna 530015653

LOCKNUT-(10-24)
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

530 02 97-58

Husqvarna 530029758

COVER-KILL SWITCH (GRAY)

$1.49

$

Usually ships in 3-10 days

0

530 01 43-31

Husqvarna 530014331

THROTTLE HSG. ASSY.
(Superseded to 530014372)

$

$

Not available

530 09 45-70

Husqvarna 530094570

LIMITER-LINE

$3.99

$

In Stock, only 2 left!

0

530 01 59-32

Husqvarna 530015932

SCREW-8-16X3/8 (PLASTIC)

$0.99

$

Usually ships in 3-10 days

0

530 01 57-68

Husqvarna 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

530 09 50-25

Husqvarna 530095025

SHAFT-FLEX 48"
(Superseded to 530094551)

Note: 23 LC

$

$

Not available

530 09 22-43

Husqvarna 530092243

SCREW-1/4-10X1-1/8 HEX
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

530 09 46-41

Husqvarna 530094641

ASSY-DRIVE SHAFT HSG(48
(Superseded to 530094891)

Note: 26 LC

$

$

Not available

530 01 53-37

Husqvarna 530015337

SCREW

$3.99

$

Usually ships in 3-10 days

0

530 09 36-53

Husqvarna 530093653

BRACKET-SHIELD

Note: 26 LC

$3.99

$

In Stock, only 1 left!

0

530 06 93-22

Husqvarna 530069322

KIT-SHIELD
(Superseded to 530069311)

$

$

Not available

530 02 99-50

Husqvarna 530029950

SWITCH-KILL W/LEADS

$5.99

$

Usually ships in 3-10 days

0

530 01 43-72

Husqvarna 530014372

THROTTLE HOUSING ASSEMBLY

$

$

Not available
