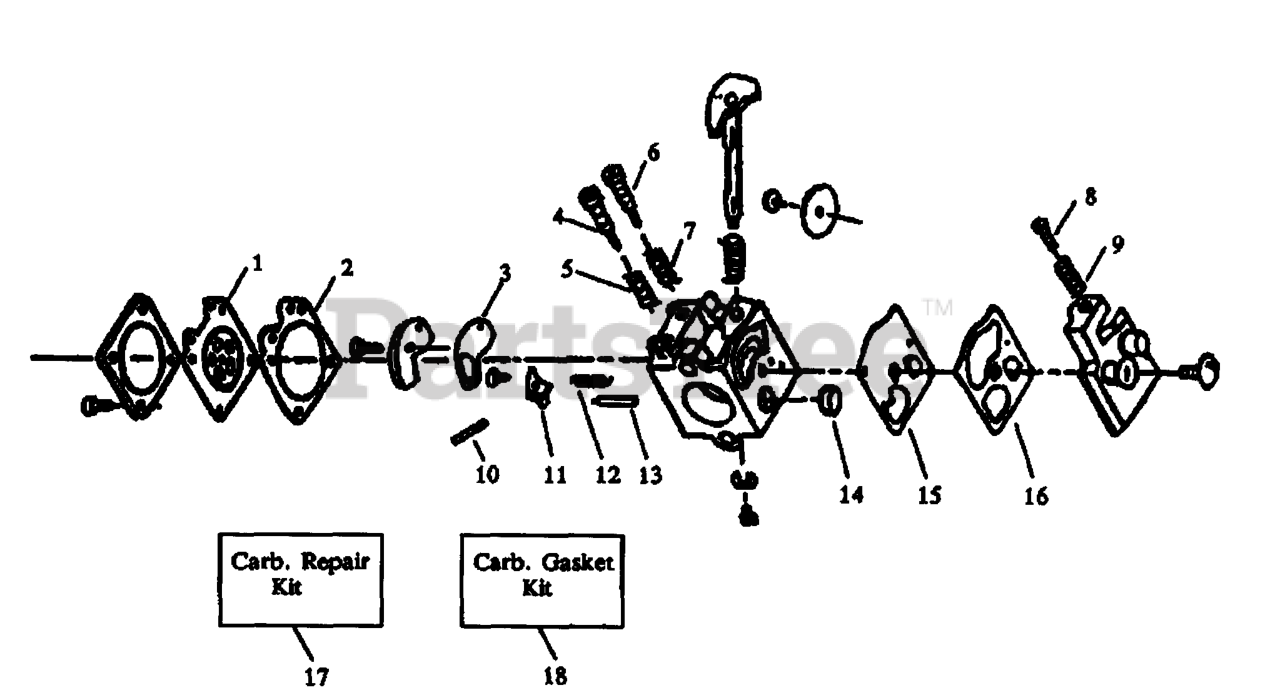

26 RLC - Husqvarna String Trimmer (1988-01) Carburetor Assembly Parts Diagram

String Trimmer

Carburetor Assembly Parts Diagram

  • Title

1

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$56.99

$

In Stock, Qty 9

0

2

Husqvarna 530035151

GASKET-METER DIAP

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 530035147

GASKET-CIRCUIT PLATE
(Superseded to 501781301)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$

$

Not available

4

Husqvarna 530035142

HI-SPEED NEEDLE
(Superseded to 501782201)

$

$

Not available

5

Husqvarna 530035036

Hi Speed Needle Spring

$

$

Not available

6

Husqvarna 530035141

NEEDLE - IDLE

$

$

Not available

7

Husqvarna 530035023

SPRING-NEEDLE FUEL MIX

$

$

Not available

8

Husqvarna 530035203

SCREW-IDLE SPEED

$

$

Not available

9

Husqvarna 530035208

SPRING-IDLE SPEED
(Superseded to 530035121)

$

$

Not available

10

Husqvarna 530035028

PIN
(Superseded to 505520125)

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530035031

LEVER
(Superseded to 505520127)

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$

$

Not available

12

Husqvarna 530036188

Metering Lever Spring

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$

$

Currently unavailable

13

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$26.99

$

In Stock, Qty 6

0

14

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

Note: Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$

$

Not available

15

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$37.99

$

In Stock, Qty 18

0

16

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

Note: Included in "Carb. Gasket/Diaphram Kit" P/N 530 03 51-85;Included in "Carb. Kwik Repair Kit" P/N 530 03 52-60

$13.99

$

In Stock, only 2 left!

0

17

Husqvarna 530035260

REPAIR KIT

Note: (Includes Ref. No's 1 - 3, 10 - 16)

$25.99

$

In Stock, only 1 left!

0

18

Husqvarna 530035185

KIT-KWIK REPAIR

Note: (Includes Ref. No's 1 - 3, 15 & 16)

$

$

Not available
