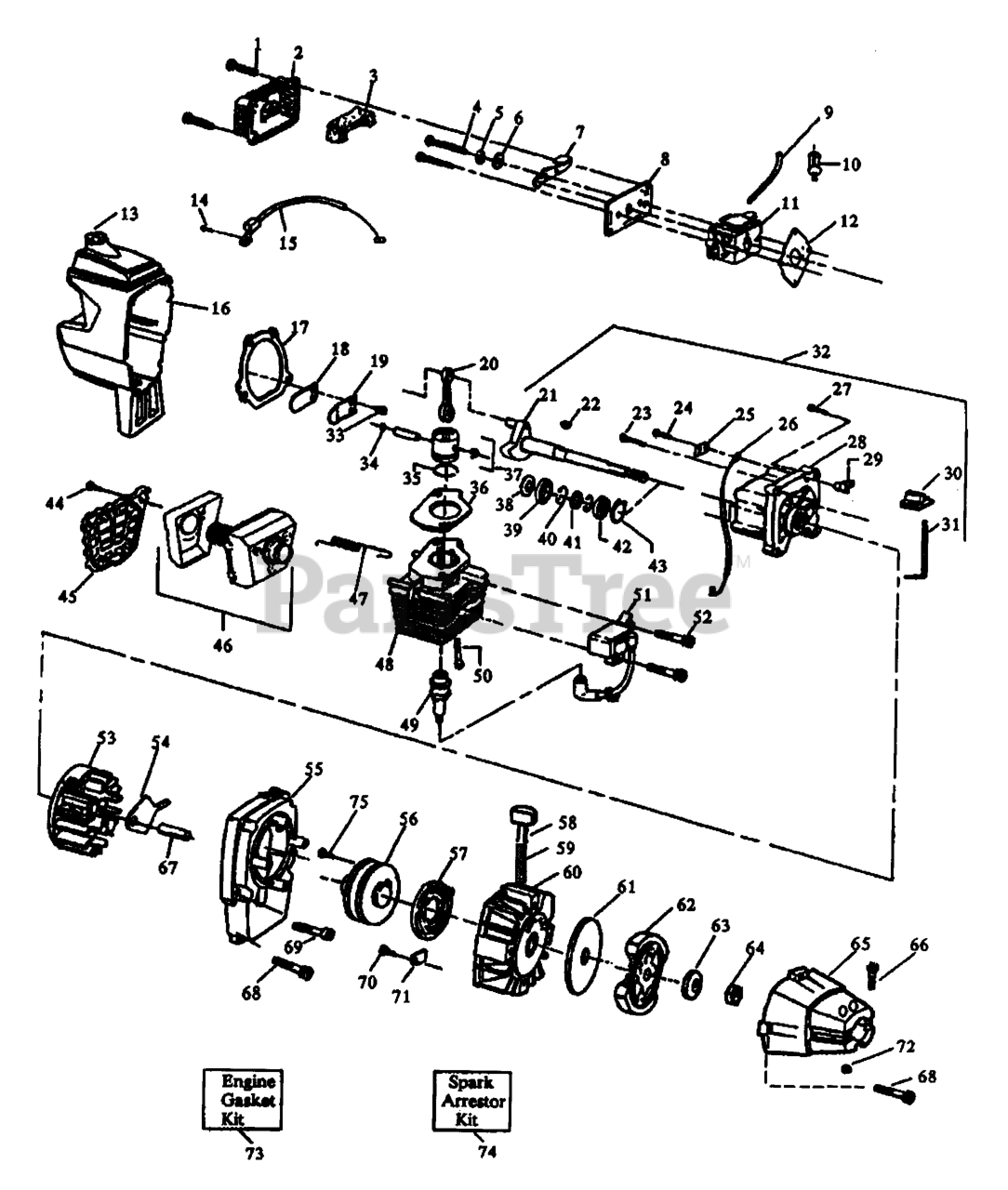

26 RLC - Husqvarna String Trimmer (1988-01) Complete Trimmer Assembly Parts Diagram

String Trimmer

Complete Trimmer Assembly Parts Diagram

  • Title

1

Husqvarna 530015773

SCREW-10-24 X 13/16

$

$

Not available

2

Husqvarna 530027529

COVER-FILTER

$

$

Not available

3

Husqvarna 530027530

AIR FILTER

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 530015766

SCREW
(Superseded to 530015849)

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 530027528

SPACER-CHOKE
(Superseded to 530015852)

$

$

Not available

6

Husqvarna 530015254

WASHER

$

$

Not available

7

Husqvarna 530027526

SHUTTER-CHOKE

$

$

Not available

8

Husqvarna 530027527

PLATE-AIR FILTER MTG.

$

$

Not available

9

Husqvarna 530069247

HOSE. FUEL

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 530010897

ASSY-FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 530035259

CARBURETOR (WA-199)
(Superseded to 545081825)

$

$

Not available

12

Husqvarna 530019156

GASKET-CARBURETOR

Note: Included in "Engine Gasket Kit" P/N 530 06 92-76

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530010807

USE 5300107-29
(Superseded to 530014347)

$9.49

$

In Stock, Qty 10

0

14

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530027549

ASSY-THROTTLE CABLE (SR
(Superseded to 530037497)

$

$

Not available

16

Husqvarna 530029188

Shroud & Tank Ass'y.

$

$

Not available

17

Husqvarna 530019154

GASKET-C'CASE/SHROUD

Note: Included in "Engine Gasket Kit" P/N 5300692-76

$

$

Not available

18

Husqvarna 530027593

VALVE-REED

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530010960

ASS'Y-CONNECTING ROD

Note: (Incl. Bearings)

$

$

Not available

21

Husqvarna 530010934

ASSY-CRANKSHAFT

$

$

Not available

22

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

23

Husqvarna 530015772

SCREW-10-24 X 1" (TAP.)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 530015780

SCREW 6-19X5/8 PLAS.PAN

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 530027546

INSULATOR-KILL SWITCH

$

$

Not available

26

Husqvarna 530027547

LEAD WIRE-KILL SWITCH

$

$

Not available

27

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.49

$

In Stock, only 4 left!

0

28

Husqvarna 530014016

Crankcase Ass'y.

Note: (Incl. #39, 40, 41, & 42)

$

$

Not available

29

Husqvarna 530027545

KILL SWITCH RAMP

$

$

Not available

30

Husqvarna 530027958

BUTTON-KILL SWITCH
(Superseded to 530038309)

$5.99

$

In Stock, Qty 8

0

31

Husqvarna 530027959

SPRING-KILL SWITCH

$

$

Not available

32

Husqvarna 530014015

ASSY-C'CASE & C'SHAFT
(Superseded to 530071705)

Note: (#38, 39, 40, 41, 42, & 43)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.49

$

In Stock, Qty 14

0

34

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 530027369

RING-PISTON (26.2CC)

$

$

Not available

36

Husqvarna 530019161

GASKET-CYLINDER
(Superseded to 530019267)

Note: Included in "Engine Gasket Kit" P/N 530 06 92-76

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 530069240

Piston Kit

Note: (Incl. #34, 35, & pin)

$

$

Not available

38

Husqvarna 530015788

SPACER-BEARING

$

$

Not available

39

Husqvarna 530032103

Inner Bearing

$

$

Not available

40

Husqvarna 530015787

RING-RETAINING

$

$

Not available

41

Husqvarna 530019158

SEAL-CRANKSHAFT

$

$

Not available

42

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

43

Husqvarna 530015789

RING-RETAINING (SHAFT)

$

$

Not available

44

Husqvarna 530015717

SCREW-10-16X9/16SLTD.PH

$

$

Not available

45

Husqvarna 530027781

GUARD-MUFFLER

$

$

Not available

46

Husqvarna 530069257

KIT-MUFFLER ASS'Y
(Superseded to 530069310)

$

$

Not available

47

Husqvarna 530024903

SPRING
(Superseded to 530036409)

$

$

Not available

48

Husqvarna 530012247

CYLINDER (26CC) (SERVIC

$

$

Not available

49

Husqvarna 530030077

Spark Plug

$

$

Not available

50

Husqvarna 530015239

SCREW-1/4-20 X 13/16

$

$

Not available

51

Husqvarna 530039134

MODULE-IGNITION

$

$

Not available

52

Husqvarna 530015776

SCREW 8-32 X 1-9/32

$

$

Not available

53

Husqvarna 530039136

ASSY-FLYWHEEL
(Superseded to 530039189)

$

$

Not available

54

Husqvarna 530027572

COUNTERWEIGHT FLYWL 26RLC
(Superseded to 530016030)

$

$

Not available

55

Husqvarna 530029189

HOUSING-FAN (ORANGE)

$

$

Not available

56

Husqvarna 530069291

KIT-STARTER PULLEY
(Superseded to 530071387)

Note: (Incl. #75)

$

$

Not available

57

Husqvarna 530027531

SPRING-STARTER
(Superseded to 545008015)

$7.99

$

In Stock, Qty 5

0

58

Husqvarna 530027569

HANDLE-STARTER

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 3 left!

0

60

Husqvarna 530014114

ASSY-PULLEY HSG (ORANGE
(Superseded to 530014009)

$

$

Not available

61

Husqvarna 530094189

WASHER-CLUTCH

$6.99

$

In Stock, Qty 7

0

62

Husqvarna 530069254

KIT-CLUTCH ASS'Y

$

$

Not available

63

Husqvarna 530015796

WASHER-BELLEVILLE

$

$

Not available

64

Husqvarna 530001733

NUT

$

$

Not available

65

Husqvarna 530014115

ASSY-CLUTCH HSG (ORANGE
(Superseded to 530014017)

$43.99

$

Usually ships in 3-10 days

0

66

Husqvarna 530015767

SCREW-10-24 X 1-3/8 (UN

$3.49

$

Usually ships in 3-10 days

0

67

Husqvarna 530027511

SPACER-CLUTCH

$14.99

$

Usually ships in 3-10 days

0

68

Husqvarna 530015770

Screw

$

$

Not available

69

Husqvarna 530015769

SCREW-10-24X1-3/8-TAPTI

$

$

Not available

70

Husqvarna 530015496

SCREW-10-16 X 1/2 HI-LO

$

$

Not available

71

Husqvarna 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

72

Husqvarna 530015768

LOCKNUT-HEX 10-24

$3.49

$

In Stock, Qty 10

0

73

Husqvarna 530069276

KIT-GASKET

Note: (Includes Ref No's 12, 17 & 36)

$

$

Not available

74

Husqvarna 952701612

Spark Arrestor Kit

$

$

Not available

75

Husqvarna 530015823

SCREW-6-19X9/32 PAN/SEM
(Superseded to 530016080)

$3.49

$

In Stock, Qty 20+

0

Husqvarna 530029190

Instruction Decal

$

$

Not available

Husqvarna 530029267

Shroud Decal

$

$

Not available
