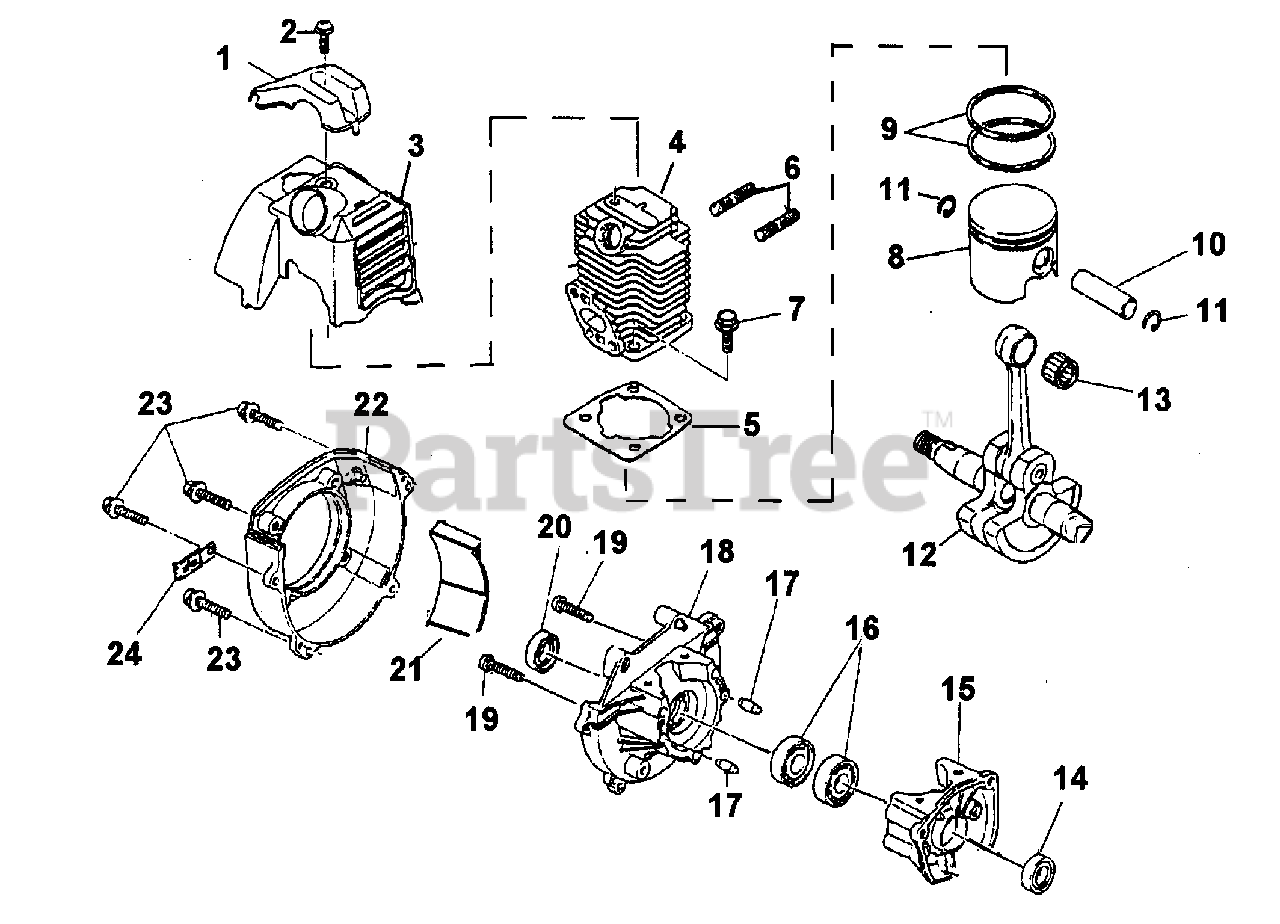

2600 H (UT-26150) - Green Machine Hedge Trimmer Engine Internal Parts Diagram

Hedge Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite 07722

GUARD, PLUG

$

$

Not available

2

Homelite 07723

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

3

Homelite 0797028

COVER, TOP

$

$

Not available

4

Homelite A07889

CYLINDER ASSY.

$

$

Currently unavailable

5

Homelite 07718

GASKET, CYLINDER

$

$

Not available

6

Homelite 07720

BOLT, STUD

$

$

Not available

7

Homelite 07719

BOLT & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

8

Homelite A07891

PISTON ASSY

$

$

Not available

9

Homelite 07733

RING, TOP

$

$

Not available

10

PIN, PISTON

$

$

Not available

11

CLIP, PISTON PIN

$

$

Not available

12

Homelite 0797029

CRANKSHAFT ASSY.

$

$

Not available

13

Homelite GM071410

BEARING, NEEDLE

$

$

Not available

14

Homelite 07708

OIL SEAL

$

$

Not available

15

Homelite 0797024

CASE, STARTER

$

$

Not available

16

Homelite GM071009

BEARING, BALL

$

$

Not available

17

Homelite 07709

PIN, DOWEL

$

$

Not available

18

Homelite 0797023

CASE, DRIVE

$

$

Not available

19

Homelite GM002805

SCREW, PAN HEAD

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

20

Homelite GM081502

OIL SEAL
(Superseded to 07708)

$

$

Not available

21

Homelite 0797025

NOSE

$

$

Currently unavailable

22

Homelite 0797026

CASE, FAN

$

$

Not available

23

Homelite 07714

BOLT & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

24

Homelite 0797027

CLAMP

$

$

Currently unavailable
