2600 H (UT-26150) - Green Machine Hedge Trimmer Muffler Parts Diagram

Hedge Trimmer

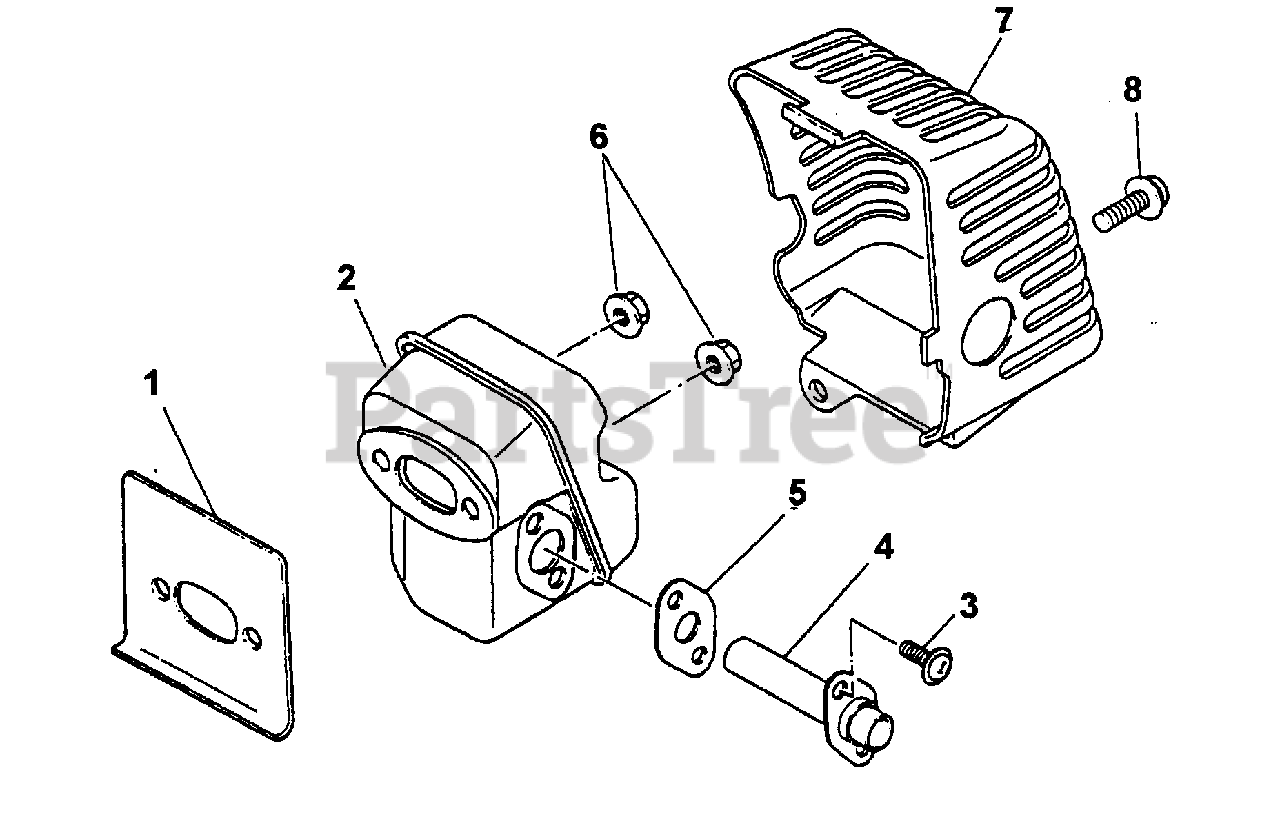

Muffler Parts Diagram

  • Title

1

Homelite 0797046

GASKET, MUFFLER

$

$

Not available

2

Homelite A07894

MUFFLER ASSEMBLY

$

$

Not available

3

Homelite 07761

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

4

Homelite 07758

PIPE, TAIL

$

$

Not available

5

Homelite 07759

GASKET, MUFFLER
(Superseded to PS07759)

$

$

Not available

6

Homelite GM050069

NUT, FLANGE

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

7

Homelite 07762

COVER, MUFFLER
(Superseded to PS07762)

$

$

Not available

8

Homelite 07763

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available
